ESS HX PRO

‹

  • ESS HX PRO

›

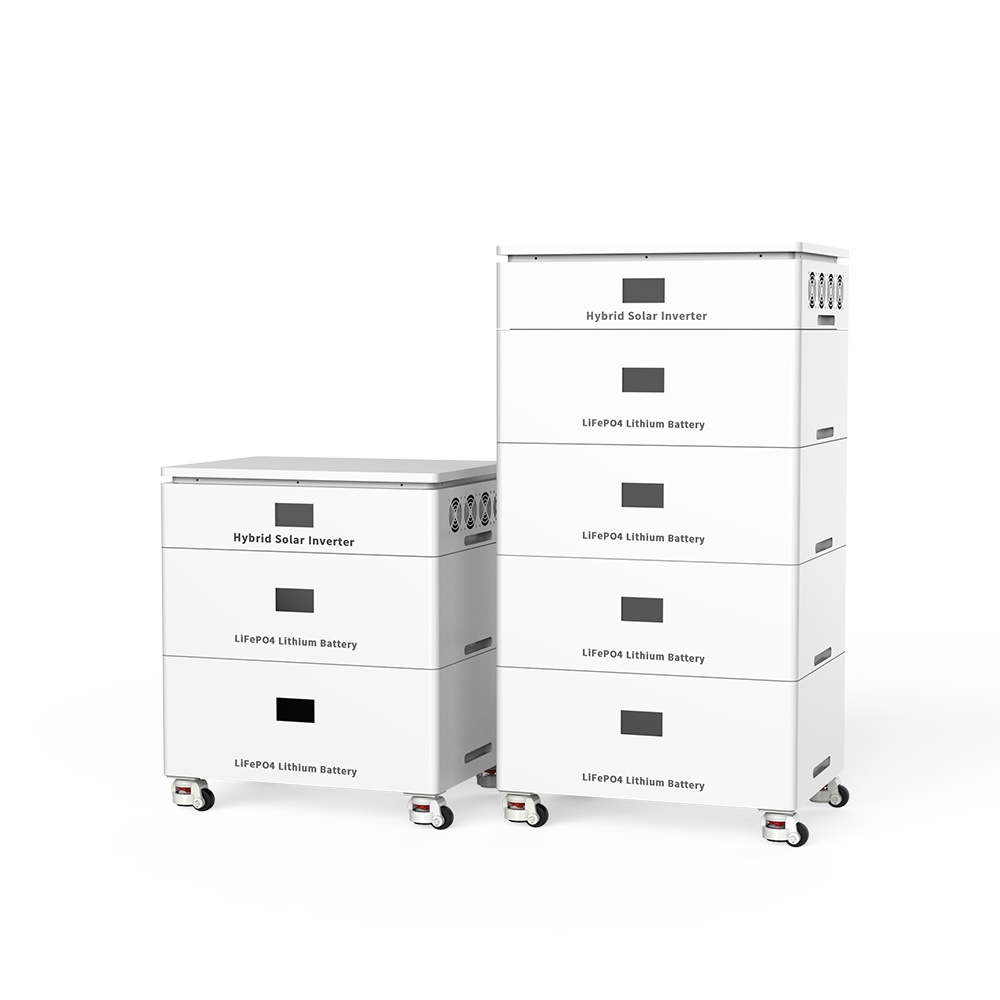

ESS HX PRO
Stackable Inverter Energy Storage All-in-One Machine

Recommended Products

Product Features

  • Integrated system with built-in 51.2V lithium battery module, 6-10kW hybrid solar inverter, and solar/AC charger.

  • Modular and stackable design for easy installation and expansion.

  • Built-in intelligent BMS with communication protocols.

  • LiFePO4 battery cycle life: charge/discharge cycles up to 5000 cycles.

  • Equipped with 120A MPPT solar charging and AC charging functions.

  • With all-round protection.

  • DOD 80%, 5-year warranty, 10+ years design life.

Parameters
Download
Get a Quote
ModelESS HX PRO 6KW/10KWHESS HX PRO 8KW/10KWHESS HX PRO 8KW/15KWHESS HX PRO 10KW/20KWH
Inverter



Inverter Model6KW/48V Hybrid8KW/48V Hybrid8KW/48V Hybrid10KW/48V Hybrid
Power6KW8KW8KW10KW
Output WaveformPure Sine WavePure Sine WavePure Sine WavePure Sine Wave
Lithium Battery
Battery Module51.2V100Ah*251.2V100Ah*251.2V100Ah*351.2V100Ah*4
Voltage51.2Vdc51.2Vdc51.2Vdc51.2Vdc
Capacity200AH200AH300AH400AH
Energy10.24KWh10.24KWh15.36KWh20.48KWh
Float Charging Voltage56.0Vdc56.0Vdc56.0Vdc56.0Vdc
Voltage Range40.0Vdc~58.4Vdc40.0Vdc~58.4Vdc40.0Vdc~58.4Vdc40.0Vdc~58.4Vdc
Max. Continuous Charging Current100A100A150A200A
Max. Continuous Discharging Current200A200A300A400A
Max. Pulse Discharging Current150A 1Sec.300A 1Sec.450A 1Sec.600A 1Sec.
Operating Temperature-10℃~+50℃-10℃~+50℃-10℃~+50℃-10℃~+50℃
Battery TypeLiFePO4
Input Voltage208/220/230/240; L+N+PE
Voltage Range90~280±3 (normal mode); 170~280±3 (UPS mode)
Rated Power6KW8KW8KW10KW
Peak Power12KW16KW16KW20KW
Output Voltage208/220/230/240
Frequency50Hz/60Hz (Auto)
AC Charging Current80A Max100A Max100A Max140A Max
PV Input
Rated Voltage360Vdc
Voltage Range120Vdc~450Vdc
Open Circuit Voltage500Vdc
PV Charging Current120A Max.
ProtectionOver-charge, Over-discharge, Over-current, Short-circuit, Over-temperature
Protection ClassIP20
DisplayLCD
Relative Humidity0~95%
Max. Operating Altitude≤1500m
Product Dimensions (mm)670x460x525670x460x525670x460x675670x460x825
Package Dimensions (mm)750x540x255*3750x540x255*3750x540x255*4750x540x255*5
Net Weight108Kg153Kg198Kg243Kg
Gross Weight118Kg166Kg214Kg262Kg
