SUN FX Series

‹

  • SUN FX Series

›

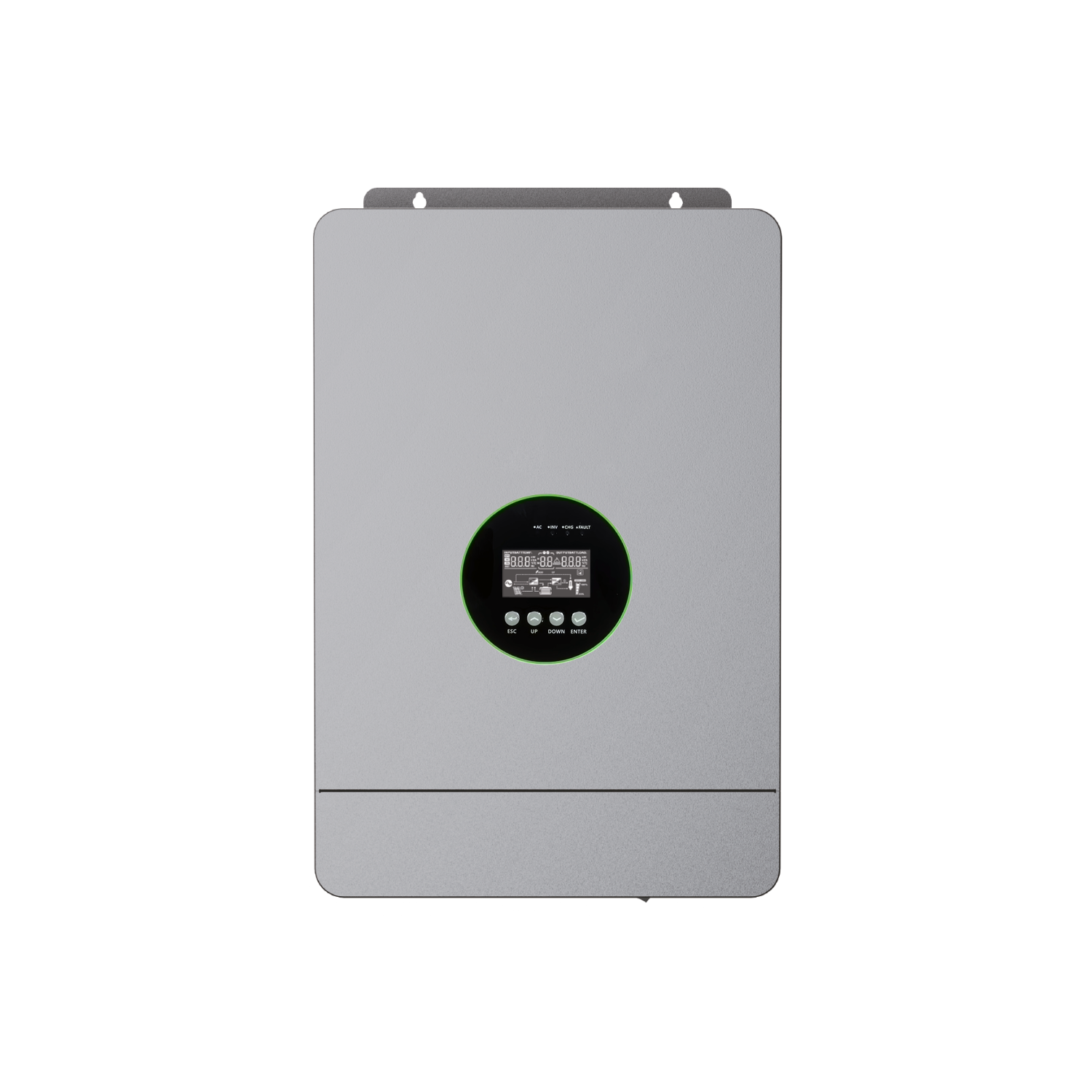

SUN FX Series
Off-grid solar inverter

Recommended Products

Product Features

This pure sine wave solar inverter
features a 1.0 output power factor,
supports Wi-Fi and GPRS for iOS and Android,
can operate without a battery,
has a built-in 100A MPPT solar charger,
a high PV input voltage range (120~450VDC)
, a built-in dustproof kit for harsh environments,
and an intelligent battery charging design to optimize battery life.



Parameters
Download
Get a Quote
modelSUN FX-3.5KWSUN FX-5.5KW
Rated power3500VA/3500W5500VA/5500W
enter
Voltage230VAC
Selectable voltage range170~280VAC (for personal computers)
90~280VAC (suitable for household appliances)
Frequency range50 Hz/60 Hz (automatic sensing)
Output
AC voltage regulation (battery mode)230VAC±5%
Surge power7000VA11000VA
Efficiency (peak) PV to INV97%
Efficiency (peak) battery to INV94%
Transmission time10 milliseconds (for personal computers); 20 milliseconds (for home appliances)
Batteries and AC chargers
Battery voltage24VDC48VDC
Floating charging voltage27VDC54VDC
Overcharge protection33VDC63VDC
Maximum charging current80A80A
Solar charger
Maximum photovoltaic array power5000W 6000W
MPPT range @ operating voltage120~450VDC
Maximum open-circuit voltage of photovoltaic array500VDC
Maximum charging current100A100A
Maximum efficiency98%
Physical
Dimensions, D*W*H (mm)440*310*110
Carton dimensions, DX W XH (mm)590*390*210
Net weight (kg)8.59.5
Gross weight (kg)9.510.5
Communication interfaceRS232/GPRS/WIFI
environment
humidity5% to 95% relative humidity (non-condensing)
Operating temperature-10℃~50℃
standard
Compliance and SecurityCE
