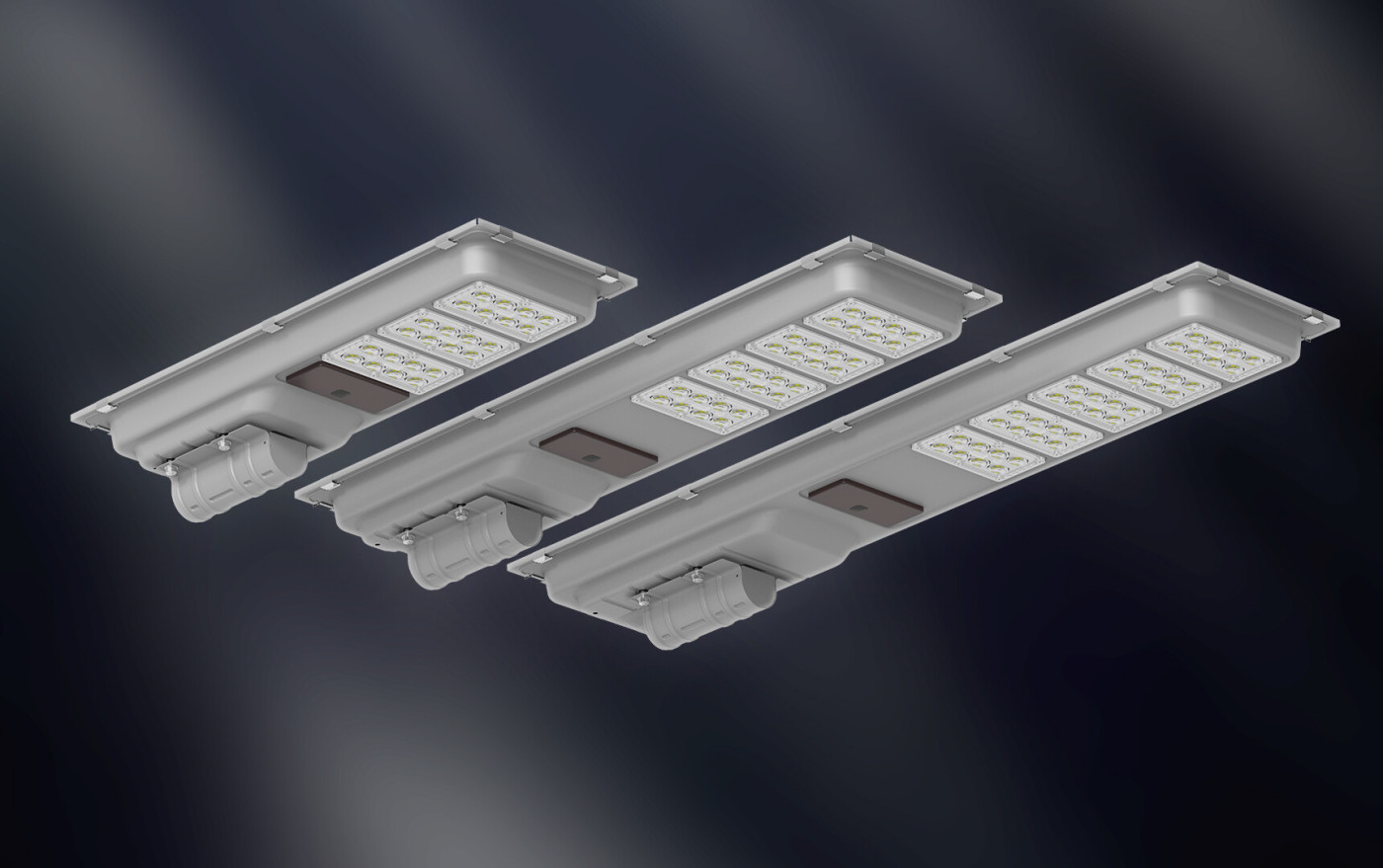

• QF-PSS-BD-024
QF-PSS-BD-024
Discover QF-PSS-BD-024 LED lighting fixture by QF Lighting, engineered for high efficiency and durability in modern commercial and industrial spaces.

LED SOLAR MASTLEUCHTE

IP65 waterproof rating, suitable for various lighting scenes:rural roads, municipal roads, highways, scenic spots,outdoorbasketball courts, parks,communities, etc.

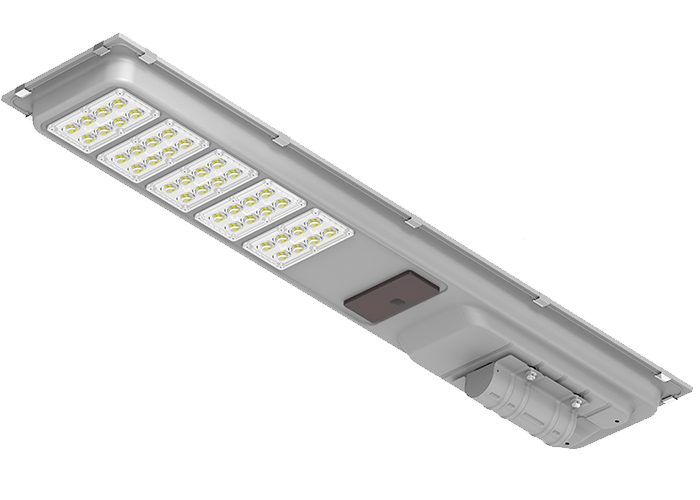

02_展示1-700x500_96PPi

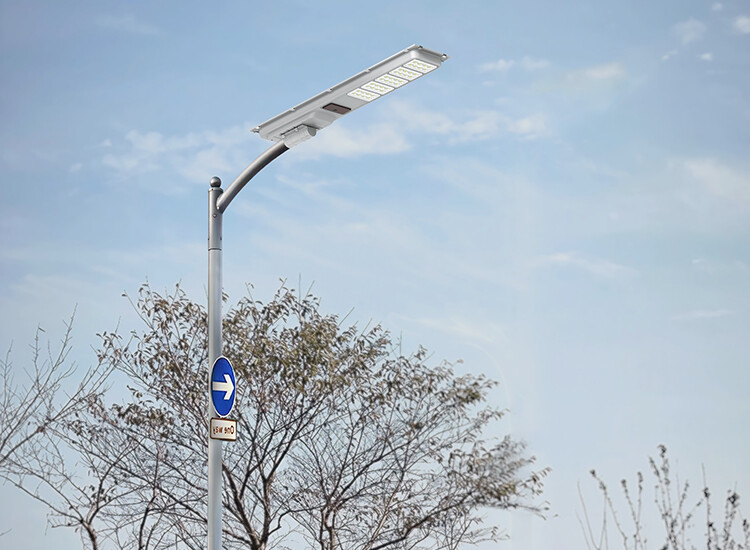

03_展示2-750x550_96PPi

Function & Lighting Behavior

The lights automatically turn on at dusk every day, with a lightingpower of12W(100%).When no one passes by after 15 secondsthe power drops to 2.4W(20%).When someone passes by, thepower of the light rises to 12W(100%), and drops to 2.4W(20%)15 seconds after the person leaves.



This working mode continuesuntil the light automatically turns off at dawn, and the lightautomatically turns on the charging mode for a new day.

LED SOLAR MASTLEUCHTE

Timing / Dimming / Light sensorMotion sensor optional

PoleMounted Roof Installation Wall Mounted.

ScreenShot_2026-03-24_095443_090

Function & Lighting Behavior



The lights automatically turn on at dusk every day, with a lightingpower of 25W (100%). When no one passes by after 15 seconds,the power drops to 5W(20%). When someone passes by, thepower of the light rises to 25W (100%), and drops to 5W(20%)15 seconds after the person leaves. This working mode continuesuntil the light automatically turns off at dawn, and the lightautomatically turns on the charging mode for a new day.

Product Features

Silver grey/sand black

Galvanized plate+PC Lens

20% POWER SAVING MODE

When the person leaves for 15 seconds thelightslowly darkens to 20% brightnessEnter power saving mode



100% ALL LIGHT PATTERN

When the human body enters the 120-degreerange, the light will automatically switch to fullbrightness mode with 100% brightness.

05

Detail Parameters

Product ModelQF-PSS-BD-024
Rated Power12W18W25W
Battery Specifications3.2V/30Ah3.2V/45Ah3.2V/60Ah
Charge Time6 Hours in scenarios with sufficient sunlight
Lighting Duration2~3 Days of endurance/power reserve in overcast or rainy conditions
Working ModeThe lights automatically turn on at dusk every day, with a lightingpower   of 12W(100%). When no one passes by after 15 secondsthe power drops to   2.4W(20%).When someone passes by, thepower of the light rises to 12W(100%),   and drops to 2.4W(20%)15 seconds after the person leaves. This working mode   continuesuntil the light automatically turns off at dawn, and the   lightautomatically turns on the charging mode for a new day.
SensorRadar Sensor
[Optional] Microwave Sensor
[Optional] Passive Infrared (PIR) Sensor
Control FunctionsLight Sensor;Time Control;Sensor Control
[Optional] Remote Control
Light BeadSMD LED 5050 96 PCSSMD LED 5050 128 PCSSMD LED 5050 160 PCS
Lamp Color Temperature3000K-6500K;Customizable color temperature
Reflector Angle70*140°
Luminous Efficacy180-200Lm/W
Color Render IndexRa:70
Main ColorSilver Grey/Sand Black
Working Temperature-10℃  ~﹢40℃
Product MaterialAluminum + PC Lens
Installation MethodWall-mounted ; Pole-clamp mounted; Pole-mounted
Nominal DiameterΦ60~80mm
Installation Height3~4m3~4m4~6m
Installation Spacing10~15m12~18m15~20m
Product Dimension674*244*123MM904*244*123MM1104*244*123MM
