Product Features

Top brand, Grade A cells, superior quality.
High density, small size and light weight.
Battery cycle life: 5000 cycles.
Long lifespan: 5-year warranty, 10+ years design life.
High discharge current, suitable for solar energy systems.
Intelligent BMS system optimizes performance.
Communication: RS485/CAN, compatible with solar inverters of different brands.

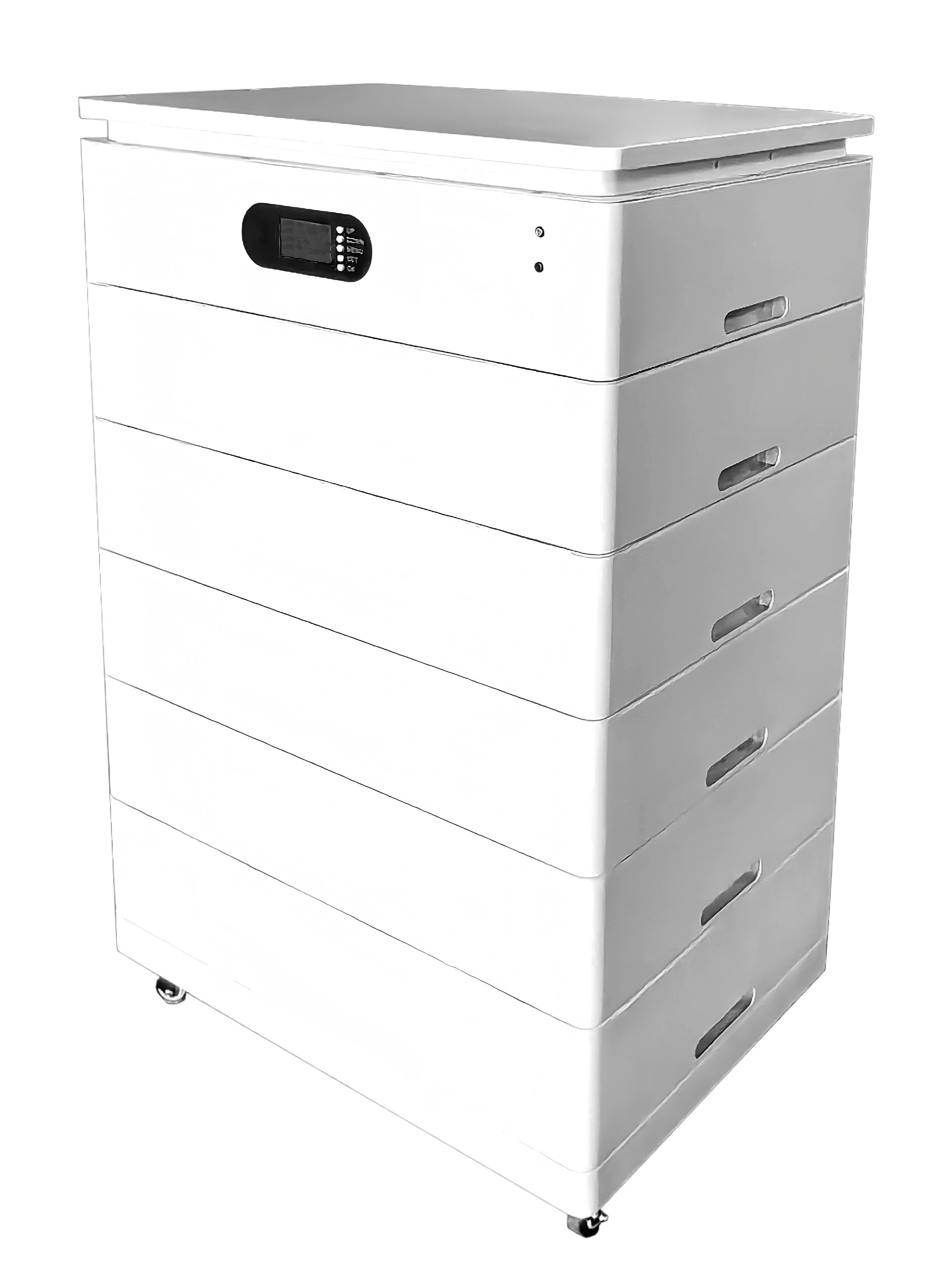

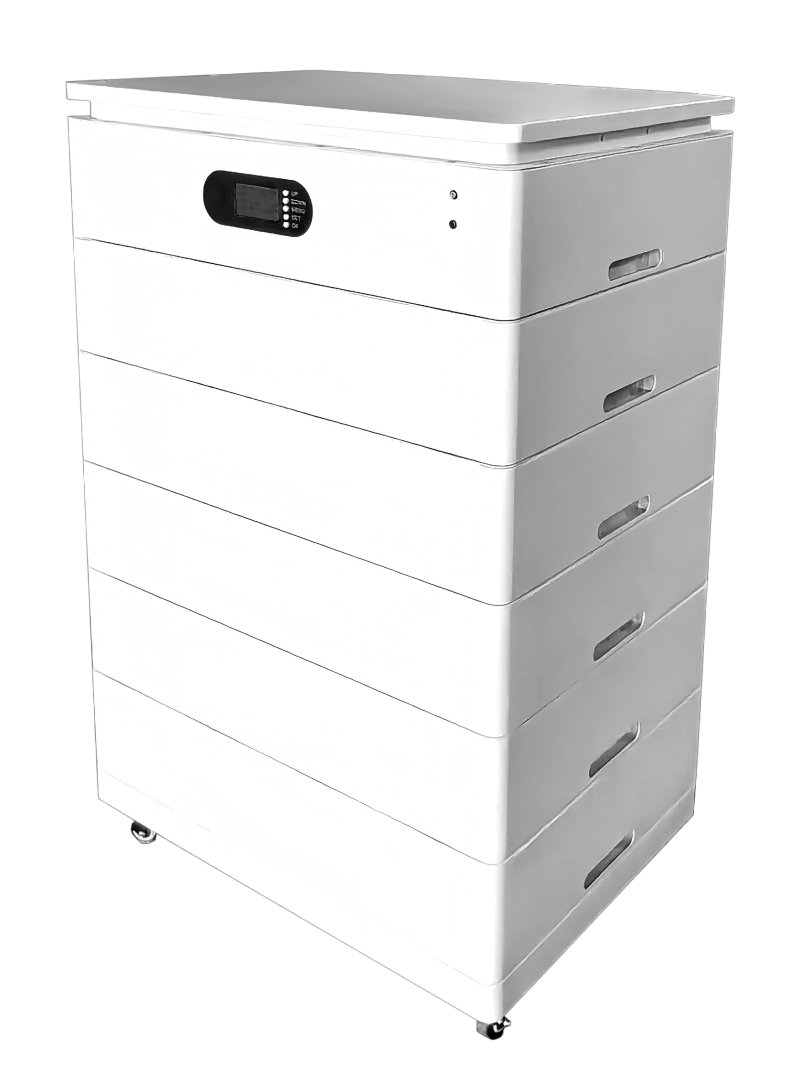

High-voltage lithium battery system with modular stackable design.
Intelligent BMS supports communication with hybrid inverters of the following brands.

Parameters

Download

Get a Quote

Model	HV PRO 10.2KWh	HV PRO 15.3KWh	HV PRO 20.4KWh	HV PRO 25.6KWh	HV PRO 30.7KWh	HV PRO 35.8KWh	HV PRO 40.9KWh	HV PRO 46.0KWh	HV PRO 51.2KWh
Design Style	Stackable
Battery Type	LiFePO4
Battery Module	51.2V100AH
Number of Modules	2	3	4	5	6	7	8	9	10
Capacity (KWh)	10.24KWh	15.36KWh	20.48KWh	25.60KWh	30.72KWh	35.84KWh	40.96KWh	46.08KWh	51.20KWh
Voltage (V)	102.4V	153.6V	204.8V	256.0V	307.2V	358.4V	409.6V	460.8V	512.0V
Voltage Window (V)	80~116.8V	120~175.2V	160~233.6V	200~292V	240~350.4V	280~408.8V	320~467.2V	360~525.6V	400~584.0V
Dimensions (L×W×H, mm)	700×500×525	700×500×675	700×500×825	700×500×975	700×500×1125	700×500×1275	700×500×1425	700×500×1575	700×500×1725
Net Weight (Kg)	118Kg	163Kg	208Kg	253Kg	298Kg	343Kg	388Kg	433Kg	478Kg
Rated Charge/Discharge Current (A)	50A
Max. Charge/Discharge Current (A)	100A
Terminal	M8
Storage Temperature	0℃~30℃
Storage Duration	6 months at 25℃
Safety Standards	UN38.3, MSDS
IP Rating	IP20
Display	LCD
Communication	CAN, RS485
Protection	Over-charge, Over-discharge, Over-current, Short-circuit, Over-temperature
Operating Temperature	-10℃~+50℃
Humidity	0~95% (Non-condensing)
Max. Altitude (m)	≤1500
