Product Features

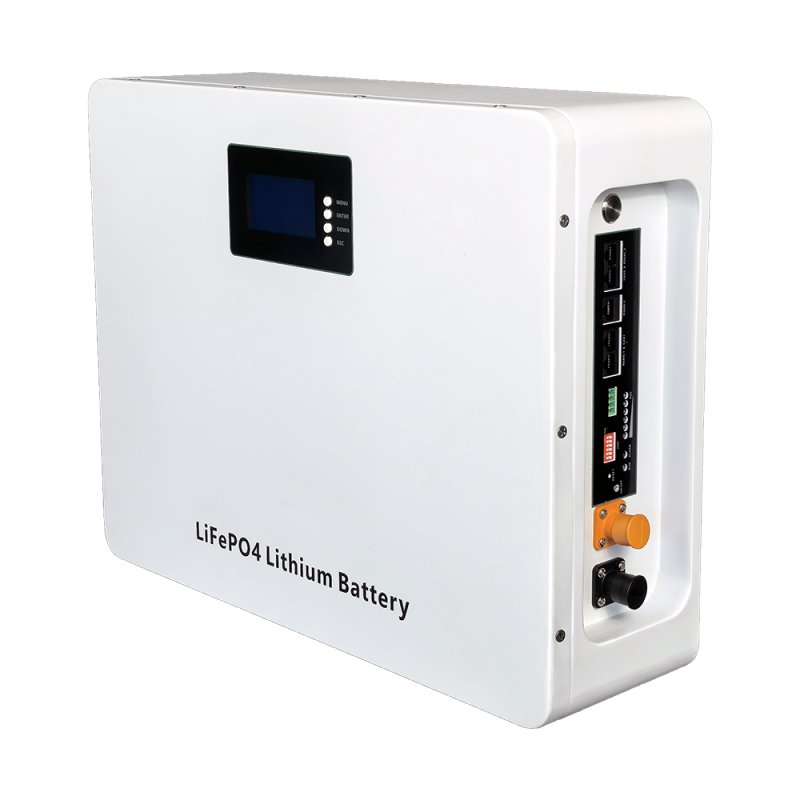

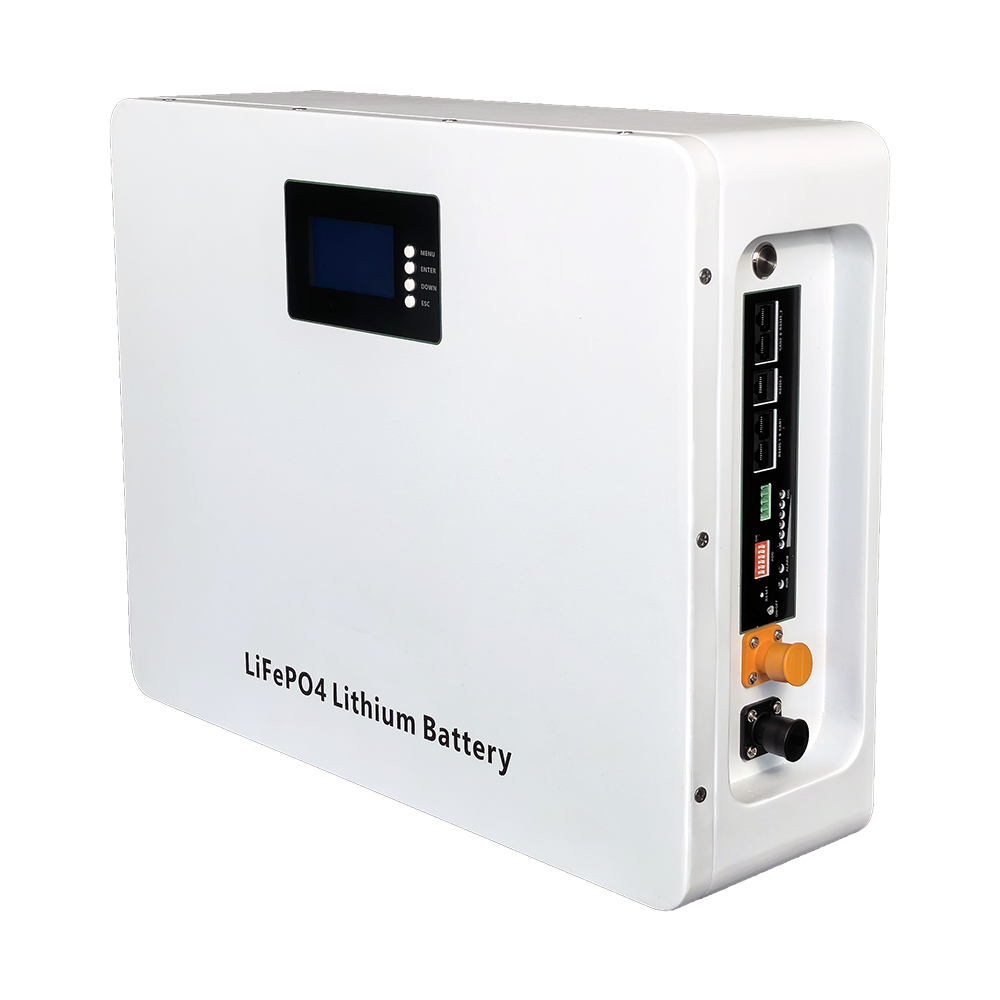

24V/48V LiFePO4 battery, wall-mounted design.
Adopts an intelligent BMS system for all-round protection.
Uses cells from renowned brands with reliable quality.
High density, small size and light weight.
Maximum discharge current up to 200A, suitable for inverters or solar systems.
LCD display, with optional communication ports (CAN/RS485/RS232).
Long-life design: battery cycle life up to 4000 cycles, 3-year warranty, over 10-year design life.
All-round protection and unattended operation.

Parameters

Download

Get a Quote

Model	HA-25.6V100Ah	HA-25.6V200Ah	HA-51.2V100Ah	HA-51.2V200Ah
Structure Type	Wall-mounted	Wall-mounted	Wall-mounted	Wall-mounted
Battery Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Nominal Battery Voltage (Vdc)	25.6V	25.6V	51.2V	51.2V
Nominal Capacity (25℃, 0.2C) (Ah)	100Ah	200Ah	100Ah	200Ah
Nominal Energy (25℃, 0.2C) (Wh)	2560Wh	5120Wh	5120Wh	10240Wh
Fast Charging Voltage (Vdc)	28.0V	28.0V	56.0V	56.0V
Operating Voltage Range (Vdc)	22.4~29.2V	22.4~29.2V	44.8~58.4V	44.8~58.4V
Max. Continuous Discharge Current (A)	100A	150A	100A	150A
Max. Pulse Discharge Current (A)	200A 30 Sec.	200A 30 Sec.	200A 30 Sec.	200A 30 Sec.
Max. Continuous Charge Current (A)	50A	100A	50A	100A
Terminal	M8
Storage Temperature	0℃~30℃
IP Rating	IP20
Storage Duration	6 months at 25℃
Safety Standards	UN38.3, IEC62619, CE
Display	LCD Display (Optional)
Communication	CAN/RS485/RS232 (Optional)
Protection	Over-charge, Over-discharge, Over-voltage, Short-circuit, Over-temperature
Operating Temperature	-10℃~+50℃
Humidity	0~95% (Non-condensing)
Altitude (m)	≤1500
Dimensions (L×W×H, Product, mm)	414x372x227mm	584x580x207mm	550x375x227mm	606x380x265mm
Dimensions (L×W×H, Package, mm)	496x469x275mm	668x666x255mm	612x422x259mm	672x452x302mm
Net Weight (NW Kg)	23.2Kg	72.6Kg	39.7Kg	76.0Kg
Gross Weight (GW Kg)	25.0Kg	76.7Kg	42.1Kg	83.0Kg
