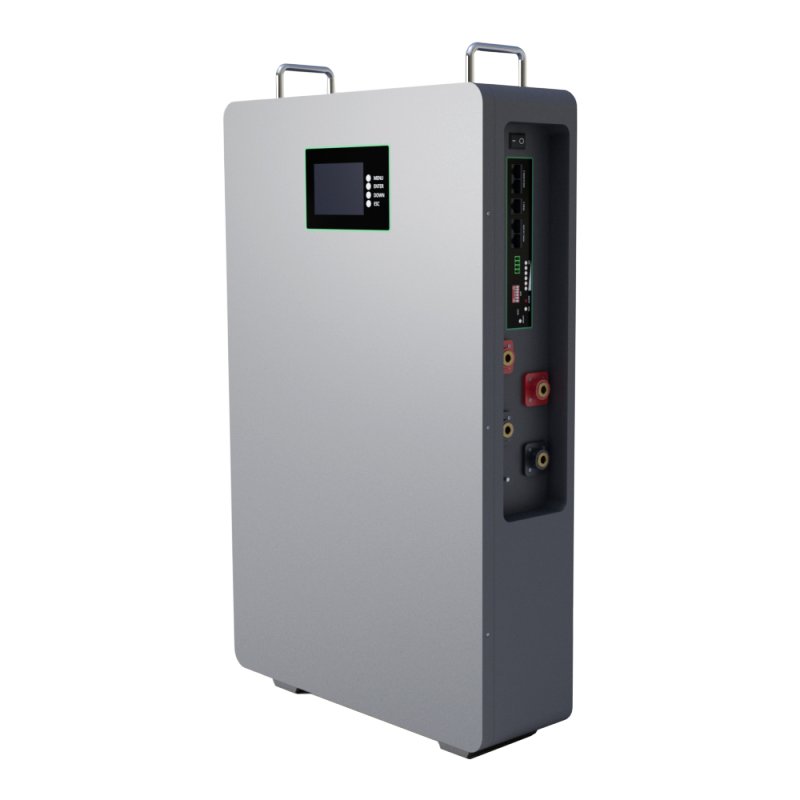

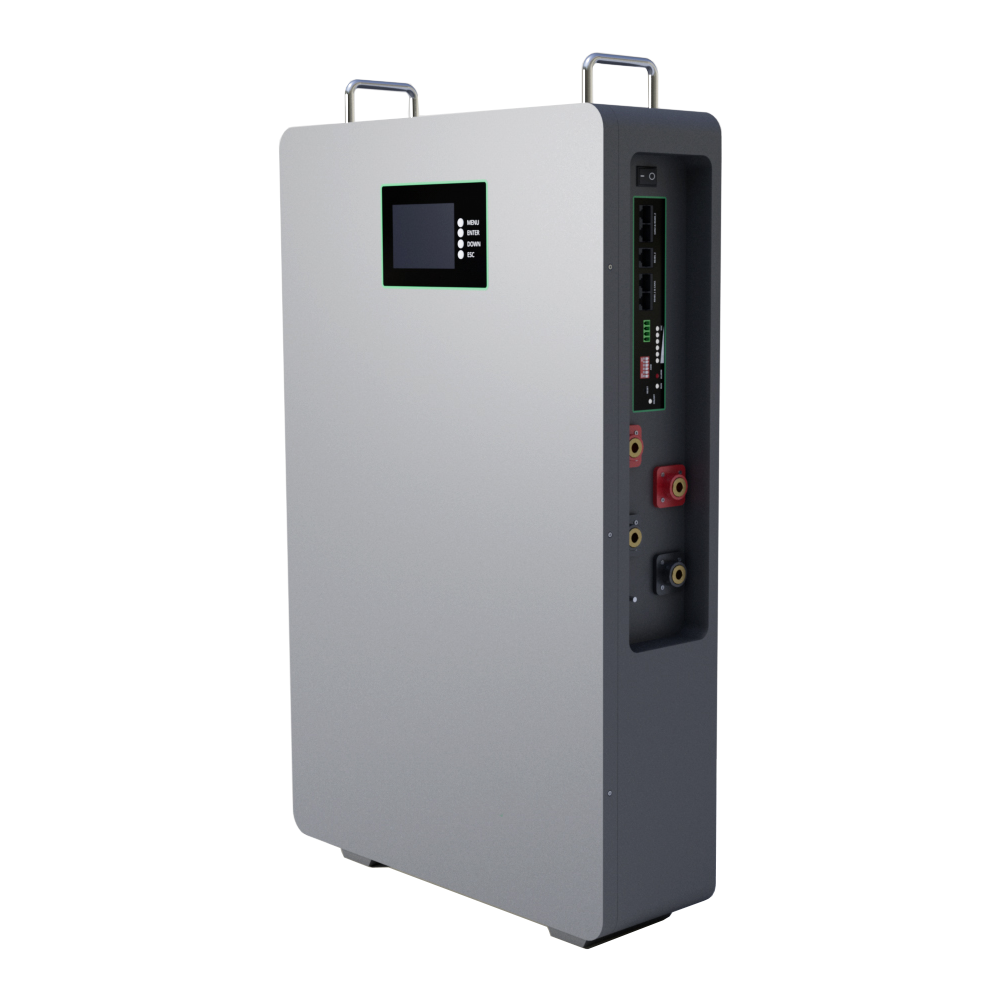

| Model | HA PLUS Series25.6V100Ah | HA PLUS Series25.6V200Ah | HA PLUS Series51.2V100AH | HA PLUS Series51.2V200AH |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Model | 25.6V100AH | 25.6V200AH | 51.2V100AH | 51.2V200AH |
| Nominal Capacity (25℃, 0.2C) | 2560Wh | 5120Wh | 5120Wh | 10.24KWh |
| Voltage Range (Vdc) | 22.4~29.2V | 22.4~29.2V | 44.8~58.4V | 44.8~58.4V |
| Fast Charging Voltage (Vdc) | 28.0V | 28.0V | 55.2V | 55.2V |
| Max. Continuous Discharge Current (A) | 100A | 150A | 100A | 150A |
| Max. Pulse Discharge Current (A) | 150A 1Sec | 200A 1Sec | 150A 1Sec | 200A 1Sec |
| Max. Continuous Charge Current (A) | 100A | 100A | 100A | 100A |
| Terminal | M8 |
| Storage Temperature | 0℃~30℃ |
| Storage Duration | 6 months at 25℃ |
| Safety Standards | UN38.3, MSDS, CE |
| IP Rating | IP20 |
| Communication | CAN/RS485/RS232Intelligent BMS supports communication with multiple solar inverters, e.g., Deye, Growatt, Voltronic, GOODWE, SMA, SOFAR, etc. |
| Protection | Over-charge, Over-discharge, Over-current, Short-circuit, Over-temperature |
| Noise (dB) | <40dB (1m) |
| Operating Temperature | Discharge: -10℃~+50℃, Charge: 0℃~+50℃ |
| Humidity | 0~95% (Non-condensing) |
| Altitude (m) | ≤1500 |
| Dimensions (L×W×H, Product, mm) | 611x420x224mm | 611x420x224mm | 611x420x224mm | 780x460x166mm |
| Dimensions (L×W×H, Package, mm) | 689x479x285 (UN carton) | 689x479x285 (UN carton) | 689x479x285 (UN carton) | 841x511x228 (UN carton) |
| Net Weight (NW Kg) | 25.0Kg | 42Kg | 44Kg | 69Kg |
| Gross Weight (GW Kg) | 29.0Kg | 46Kg | 49Kg | 74Kg |
