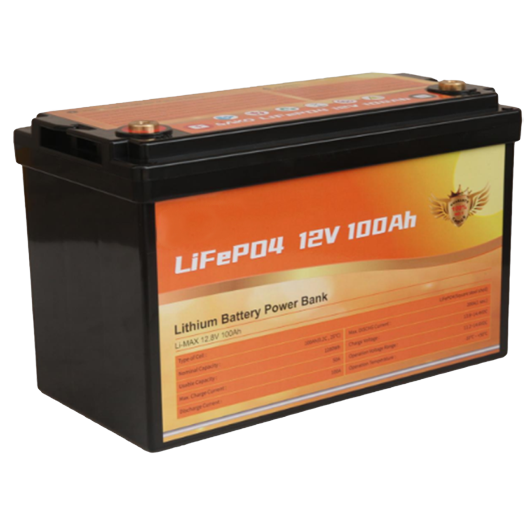

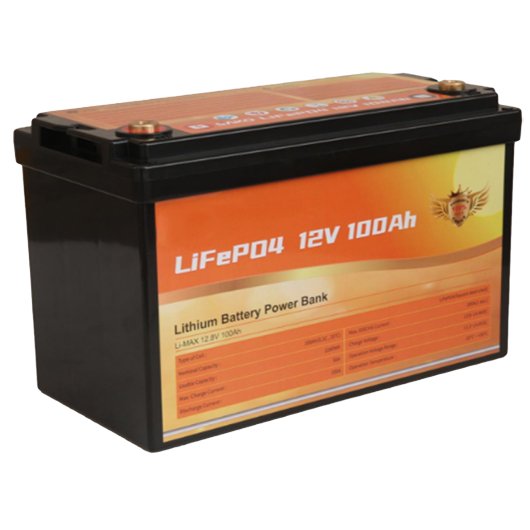

Li-ion Replacement Lead-acid Battery

Recommended Products

Product Features

  • 12V 24V LiFePO4 battery pack, safe and reliable.

  • Adopts an intelligent BMS system for all-round protection.

  • Grade A cells with solid and reliable quality.

  • High density, small size and light weight.

  • Maximum discharge current up to 200A, suitable for inverters or UPS systems.

  • Plastic housing, ideal replacement for lead-acid batteries.

  • Long-life design: battery cycle life up to 3000 cycles, 5+ years design life.

  • Supports series or parallel connection.

  • Bluetooth monitor is optional.

Parameters
Download
Get a Quote
ModelHD PLUS 12.8V50AHHD PLUS 12.8V100AHHD PLUS 12.8V150AHHD PLUS 12.8V200AHHD PLUS 25.6V100AHHD PLUS 25.6V150AH
Battery TypeLiFePO4LiFePO4LiFePO4LiFePO4LiFePO4LiFePO4
Nominal Battery Model12.8V50AH12.8V100AH12.8V150AH12.8V200AH25.6V100AH25.6V150AH
Nominal Capacity (25℃, 0.2C)640Wh1280Wh1920Wh2560Wh2560Wh3840Wh
Voltage Window (Vdc)11.2~14.6V11.2~14.6V11.2~14.6V11.2~14.6V22.4~29.2V22.4~29.2V
Recharge Voltage (Vdc)14.0V14.0V14.0V14.0V28.0V28.0V
Max. Continuous Discharge Current (A)50A100A100A200A100A150A
Max. Pulse Discharge Current (A)100A 1Sec.200A 1Sec.200A 1Sec.300A 1Sec.200A 1Sec.200A 1Sec.
Max. Continuous Charge Current (A)25A50A100A100A50A75A
TerminalM6M8
Storage Temperature0℃~30℃
Storage Duration6 months at 25℃
Safety StandardsUN38.3, MSDS, CE
IP RatingIP65
ProtectionOver-charge, Over-discharge, Over-current, Short-circuit, Over-temperature
Operating Temperature-10℃~+50℃
Humidity0~95% (Non-condensing)
Altitude (m)≤1500
Dimensions (L×W×H, Product, mm)231x145x211mm332x172x220mm484x170x240mm522x218x238mm522x218x238mm522x218x238mm
Dimensions (L×W×H, Package, mm)239x154x252mm342x181x265mm497x180x292mm532x252x268mm532x252x268mm532x252x268mm
Net Weight (NW Kg)5.5kg12.0kg15.0kgs27.0Kg27.0Kg30.0Kg
Gross Weight (GW Kg)6.0kg13.0kg16.0kg28.0Kg28.0Kg32.0Kg
