Product Features

Over 6000 charge-discharge cycles
Ultra-low standby power consumption as low as 4mA
Over-charge and over-discharge protection
Built-in intelligent BMS to keep the battery operating in optimal condition
Over-current and short-circuit protection
Automatic output cut-off after 30 days of no charge/discharge for safety; manual cut-off also available
Over-temperature protection
Stackable design for easy capacity expansion later
Compatible with multiple inverter brands for communication
Suitable for off-grid solar power systems
5-year warranty, 8–10 years designed service life
LiFePO4 battery for enhanced stability and safety

Parameters

Download

Get a Quote

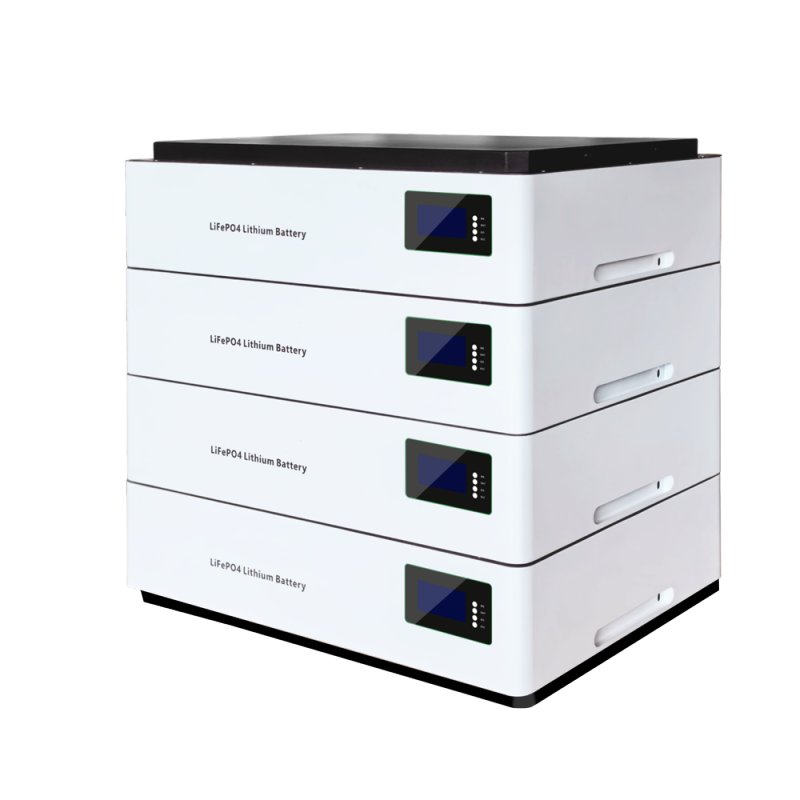

Model	HB PRO Series51.2V100Ah	HB PRO Series51.2V200Ah	HB PRO Series51.2V300Ah	HB PRO Series51.2V400Ah
Battery Type	LiFePO4
Number of Battery Modules (PCS)	51.2V100Ah*1	51.2V100Ah*2	51.2V100Ah*3	51.2V100Ah*4
Nominal Capacity (25℃, 0.2C)	5120Wh	10.24KWh	15.36KWh	20.48KWh
Nominal Voltage (Vdc)	44.8~58.4V	44.8~58.4V	44.8~58.4V	44.8~58.4V
Fast Charge Voltage (Vdc)	57.6V	57.6V	57.6V	57.6V
Low Voltage Alarm Voltage (Vdc)	46.8V	46.8V	46.8V	46.8V
1Max. Continuous Discharge Current (A)	100A	200A	300A	400A
Max. Pulse Discharge Current (A)	150A 1Sec.	300A 1Sec.	450A 1Sec.	600A 1Sec.
Max. Continuous Charge Current (A)	50	100	150	200
Terminal	Dual M8
Storage Temperature	0℃~30℃
Storage Temperature	6 months at 25℃
Safety Standards	UN38.3,MSDS
IP Rating	IP54
Communication	RS485/CAN (Compatible with inverter brands: Deye, Growatt, Voltronic, GOODWE, VICTRON, PYLONTEC, SMA, SOFAR)
Protection
Protection	Over-charge, Over-discharge, Over-current, Short-circuit, Over-temperature protection
Environment
Operating Temperature	-10℃~ +50℃
Humidity	0~95% (Non-condensing)
Altitude (m)	≤1500
Module Dimension
L×W×H (Module Dimension, mm)	70348595mm(7.5Kg)
L×W×H (Module Package Dimension, mm)	715497107mm(8.0Kg)
L×W×H (Modular Product Dimension, mm)	703485192（mm）*1
L×W×H (Modular Package Dimension, mm)	755537248 (UN carton)*1
Net Weight (NW Kg)	46.0Kg*1	46.0Kg*2	46.0Kg*3	46.0Kg*4
Gross Weight (GW Kg)	50.0Kg*1	50.0Kg*2	50.0Kg*3	50.0Kg*4
