HA PRO MAX

‹

  • HA PRO MAX

›

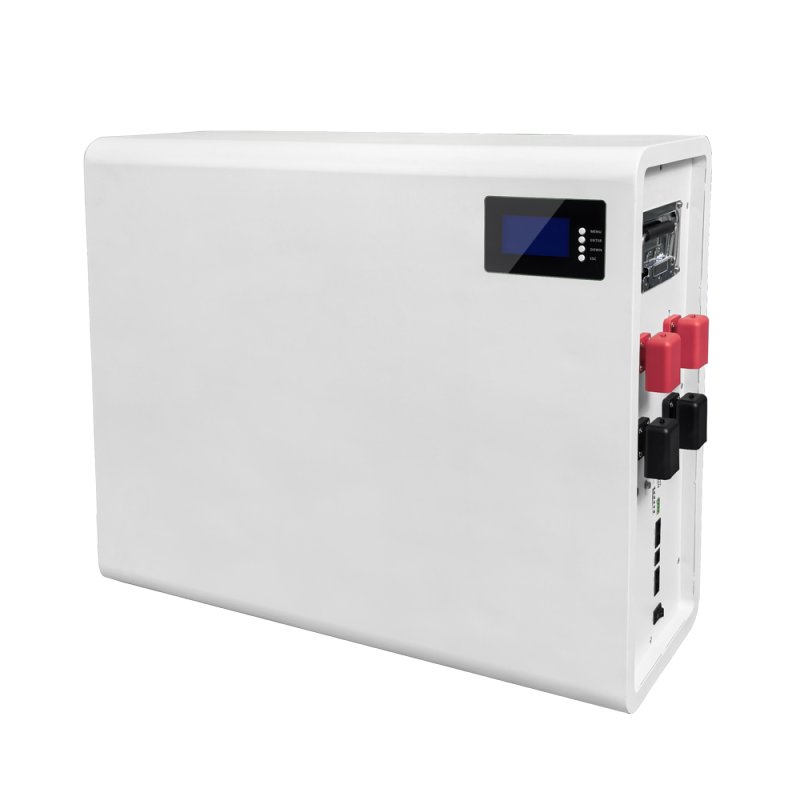

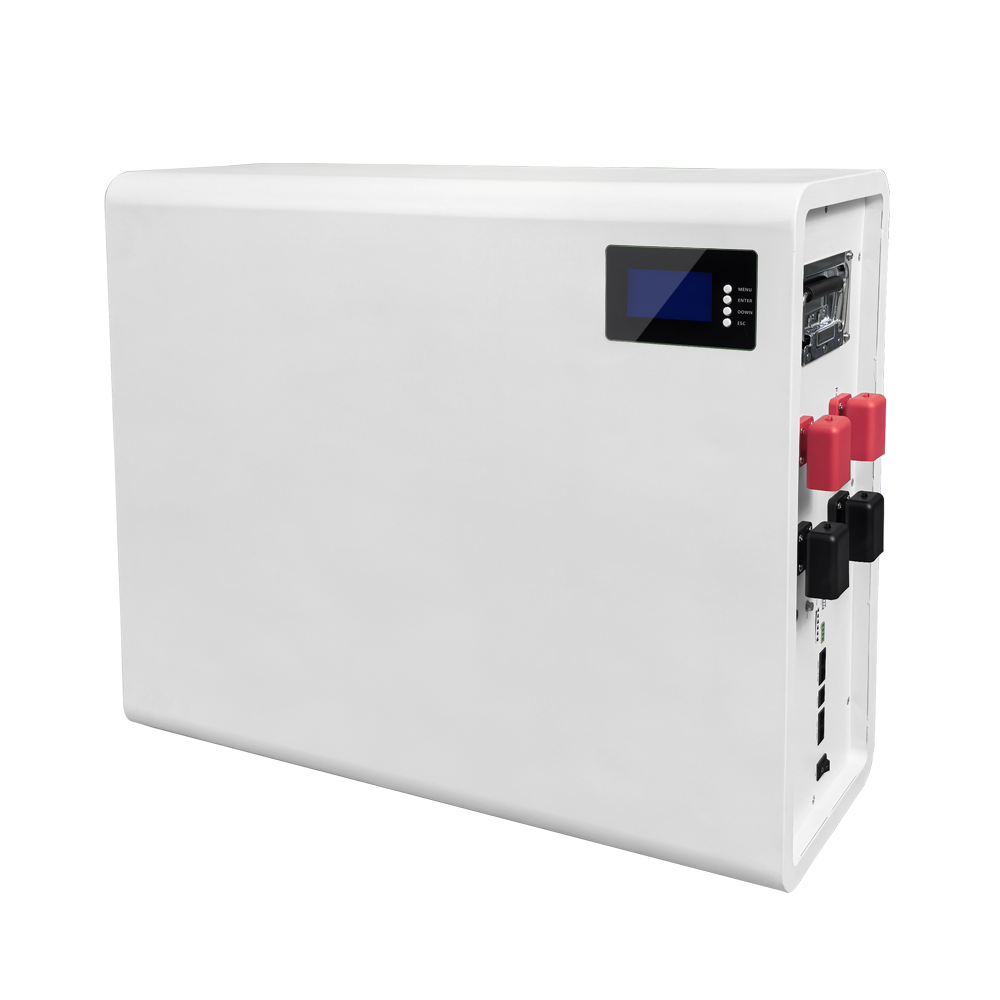

HA PRO MAX
Floor-standing Lithium Battery

Recommended Products

  • Floor-standing Lithium Battery

  • Model: HA PRO MAX

  • 24V / 48V LiFePO4, floor-standing design.

  • Adopts an intelligent BMS system for all-round protection.

  • Grade A battery cells, sturdy and reliable.

  • Bluetooth communication is optional.

  • 150A BMS, suitable for inverters or solar systems.

  • Full protection and unattended operation.

  • Long lifespan design with up to 5000 battery cycles.

  • 5-year warranty, designed for 10+ years of service life.

  • LED and RGB indicators display battery capacity.

Parameters
Download
Get a Quote
ModelHA PRO MAX 25.6V200AhHA PRO MAX 25.6V300AhHA PRO MAX 51.2V200AhHA PRO MAX 51.2V300Ah
Structure TypeFloor-standing
Battery TypeLiFePO4
Nominal Battery Voltage (Vdc)25.6V25.6V51.2V51.2V
Nominal Capacity (25℃, 0.2C) (Ah)200Ah300Ah200Ah300Ah
Nominal Capacity (25℃, 0.2C) (Wh)5120Wh7680Wh10240Wh15360Wh
Fast Charge Voltage (Vdc)28.0V28.0V56.0V56.0V
Operating Voltage Range (Vdc)22.4~29.2V22.4~29.2V44.8~58.4V44.8~58.4V
Max. Continuous Discharge Current (A)150A150A150A150A
Max. Pulse Discharge Current (A)200A (30Sec.)200A (30Sec.)200A (30Sec.)200A (30Sec.)
Max. Continuous Charge Current (A)100A100A100A100A
TerminalM8
Storage Temperature0°C~30°C
IP RatingIP20
Storage Duration6 months at 25°C
Safety StandardUN38.3, MSDS
DisplayLED
Communication Port (Optional)RS485/Bluetooth (Optional)
ProtectionOvercharge, Over-discharge, Over-current, Short-circuit, Overheat Protection
Operating Temperature-10°C~+50°C
Humidity0~95% (Non-condensing)
Max. Altitude (m)≤1500m
Product Dimensions (L×W×H, mm)568*734*188mm1000*734*188mm
Package Dimensions (L×W×H, mm)620*782*240mm1060*780*236mm
Net Weight (NW, Kg)76.6Kg80.0Kg142.3Kg153.0Kg
Gross Weight (GW, Kg)81.0Kg83.0Kg157.0Kg167.0Kg
