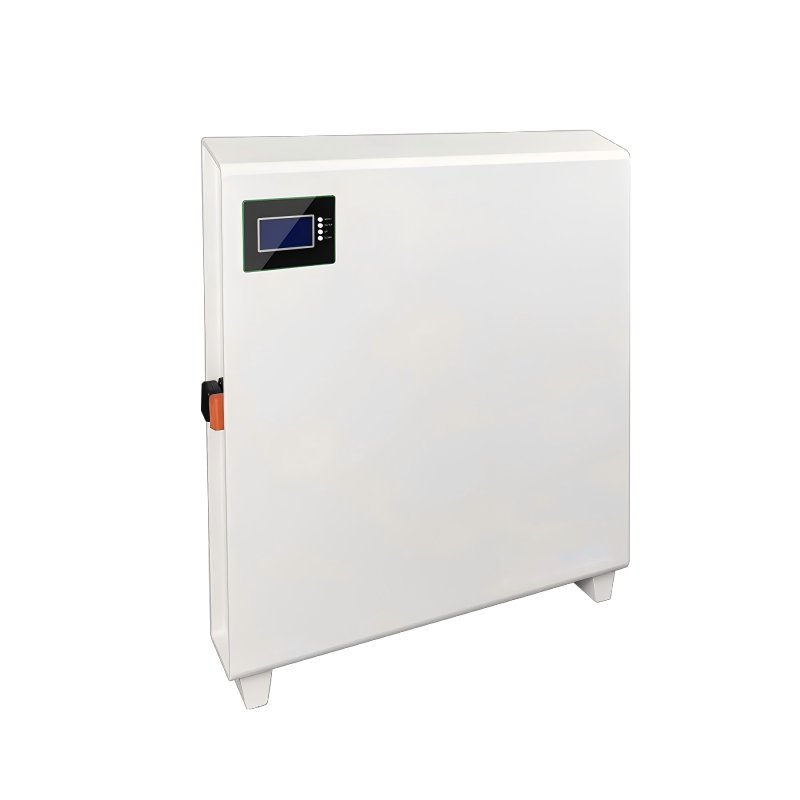

HA MAX series
High-quality Ultra-thin Lithium Battery

Recommended Products

Product Features

  • 200AH LiFePO4 Battery, Ultra-thin Battery Wall Design.

  • Built-in Intelligent BMS with Multiple Communication Protocols.

  • Adopts Brand-name Grade A Battery Cells, Sturdy and Reliable in Quality.

  • Multiple Communication Methods: CAN/RS485/Bluetooth.

  • LED and RGB Lights Display Battery Capacity.

  • 100A BMS, Suitable for Inverters or Solar Systems.

  • Full-range Protection and Unattended Operation.

  • 5-year warranty, 8–10 years designed service life

  • LiFePO4 battery for enhanced stability and safety

Parameters
Download
Get a Quote
SpecificationHA MAX Series 51.2V200Ah
Structure TypePower Wall Design
Battery TypeLiFePO4
Nominal Battery Voltage (Vdc)51.2V
Nominal Capacity (25℃, 0.2C) (Ah)200Ah
Nominal Capacity (25℃, 0.2C) (Wh)10240Wh
Fast Charge Voltage (Vdc)56.0V
Operating Voltage Range (Vdc)44.8V ~ 58.4V
Max Continuous Discharge Current (A)100A
Max Pulse Discharge Current (A)150A (1 Sec.)
Max Continuous Charge Current (A)100A
TerminalM8
Storage Temperature-20℃ ~ +30℃
IP RatingIP20
Storage Duration6 months at 25℃
Safety StandardsUN38.3, MSDS, CE, CB, IEC
DisplayLCD
Communication PortsCAN/RS485/WiFi/Bluetooth, built-in intelligent BMS with multiple communication protocols, compatible with solar inverters of brands like Deye, Growatt, Voltronic, GOODWE, SMA, SOFAR, Invt, etc.
ProtectionOvercharge Protection, Overdischarge Protection, Overcurrent Protection, Short-circuit Protection, Overvoltage Protection
Operating Temperature-10℃ ~ +50℃ (discharge), 0℃ ~ +50℃ (charge)
Humidity0~95% (non-condensing)
Max Altitude (m)≤1500m
Dimensions (L×W×H, Product, mm)715650120mm
Dimensions (L×W×H, Package, mm)835662205mm (UN wooden box)
Net Weight (NW, Kg)64Kg
Gross Weight (GW, Kg)80Kg
