HB PRO MAX

‹

  • HB PRO MAX

›

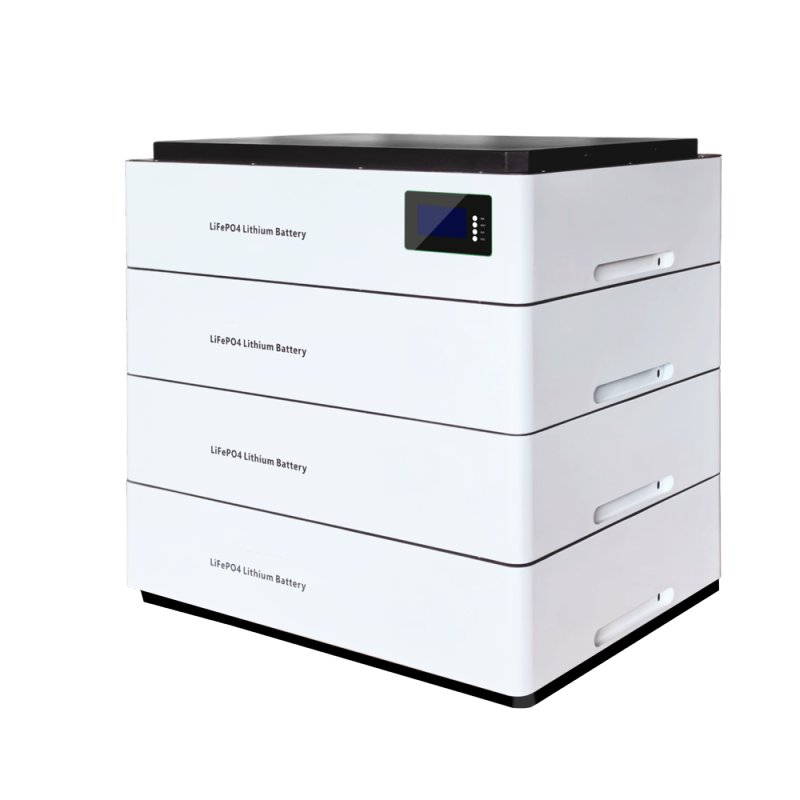

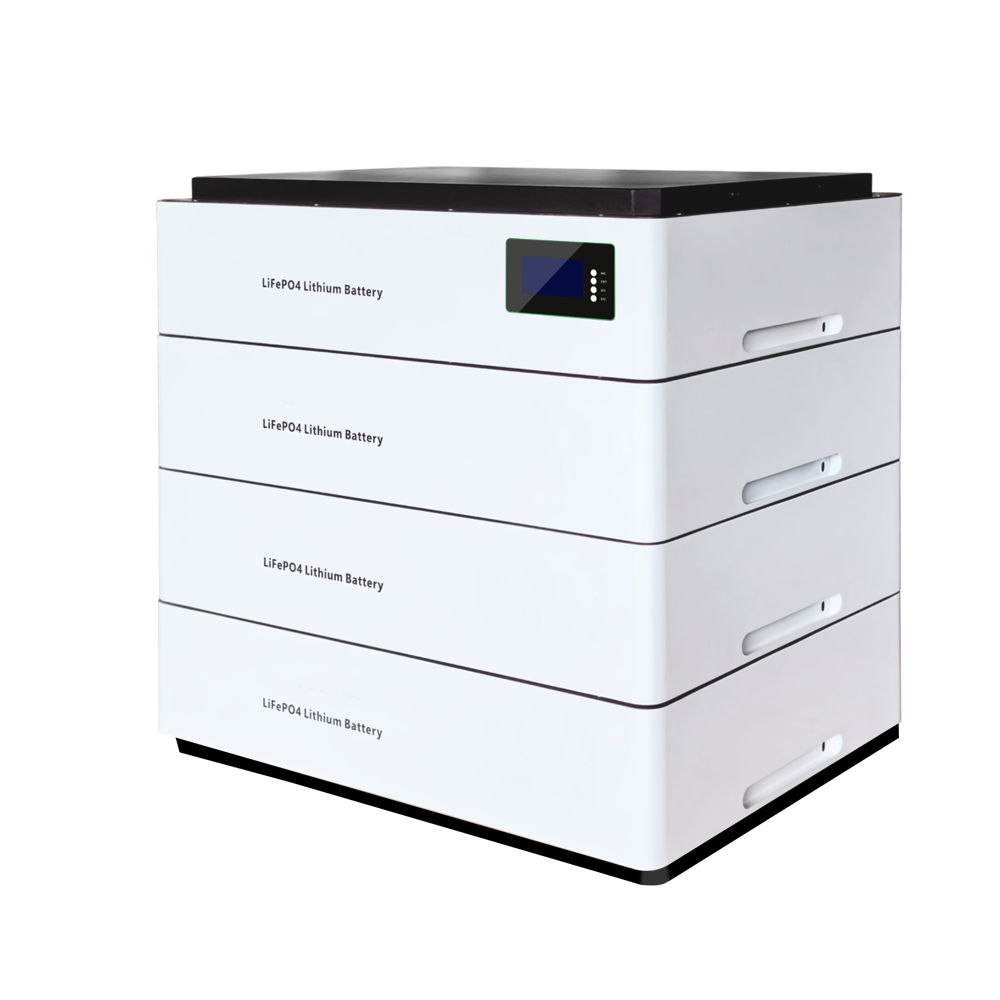

HB PRO MAX
High-Voltage Stackable Lithium Battery

Recommended Products

  • Brand-grade A quality battery cells

  • Excellent performance intelligent BMS system

  • High energy density, small size, light weight

  • Communication: RS485/CAN, compatible with solar inverters of various brands

  • 6000 cycle life

  • All-round protection

  • Long service life: 5-year warranty, designed for over 10 years lifespan

  • Modular, stackable design high-voltage lithium battery system

  • Supports high-current discharge, suitable for solar energy systems

  • Intelligent BMS supports communication with hybrid inverters of multiple brands

Parameters
Download
Get a Quote
ItemHB PRO MAX10.2KWhHB PRO MAX15.3KWhHB PRO MAX
20.4KWh		HB PRO MAX
25.6KWh		HB PRO MAX
30.7KWh		HB PRO MAX
35.8KWh		HB PRO MAX
40.9KWh		HB PRO MAX46.0KWhHB PRO MAX
51.2KWh
Model
Battery TypeLiFe PO4
Battery Module
51.2V/100Ah
Number of Modules2345678910
Nominal Capacity (25℃, 0.2C)10.24KWh15.36KWh20.48KWh25.6KWh30.72KWh35.84KWh40.96KWh46.08KWh51.2KWh
Nominal Voltage (DC)102.4V153.6V204.8V256.0V307.2V358.4V409.6V460.8V512.0V
Voltage Window (DC)89.6~ 116.8V134.4~ 175.2V179.2~233.6V224.0~292.0V268.8~350.4V313.6~408.8V358.4~467.2V403.2~525.6V448.0~ 584.0V
Dimensions (W/D/H)703*490*611mm703*490*803mm703*490*995mm703*490*1187mm703*490*1379mm703*490*1571mm703*490*1763mm703*490*1955mm703*490*2147mm
Weight (NW Kg)123Kg172Kg221Kg266Kg315Kg368Kg417Kg466Kg515Kg
Nominal Charge/Discharge Current50A
Max. Charge/Discharge Current100A
TerminalDual M8
Storage Temperature0℃~30℃
Storage Duration6 months at 25℃
Safety StandardsUN38.3,MSDS,IEC62619,EN62619,EN61000
IP RatingIP54
CommunicationRS485,CAN
Protection
ProtectionOver-charge protection, Over-discharge protection, Over-current protection, Short-circuit protection, Over-temperature protection
Environment
Operating Temperature-10℃~+50℃
Humidity0~95%（Non-condensing）
