ESS HX PRO

‹

  • ESS HX PRO

›

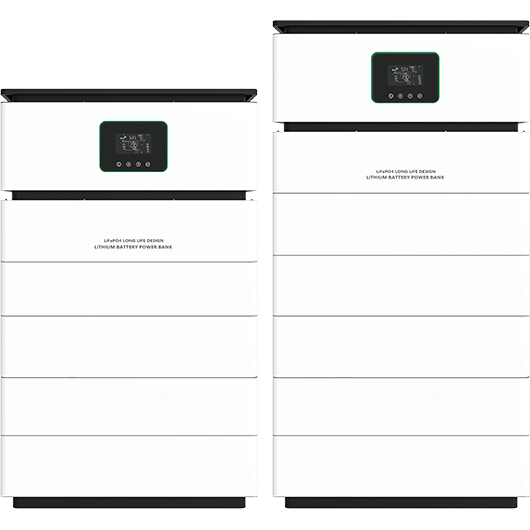

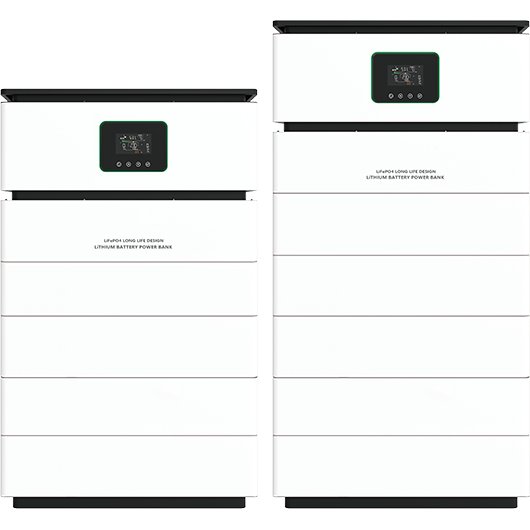

ESS HX PRO
Solar Inverter Energy Storage System

Recommended Products

Product Features

  • All-in-one system with built-in 48V lithium battery modules, 6kW hybrid solar inverter, and solar/AC charger.

  • LiFePO4 battery with up to 6000 charge-discharge cycles lifespan.

  • Features 120A MPPT solar charging and AC charging functions.

  • Modular and stackable design for easy installation and expansion.

  • Comprehensive protection functions.

  • Built-in intelligent BMS with communication protocols.

  • 80% DOD, 5-year warranty, and over 10-year design life.

  • 5-year warranty.

Parameters
Download
Get a Quote
规范 (Item)ESS HX PRO 6KW/5KWHESS HX PRO 6KW/10KWHESS HX PRO 6KW/15KWHESS HX PRO 6KW/20KWH
Inverter/Charger
Inverter Type6KW/48V6KW/48V6KW/48V6KW/48V
Rated Output Power6KW6KW6KW6KW
Output Voltage WaveformPure Sine WavePure Sine WavePure Sine WavePure Sine Wave
Output Voltage230VAC 50Hz230VAC 50Hz230VAC 50Hz230VAC 50Hz
Low DC Alarm Voltage45.8Vdc45.8Vdc45.8Vdc45.8Vdc
Low DC Cut-off Voltage44.8Vdc44.8Vdc44.8Vdc44.8Vdc
DC Low Voltage Recovery Voltage46.8Vdc46.8Vdc46.8Vdc46.8Vdc
Max. Total Charging Current (Grid + Solar)120A Max.120A Max.120A Max.120A Max.
Bulk Charging Voltage57.6Vdc57.6Vdc57.6Vdc57.6Vdc
Float Charging Voltage56.0Vdc56.0Vdc56.0Vdc56.0Vdc
LiFePO4 Battery
Standard Battery Module51.2V100Ah *151.2V100Ah *251.2V100Ah *351.2V100Ah *4
Nominal Capacity (25℃, 0.2C)5.12KWh10.24KWh15.36KWh20.48KWh
Nominal Battery Voltage51.2Vdc51.2Vdc51.2Vdc51.2Vdc
Rated Capacity100Ah200Ah300Ah400Ah
Max. Pulse Discharge Current150A 1Sec.300A 1Sec.450A 1Sec.600A 1Sec.
Max. Continuous Discharge Current50A100A150A200A
Operating Voltage Range44.8Vdc ~ 58.4Vdc44.8Vdc ~ 58.4Vdc44.8Vdc ~ 58.4Vdc44.8Vdc ~ 58.4Vdc
Operating Temperature-10℃ ~ +50℃-10℃ ~ +50℃-10℃ ~ +50℃-10℃ ~ +50℃
AC Input
Rated Input Voltage230VAC 50Hz
Low Voltage Transfer Voltage170Vac±7% (UPS), 90Vac±7% (Home Appliances)
Low Voltage Recovery Voltage180Vac±7% (UPS), 100Vac±7% (Home Appliances)
High Voltage Transfer Voltage280Vac±7%
High Voltage Recovery Voltage270Vac±7%
Max. AC Input Voltage300Vac
Rated Input Frequency50Hz/60Hz (Auto-detection)
Max. AC Charging Current120A Max.
Solar Input
Rated PV Voltage360Vdc
PV Array MPPT Voltage Range120Vdc ~ 450Vdc
Max. PV Array Open Circuit Voltage500Vdc
Max. Solar Charging Current120A Max.
Protection
Protection FunctionsOver-charge, Over-discharge, Over-current, Short-circuit, Over-temperature
Environment
Noise (dB)<40dB (1m) @ <30℃
Operating Temperature-10℃ ~ +50℃
Humidity0~95% (Non-condensing)
Max. Altitude (m)≤1500
Others
Efficiency92.00%
Warranty5 years
