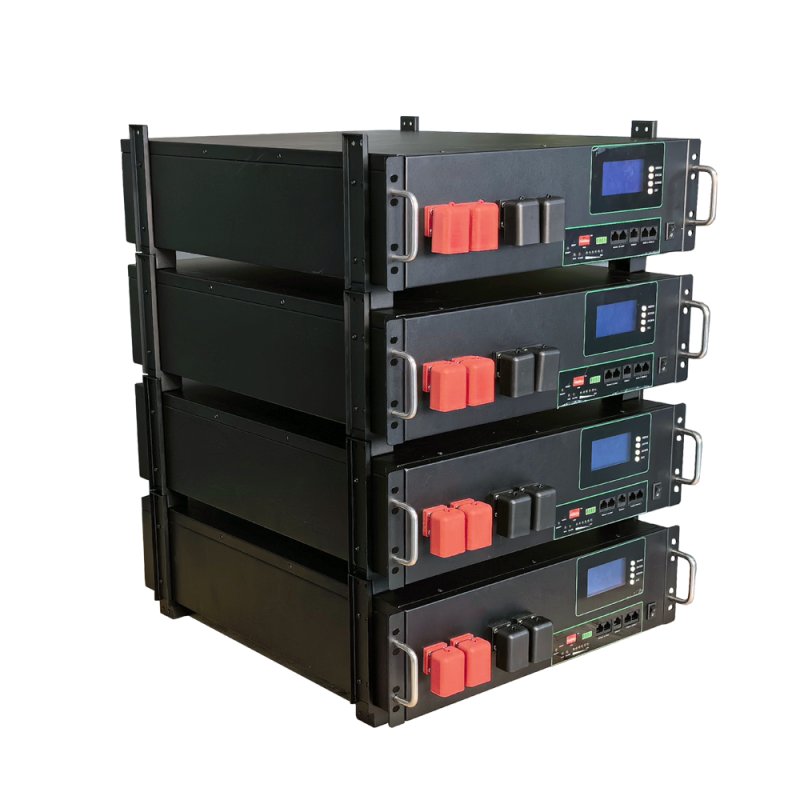

| Model | HC PLuS 51.2V100AH | HC PLuS 51.2V200AH |
| Battery Type |
|
| Nominal Battery Voltage (Vdc) | 51.2V | 51.2V |
| Nominal Capacity (25℃, 0.2C) (WH) | 5120WH | 10240WH |
| Float Charge Voltage (Vdc) | 56.0V | 56.0V |
| Operating Voltage Range (Vdc) | 44.8~57.6V | 44.8~57.6V |
| Max. Continuous Discharge Current (A) | 100A | 150A |
| Max. Pulse Discharge Current (A) | 200A 30 Sec. | 200A 30 Sec. |
| Max. Continuous Charge Current (A) | 50A | 100A |
| Structure Type | 4U |
| Terminal | M6 |
| Storage Temperature | 0℃~30℃ |
| IP Rating | IP 20 |
| Storage Duration | 6 months at 25℃ |
| Safety Standards | UN38.3,IEC62619,CE |
| Display | LCD Display (Optional) |
| Communication | CAN/RS485/RS232 (Optional) |
| Connection | 1PC BMS control system supports up to 32 parallel or series modules. If more connections are needed, additional BMS systems can be added. |
| Protection |
| Protection | Over-charge protection, Over-discharge protection, Over-current protection, Short-circuit protection, Over-temperature protection |
| Environment |
| Operating Temperature | -10℃~ +50℃ |
| Humidity | 0~95% (Non-condensing) |
| Altitude (m) | ≤1500 |
| Dimension |
| L×W×H (Product Dimension) | 575*440*176mm | 575*440*176mm |
| L×W×H (Package Dimension) | 624*552*240mm | 624*552*240mm |
| Weight (NW Kg) | 48kgs | 60kgs |
| Weight (GW Kg) | 51kgs | 62kgs |
