HA MAX

HA MAX

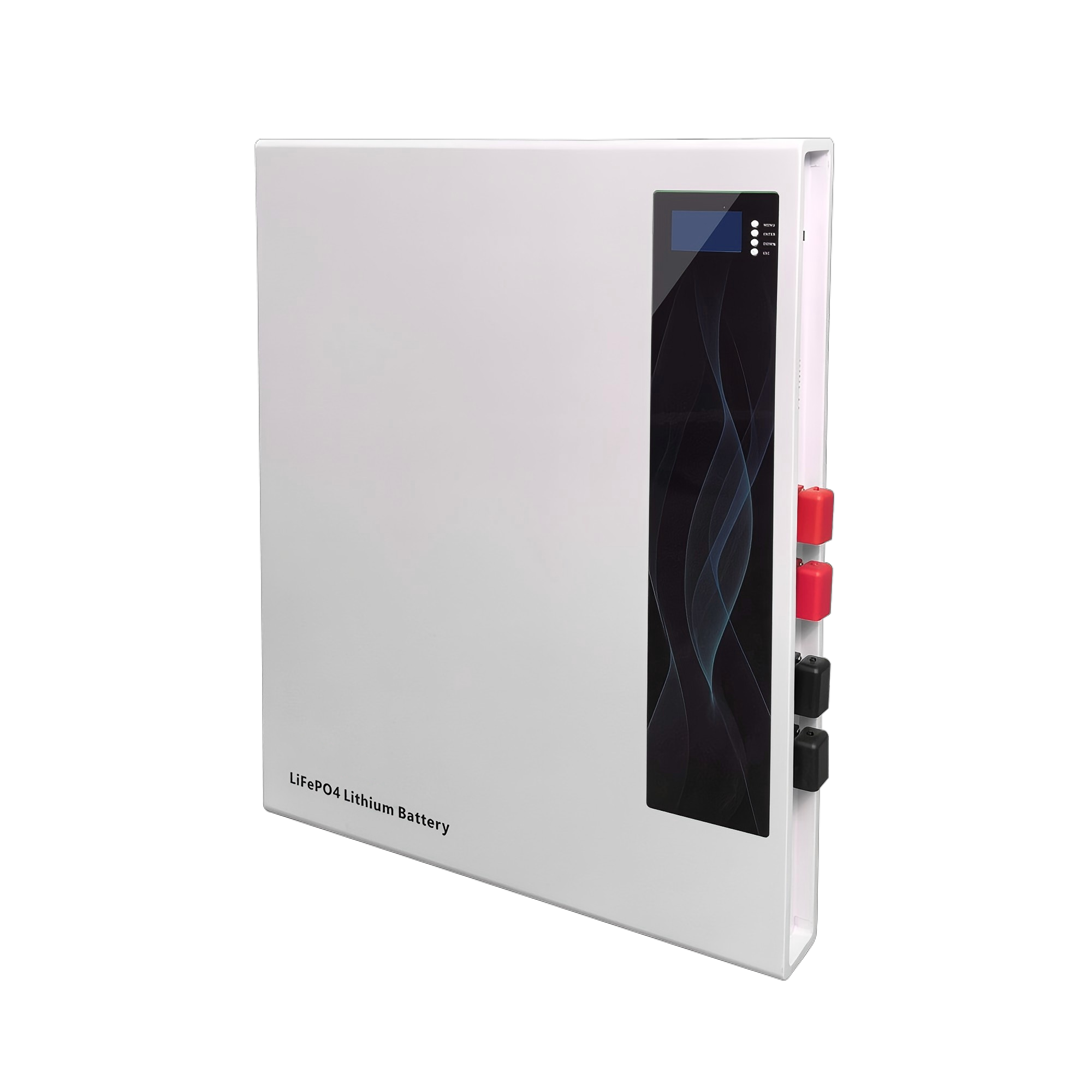

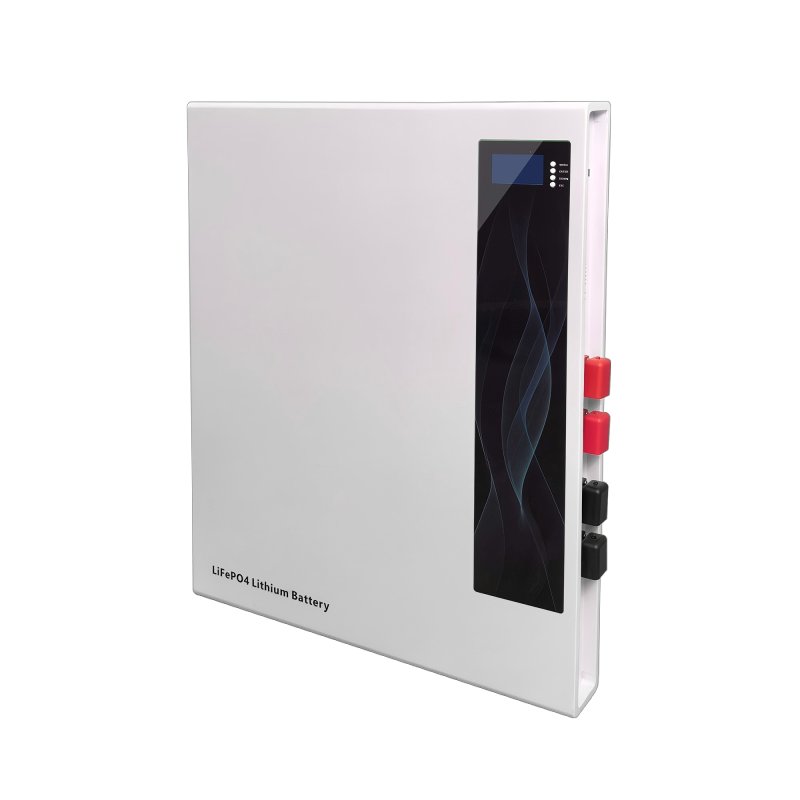

Ultra-thin Wall-mounted Lithium Battery

Recommended Products

Product Features

  • Charge/discharge cycle life exceeds 5000 cycles.

  • Features over-charge and over-discharge protection.

  • Features over-current and short-circuit protection.

  • Features over-temperature protection.

  • Suitable for off-grid solar photovoltaic power generation systems.

  • Built-in intelligent battery management system ensures the battery always operates in optimal condition.

  • Automatic output cut-off after 30 days of no charging/discharging; output can also be cut off manually.

  • Intelligent BMS integrates multiple communication protocols.

  • 5-year warranty, 10-year service life. LiFePO4 battery for enhanced stability and safety.

Parameters
Download
Get a Quote
ModelHA MAX Series25.6V100AhHA MAX Series51.2V200Ah
Design StyleWall-mountedWall-mounted
Battery TypeLiFePO4LiFePO4
Voltage25.6V51.2V
Capacity100Ah50Ah
Energy2560Wh2560Wh
Float Charging Voltage28.0V56.0V
Voltage Range20.0~29.2V40.0~58.4V
Max. Continuous Charge Current (A)50A25A
Max. Continuous Discharge Current (A)100A50A
Max. Pulse Discharge Current (A)150A 1Sec75A 1Sec
TerminalM6M8
Storage Temperature0℃~30℃
IP RatingIP20
Storage Duration6 months at 25℃
Safety StandardsUN38.3, MSDS
Display (Optional)LCD
CommunicationCSN, RS485
ProtectionOver-charge, Over-discharge, Over-current, Short-circuit, Over-temperature
Operating Temperature-10℃~+50℃
Humidity0~95% (Non-condensing)
Max. Altitude (m)≤1500
Product Dimensions (LxWxH, mm)460x360x139mm460x360x139mm
Package Dimensions (LxWxH, mm)540x440x219mm540x440x219mm
Net Weight (Kg)23.2Kg23.2Kg
Gross Weight (Kg)25.0Kg25.0Kg
