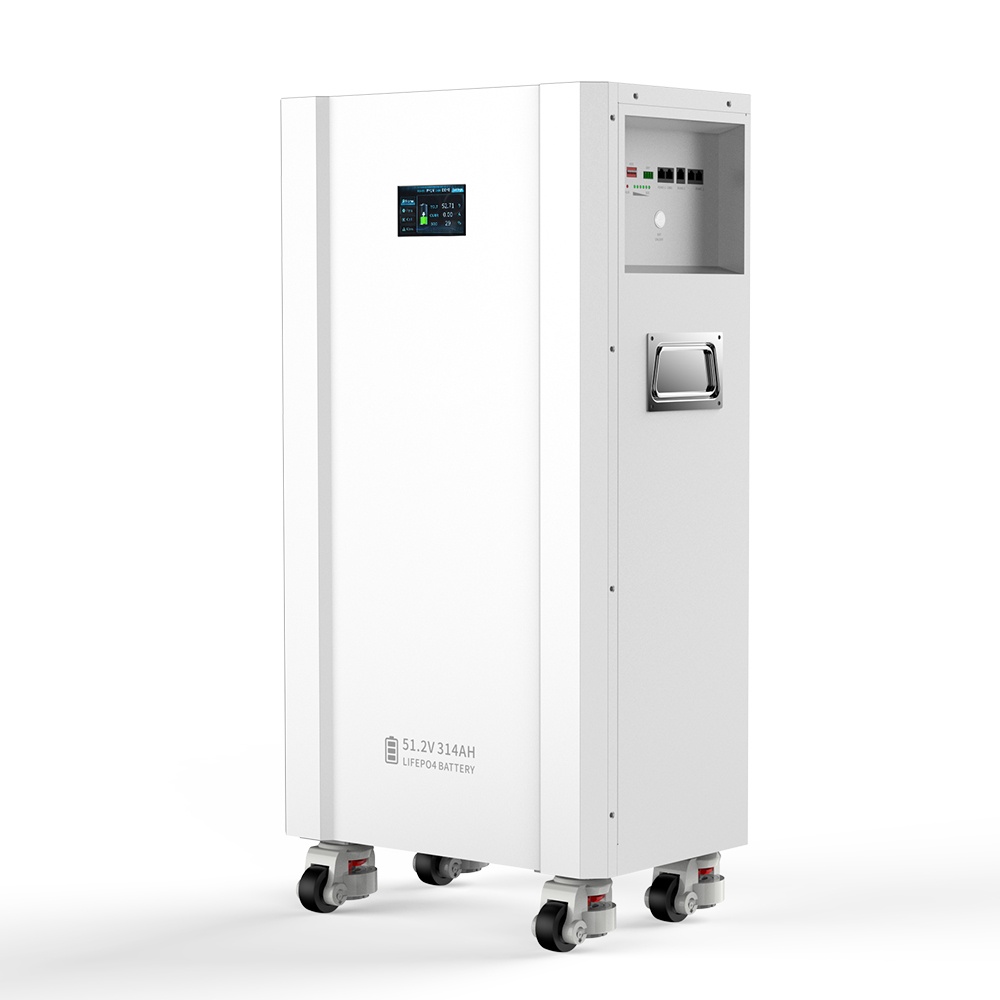

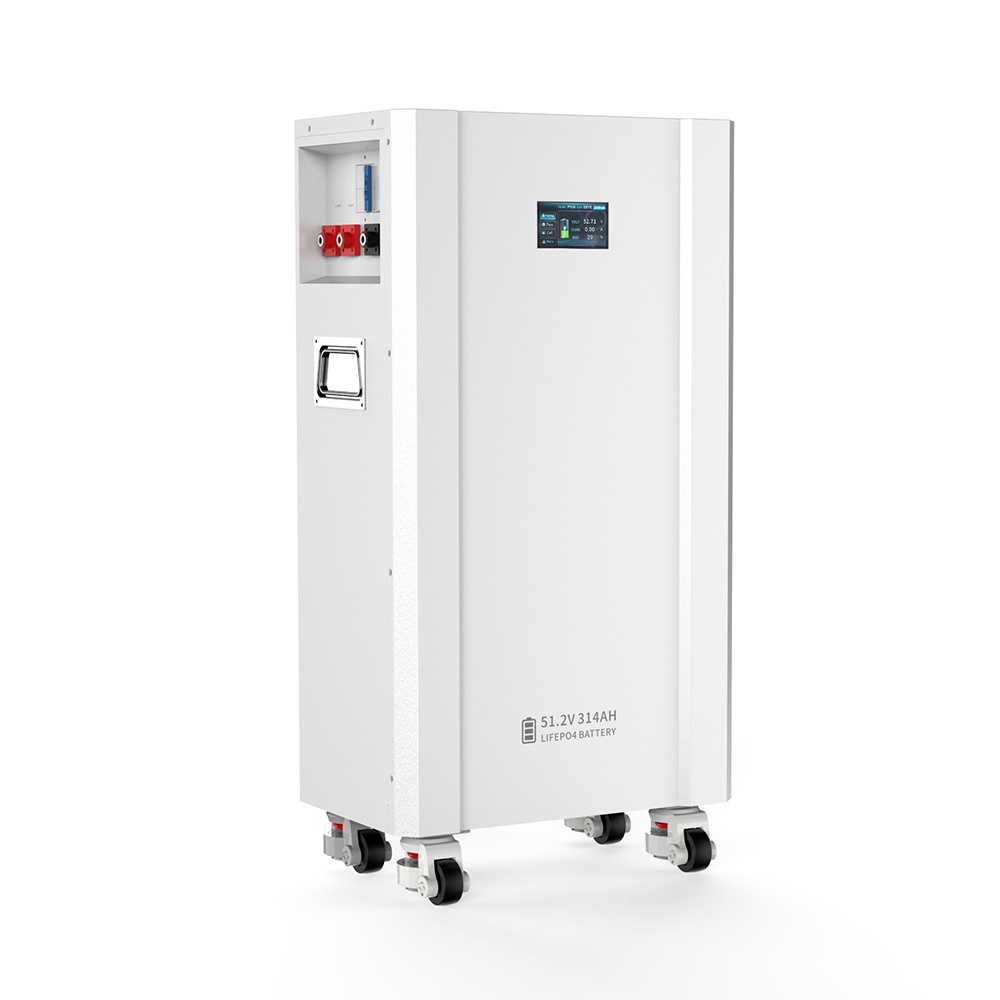

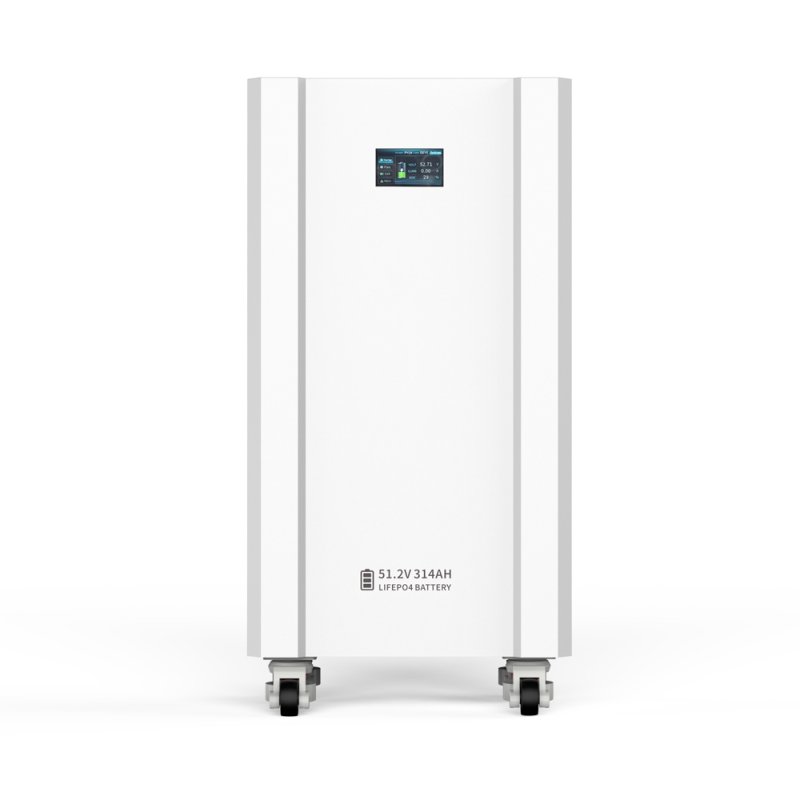

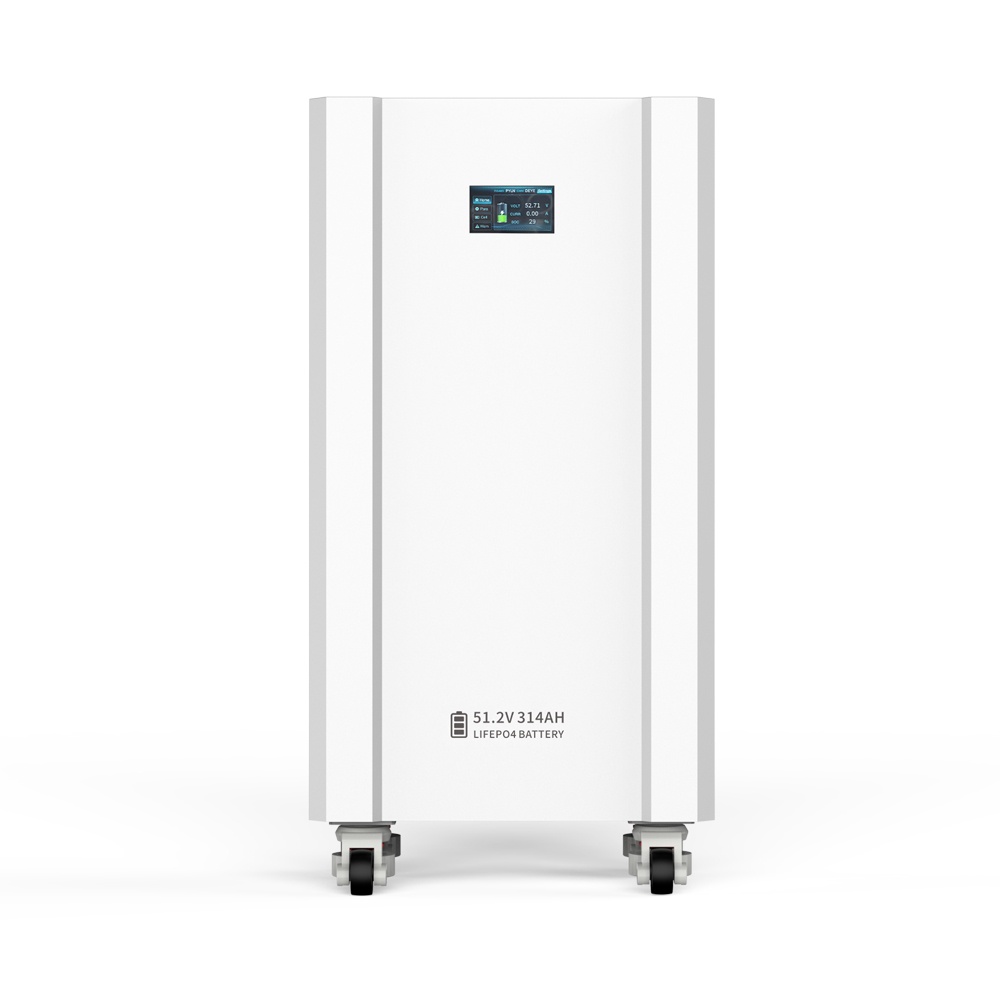

Tower Lithium Battery

Recommended Products

  • Grade A battery cells, sturdy and reliable
  • Max. charge/discharge current up to 100A/200A, suitable for solar battery systems
  • 5000 battery cycles, 5-year warranty, designed for over 10 years service life
  • LCD display with communication ports (CAN/RS485/RS232)
  • Wall-mounted design, space-saving
  • Optional 48V smart BMS compatible with hybrid solar inverters of various brands
  • Rugged and durable, reliable quality

Parameters
Download
Get a Quote
ItemHF PRO 25.6V 300AhHF PRO 51.2V 300Ah
Model DesignTower TypeTower Type
Battery TypeLiFePO4LiFePO4
Nominal Battery Model25.6V 300Ah51.2V 300Ah
Nominal Capacity (25℃, 0.2C)7680Wh15360Wh
Voltage Range (Vdc)22.4~29.2V44.8~58.4V
Fast Charge Voltage (Vdc)28.0V56.0V
Max. Continuous Discharge Current150A150A
Max. Pulse Discharge Current200A for 30Sec.200A for 30Sec.
Max. Continuous Charge Current100A100A
TerminalM8M8
Storage Temperature0℃~30℃0℃~30℃
Storage Duration6 months at 25℃6 months at 25℃
Safety StandardsUN38.3, MSDSUN38.3, MSDS
IP RatingIP20IP20
CommunicationCAN/RS485/RS232CAN/RS485/RS232
