QF-SSE-TK-012

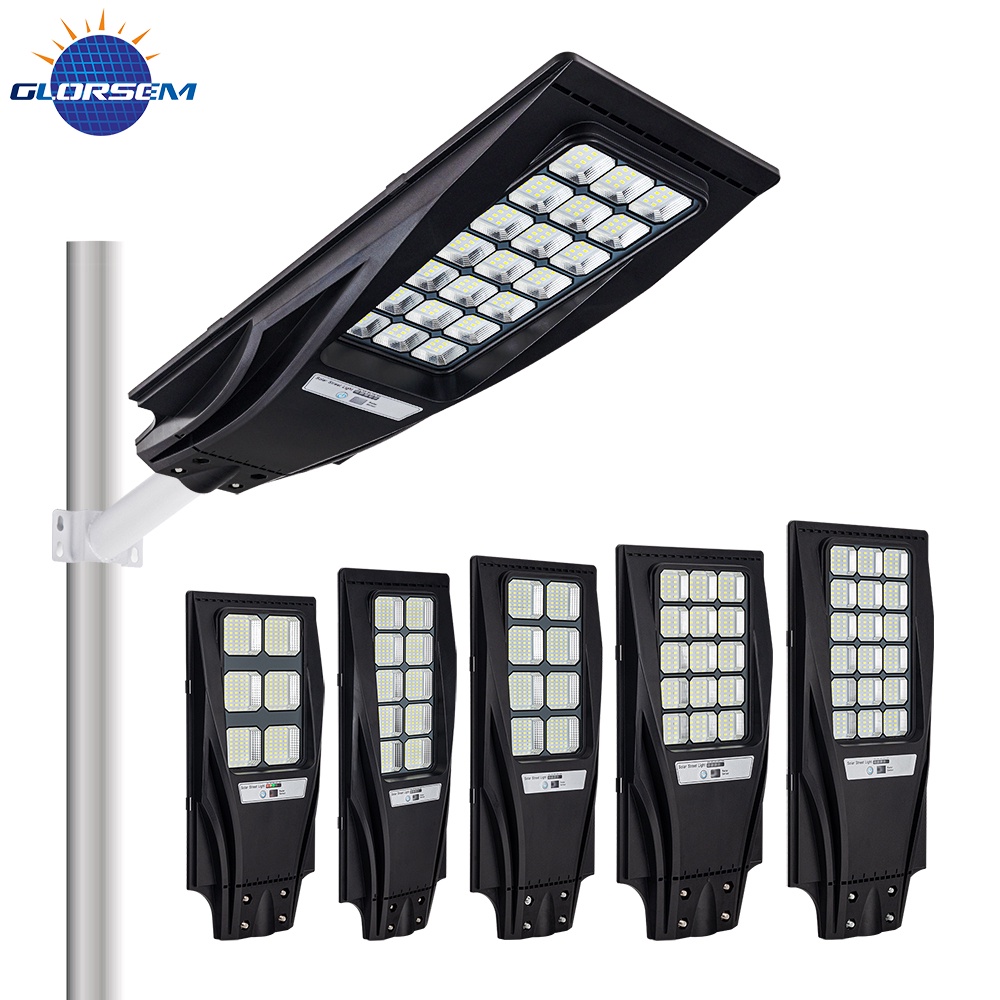

Waterproof Road All in One Street Light Human Rader Sensing Integrated Solar Street Lights Outdoor

Recommended Products

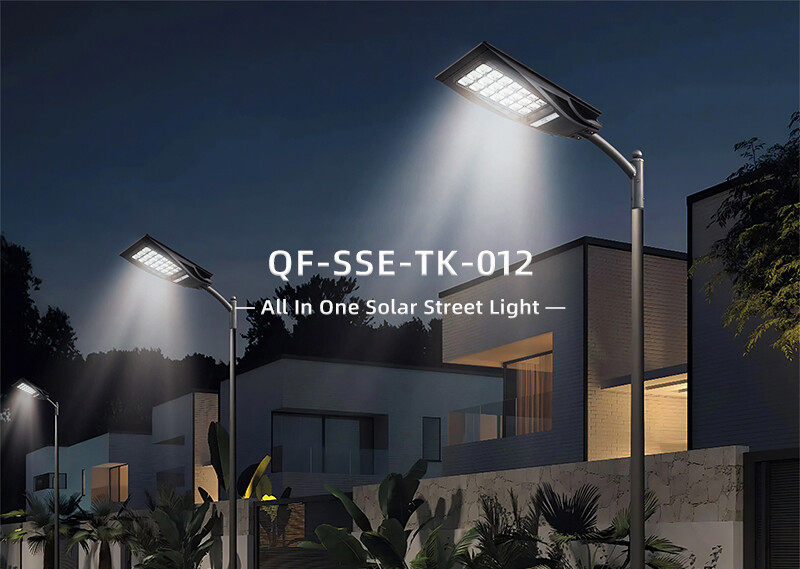

画板 1SSE-TK-012

规格参数 1-详情

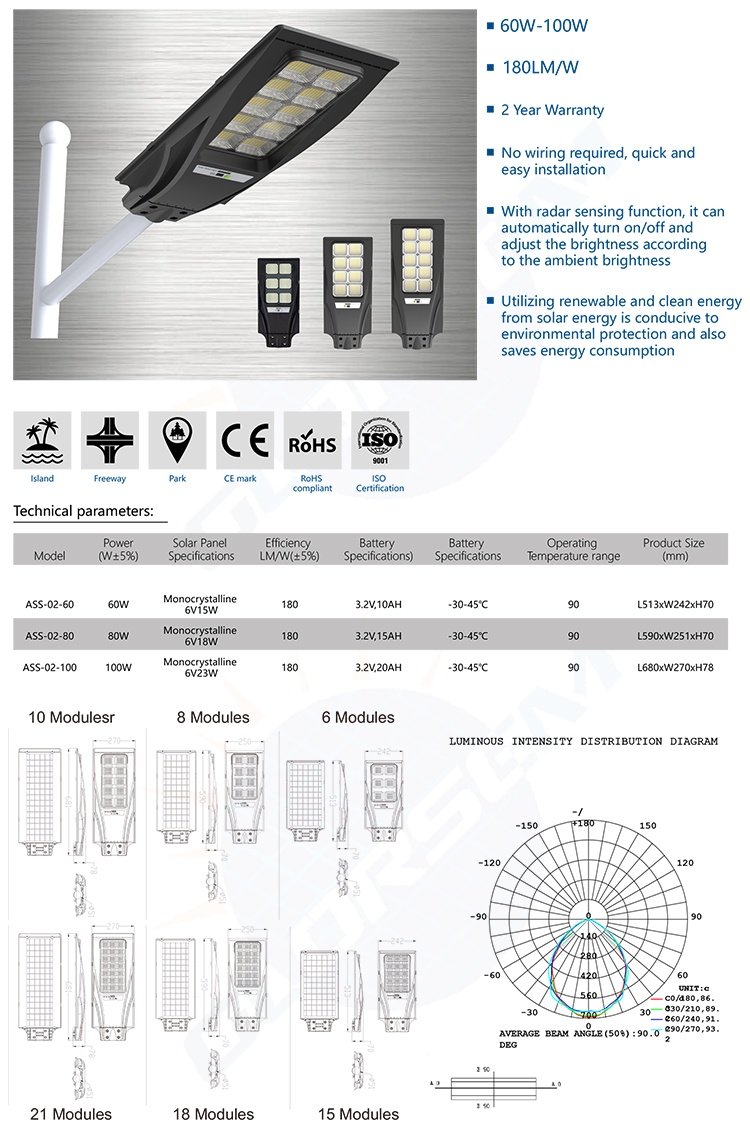

规格参数 2-详情

01-详情

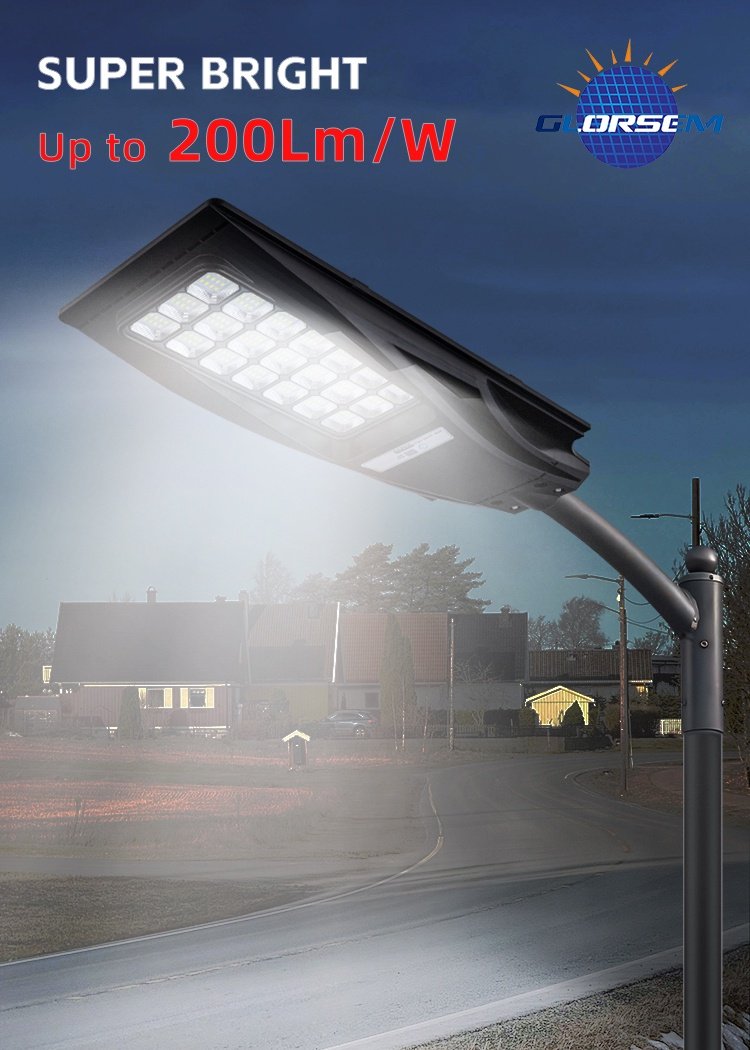

02-详情

03-详情

04-详情

05-详情

06-详情

07-详情

画板 2SSE-TK-012

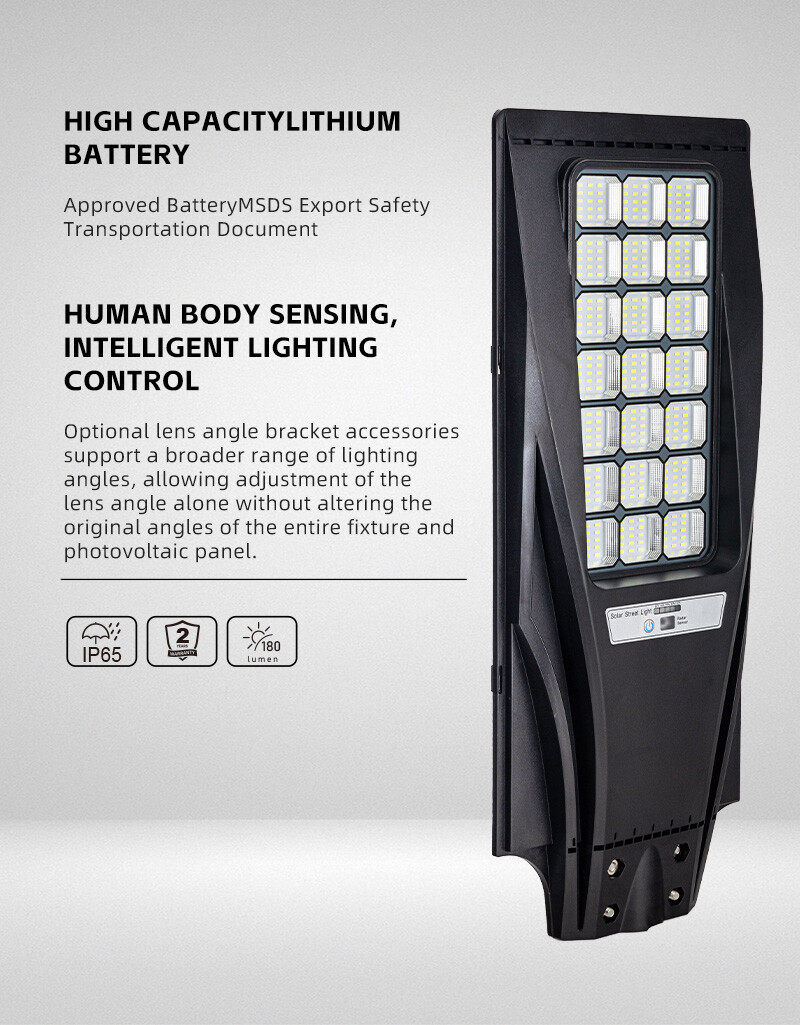

画板 3SSE-TK-012

画板 4SSE-TK-012

画板 5SSE-TK-012

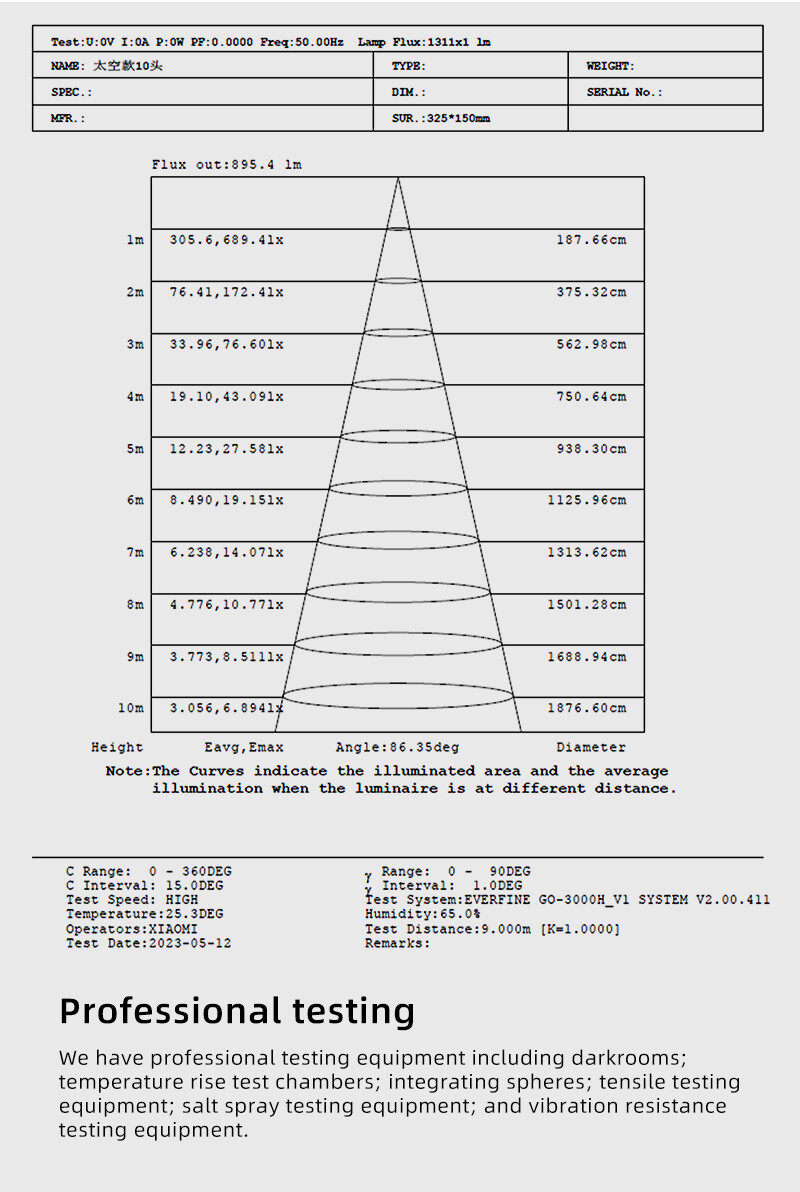

画板 6SSE-TK-012

画板 7SSE-TK-012

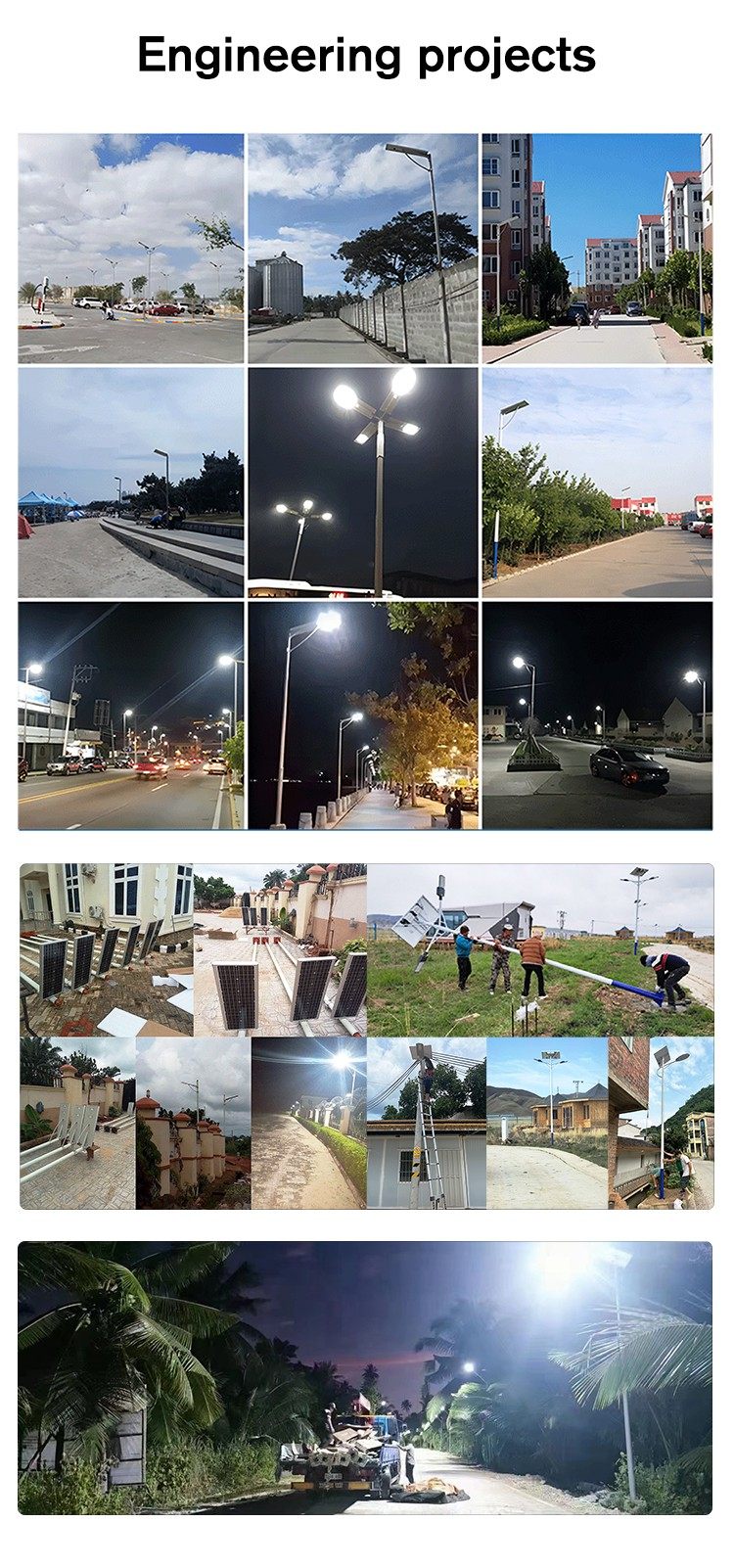

案例演示（可选）-详情






Parameters
Download
Get a Quote

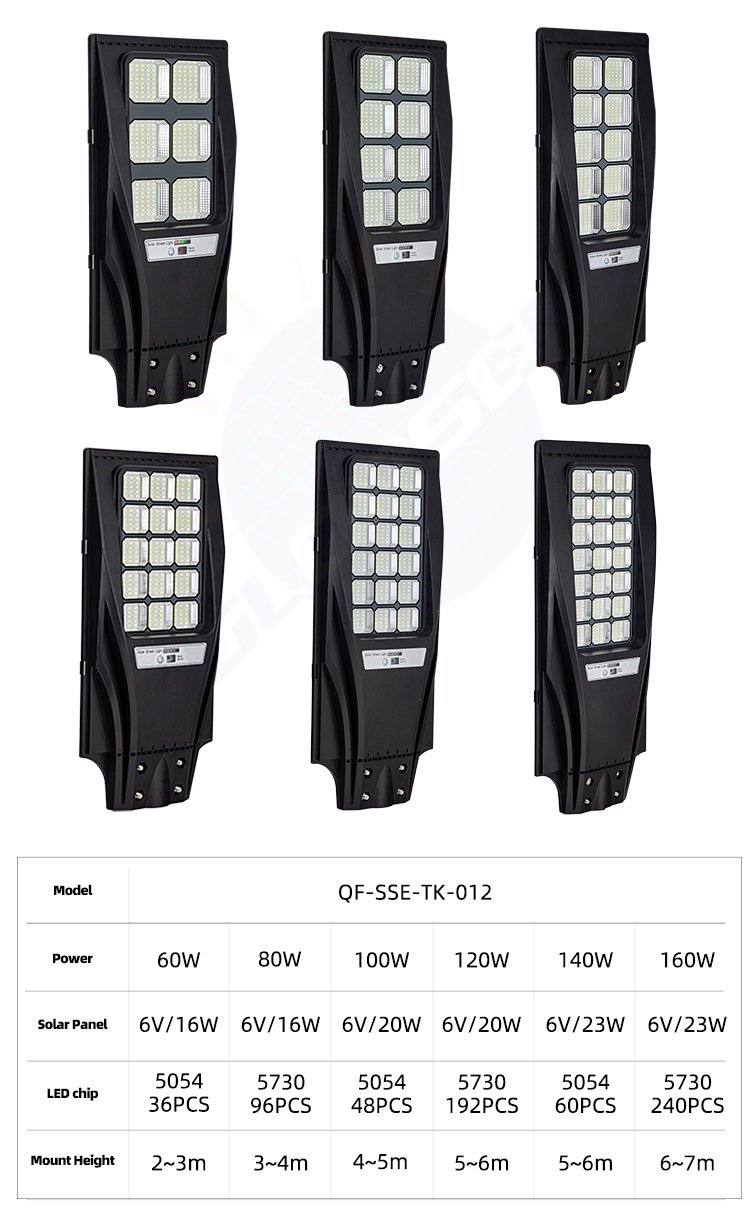

Product ModelQF-SSE-TK-012
Rated Power100W100W200W200W300W300W

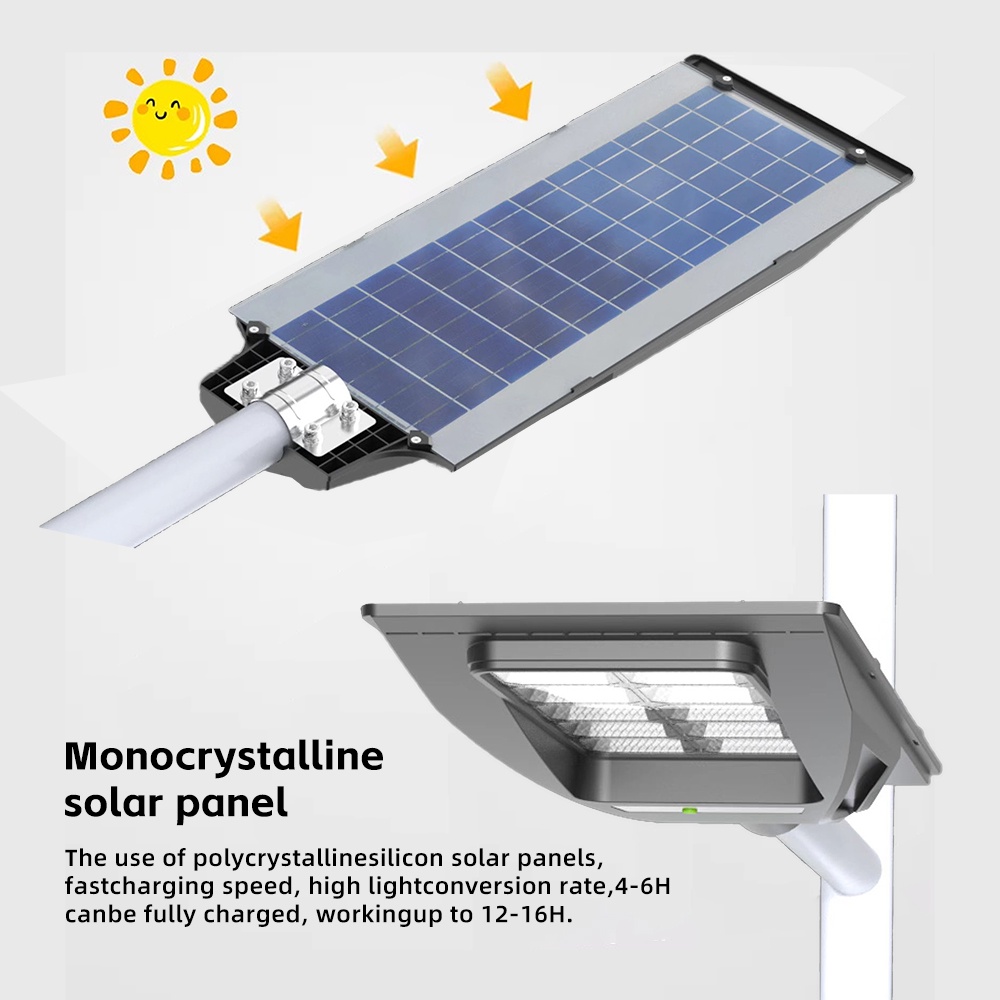

PV Panel Specificationsr6V/16W Monocrystalline silicon solar panel

6V/16W Monocrystalline silicon solar panel

6V/20W Monocrystalline silicon solar panel

6V/20W Monocrystalline silicon solar panel

6V/23W Monocrystalline silicon solar panel

6V/23W Monocrystalline silicon solar panel

Battery Specifications3.2V/6Ah3.2V/6Ah3.2V/10Ah3.2V/10Ah3.2V/15Ah3.2V/15Ah
Charge Time6~8 Hours in scenarios with sufficient sunlight
Lighting Duration2~3 Days of endurance/power reserve in overcast or rainy conditions

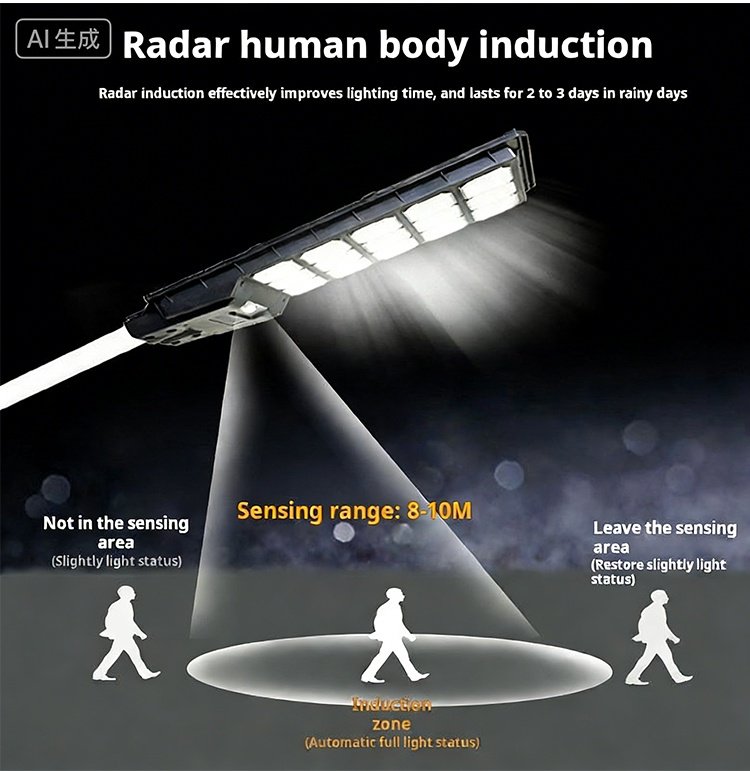

Working ModeConstant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness,   Triggering 100% Brightness Upon Detection

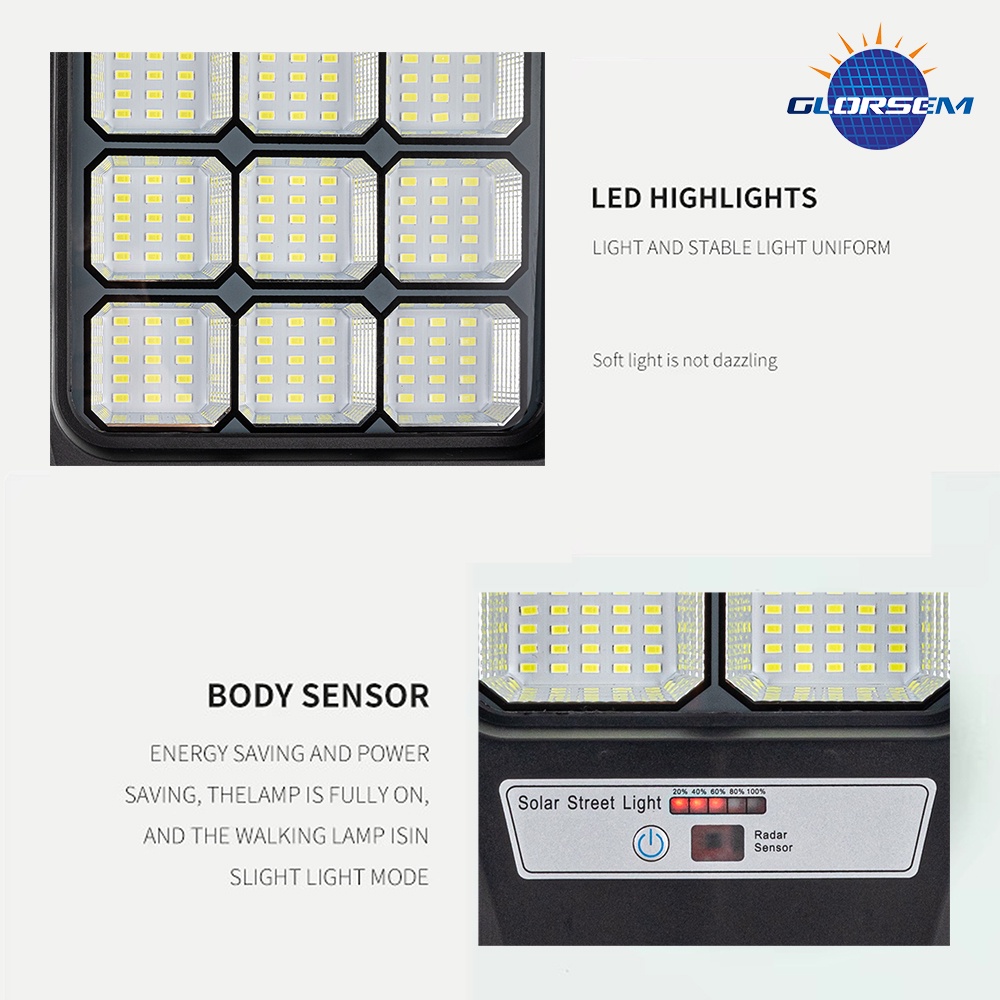

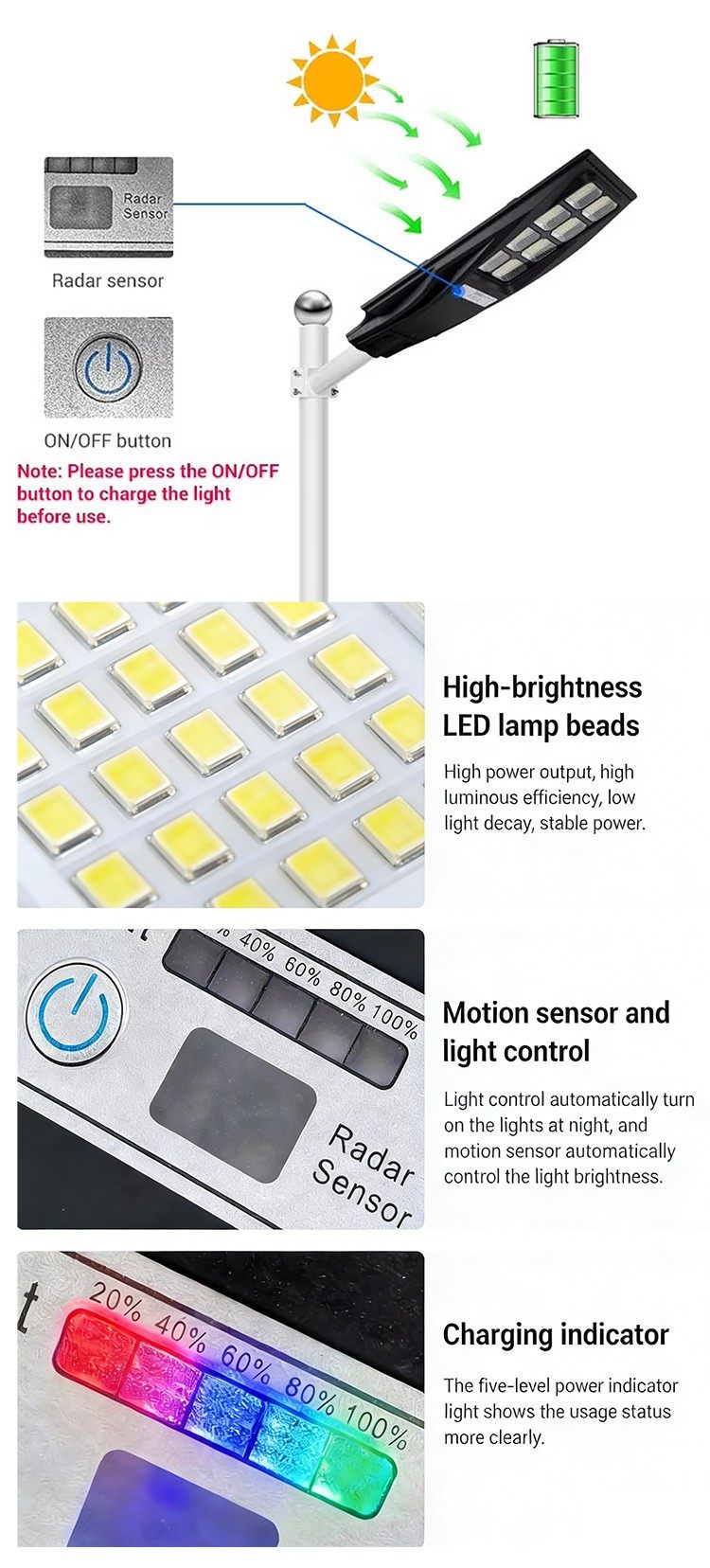

Sensor[Optional] Radar Sensor
[Optional] Microwave Sensor
[Optional] Passive Infrared (PIR) Sensor
Control FunctionsLight Sensor；Time Control；Sensor Control；
[Optional] Remote Control
Light Bead/Light Socket TypesSMD LED 5054- 36PCSSMD LED 5730- 96PCSSMD LED 5054- 48PCSSMD LED 5730- 192PCSSMD LED 5054- 60PCSSMD LED 5730- 240PCS
Lamp Color TemperatureDefault : 6500K；Customizable color temperature

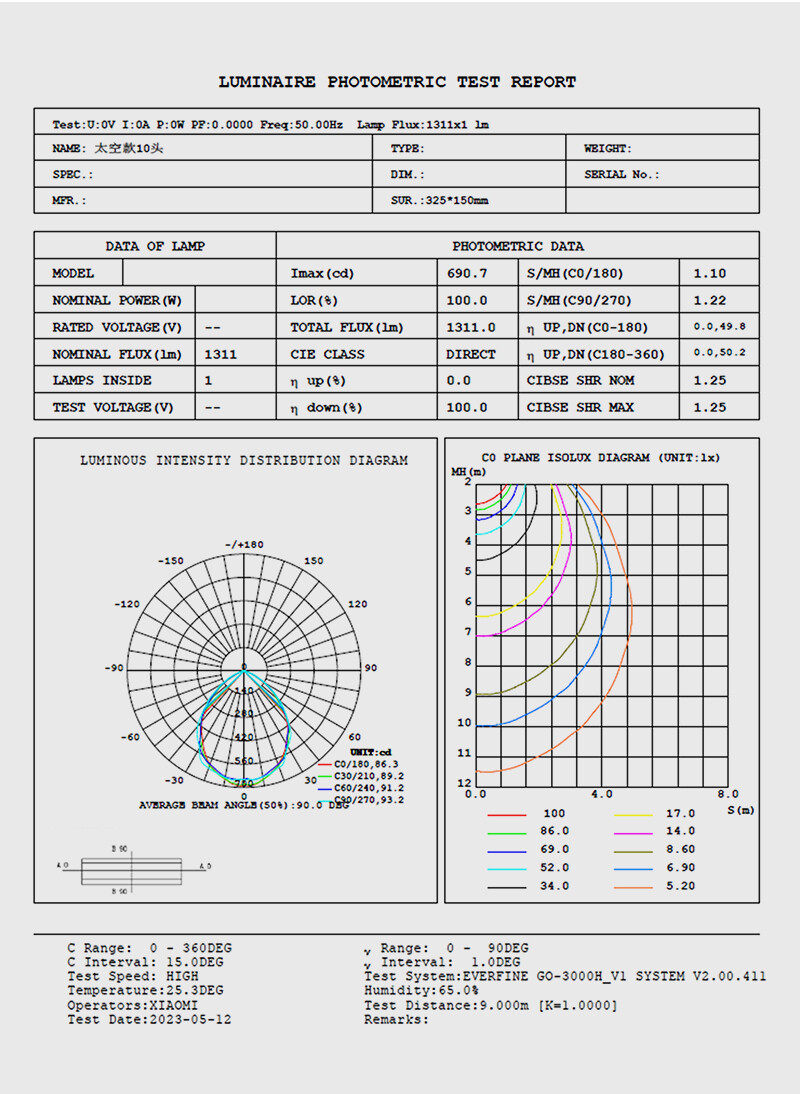

Reflector Angle70*140°
Luminous Efficacy130~150Lm/W
Color Render IndexRa:70
Main ColorBlack
Working Temperature-20℃   ~﹢65℃
Product MaterialABS   + PC Lens + Glass Cover

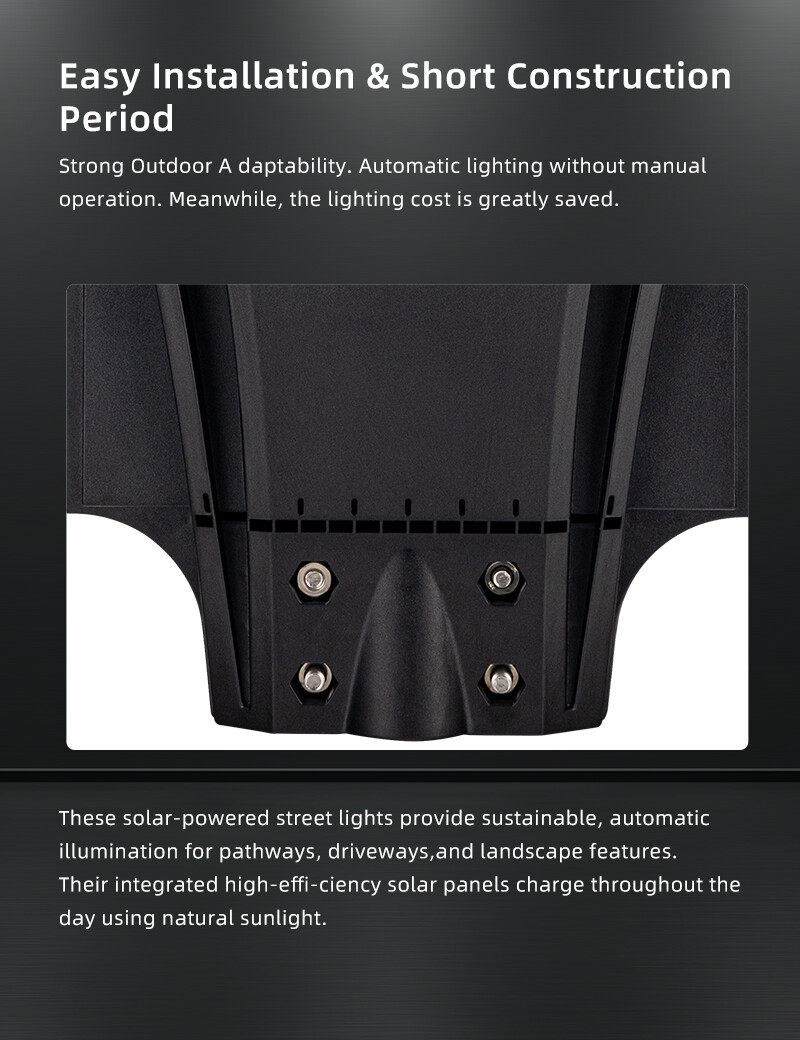

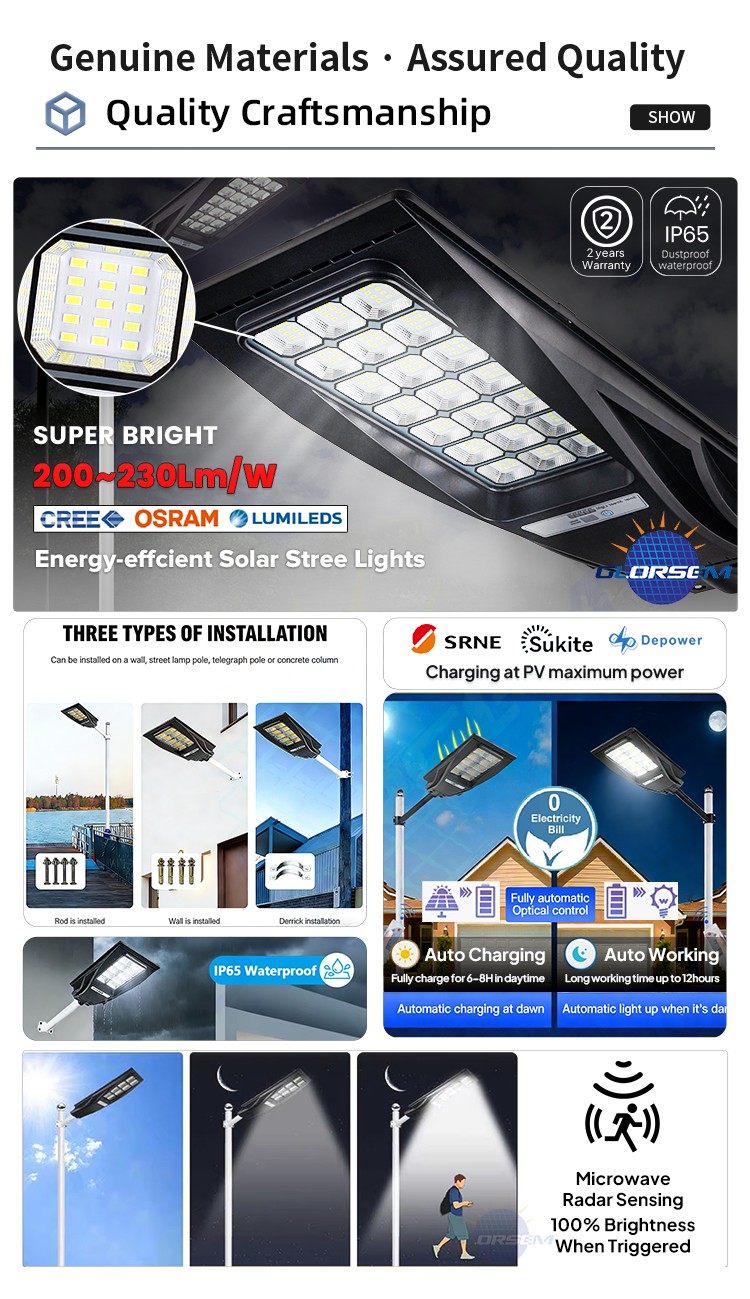

Installation MethodWall-mounted ; Pole-clamp mounted ; Pole-mounted
Nominal DiameterΦ50mm   ; Customizable

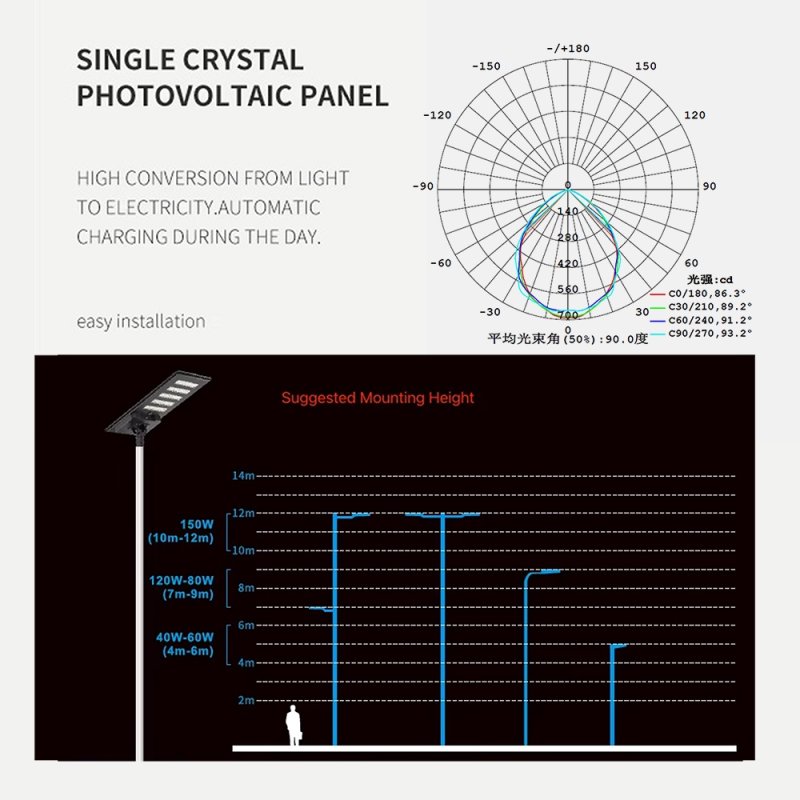

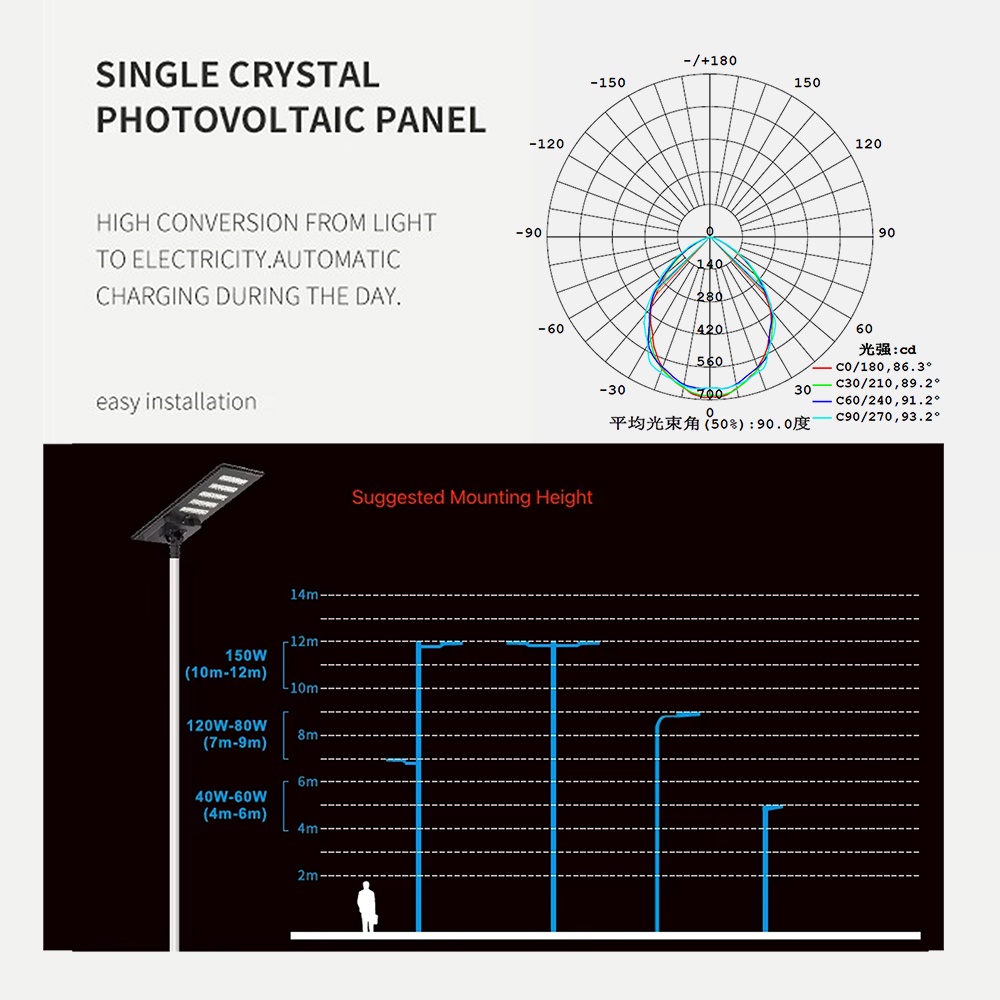

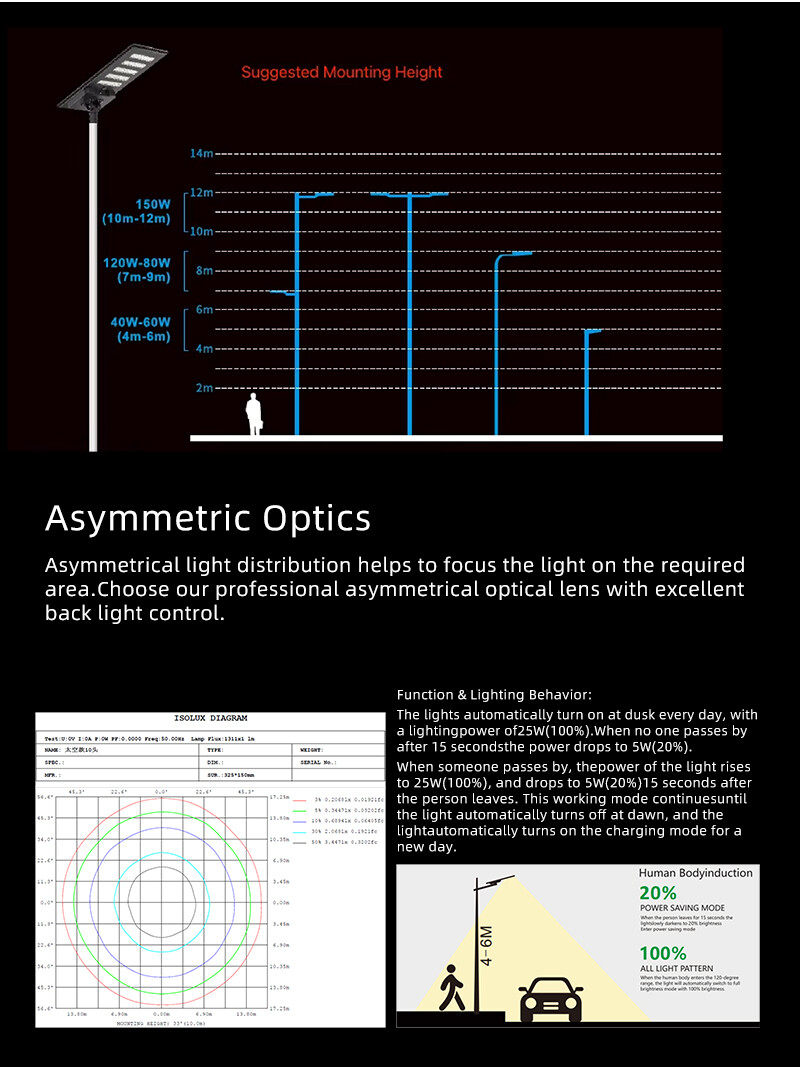

Installation Height3~4m2~3m5~6m4~5m6~7m5~6m
Installation Spacing6~8m4~6m6~8m8~10m10~12m10~12m
Product Dimension513*242*48mm 513*242*48mm 590*251*60mm590*251*60mm680*270*70mm680*270*70mm
