| Product Model | QF-TSS-FY-028
|
| Rated Power | 150W | 250W |
| PV Panel Specifications | Customizable 680×350×1515/6V/40W Monocrystalline silicon solar panel | Customizable 535×670×25/6V/58W Monocrystalline silicon solar panel |
| Battery Specifications | 3.2V/30Ah | 3.2V/45Ah |
| Charge Time | 6 Hours in scenarios with sufficient sunlight
|
| Lighting Duration | 2~3 Days of endurance/power reserve in overcast or rainy conditions
|
| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection
|

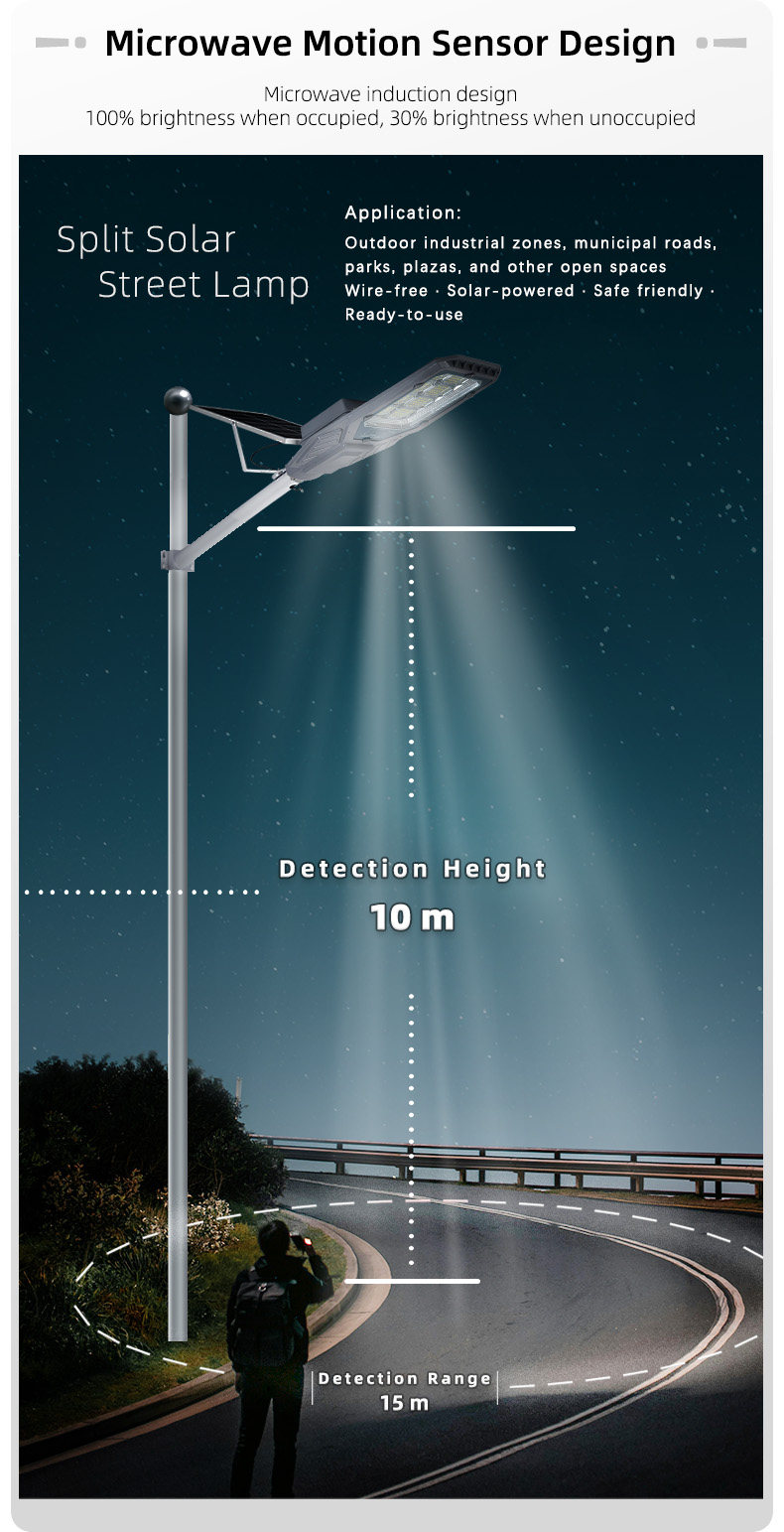

| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor
|

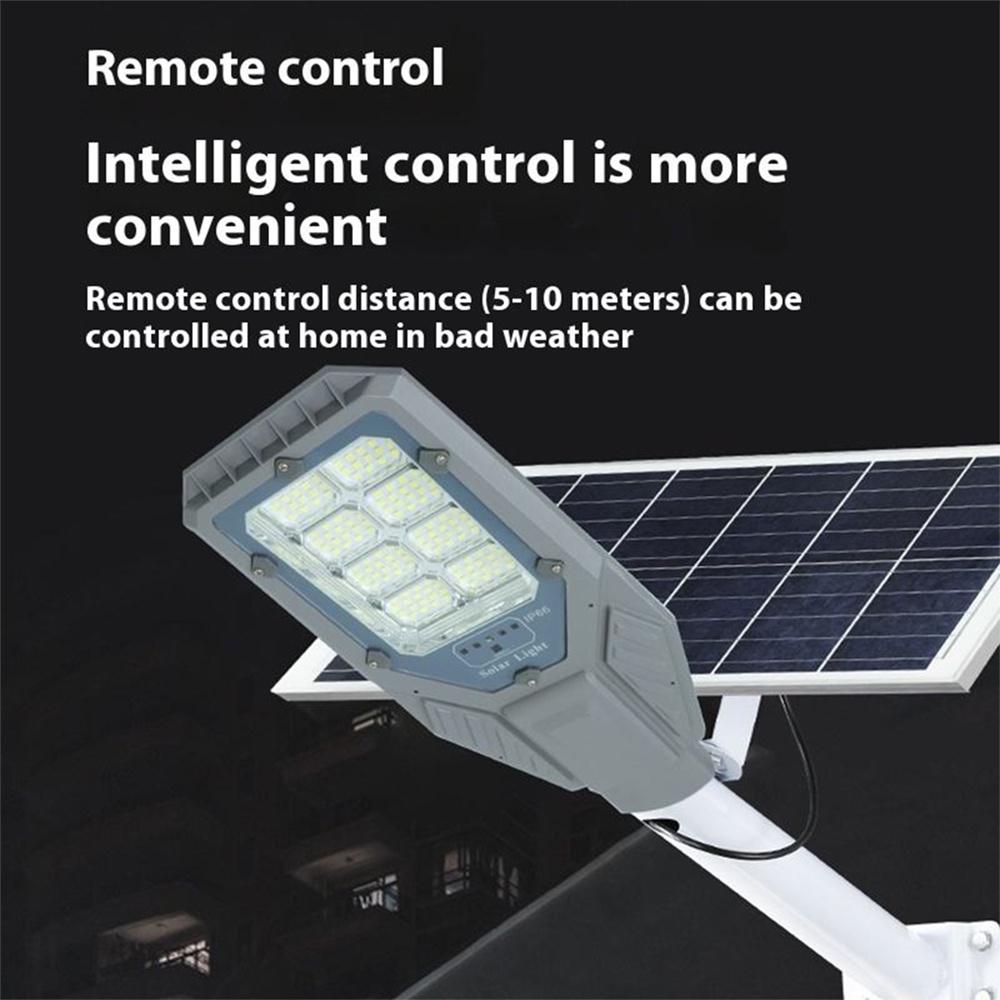

| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control
|

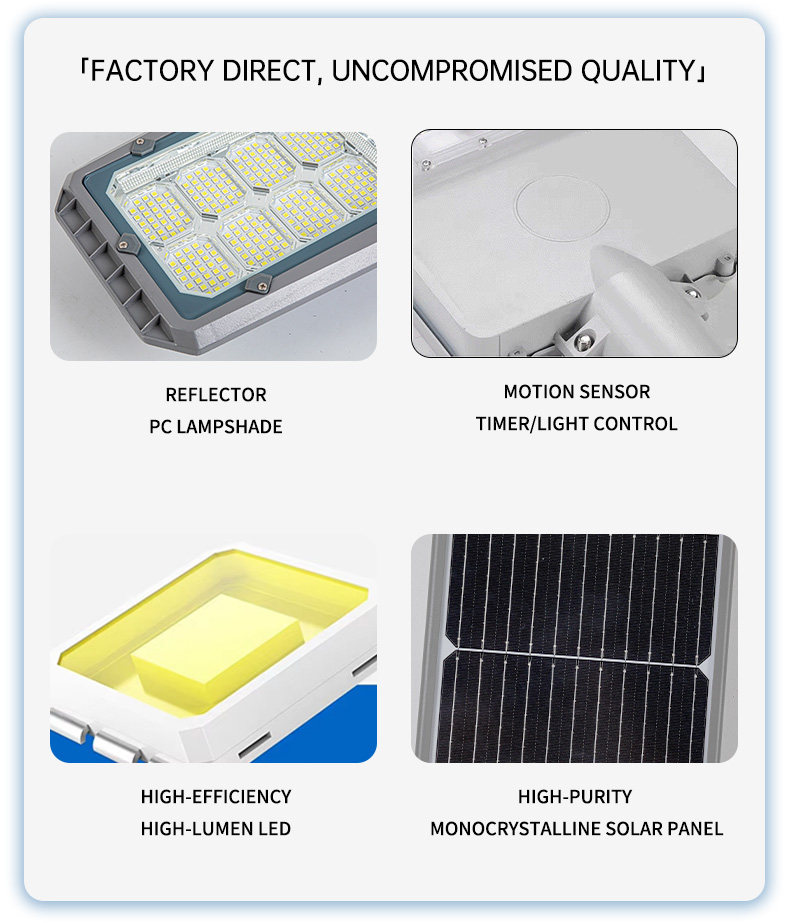

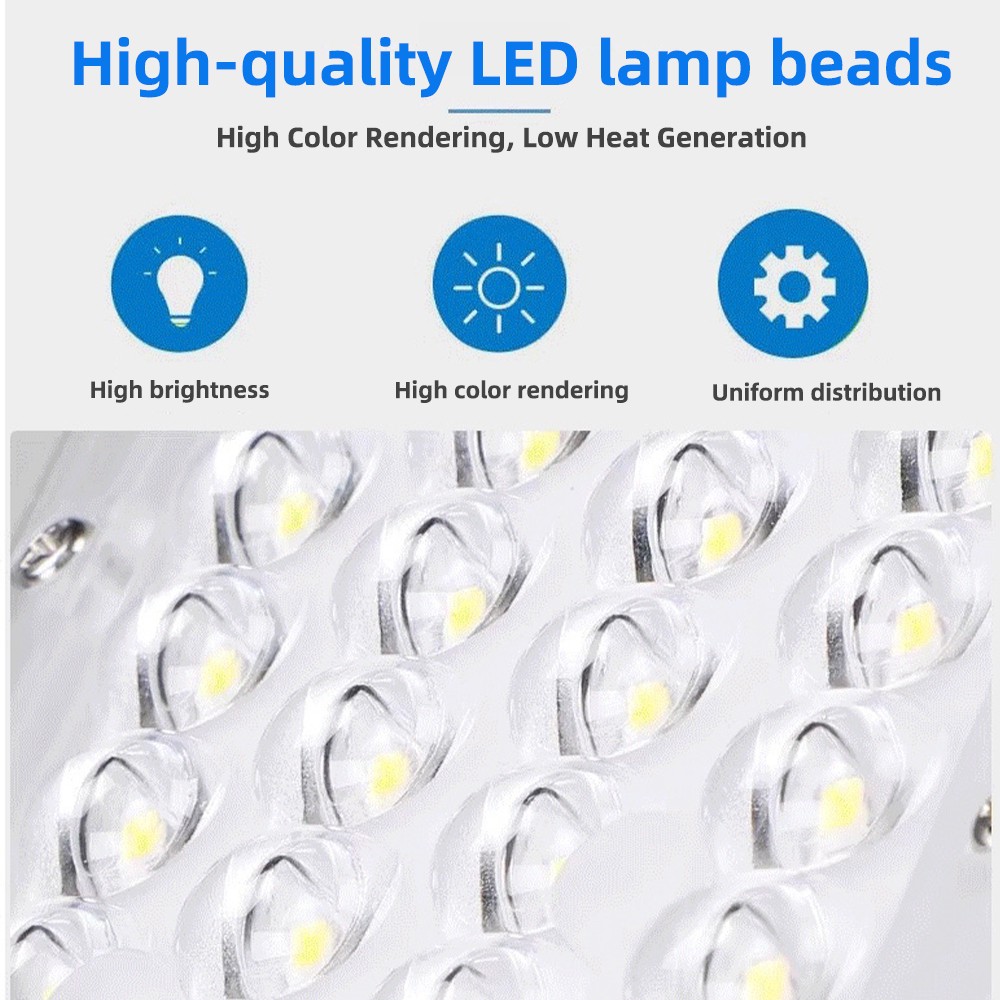

| Light Bead/Light Socket Types | 5054 SMD LED 144PCS | 5054 SMD LED 248PCS |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature
|
| Reflector Angle | 70×140°
|
| Luminous Efficacy | 160-180LM/W
|
| Color Render Index | Ra:70
|
| Main Color | Gray
|
| Working Temperature | -20℃ ~ +65℃
|

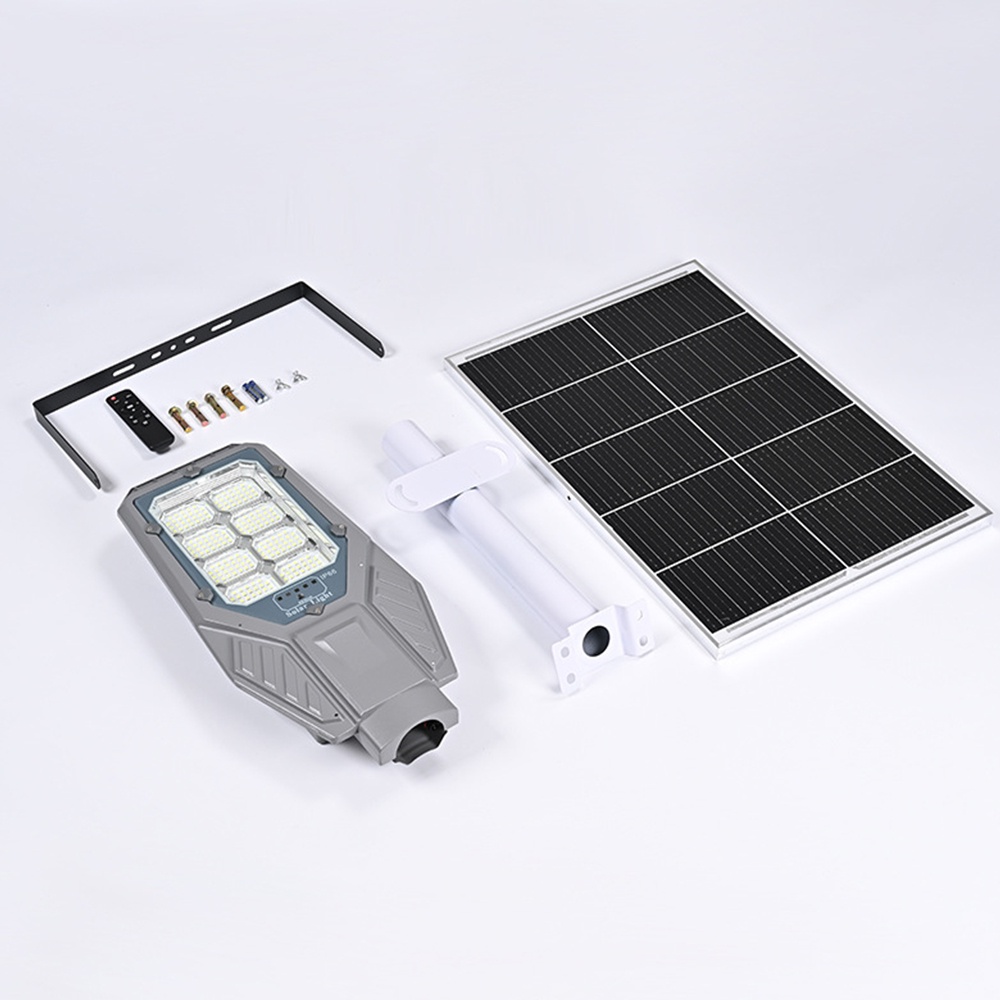

| Product Material | Aluminum + PC Lens + Glass Cover
|

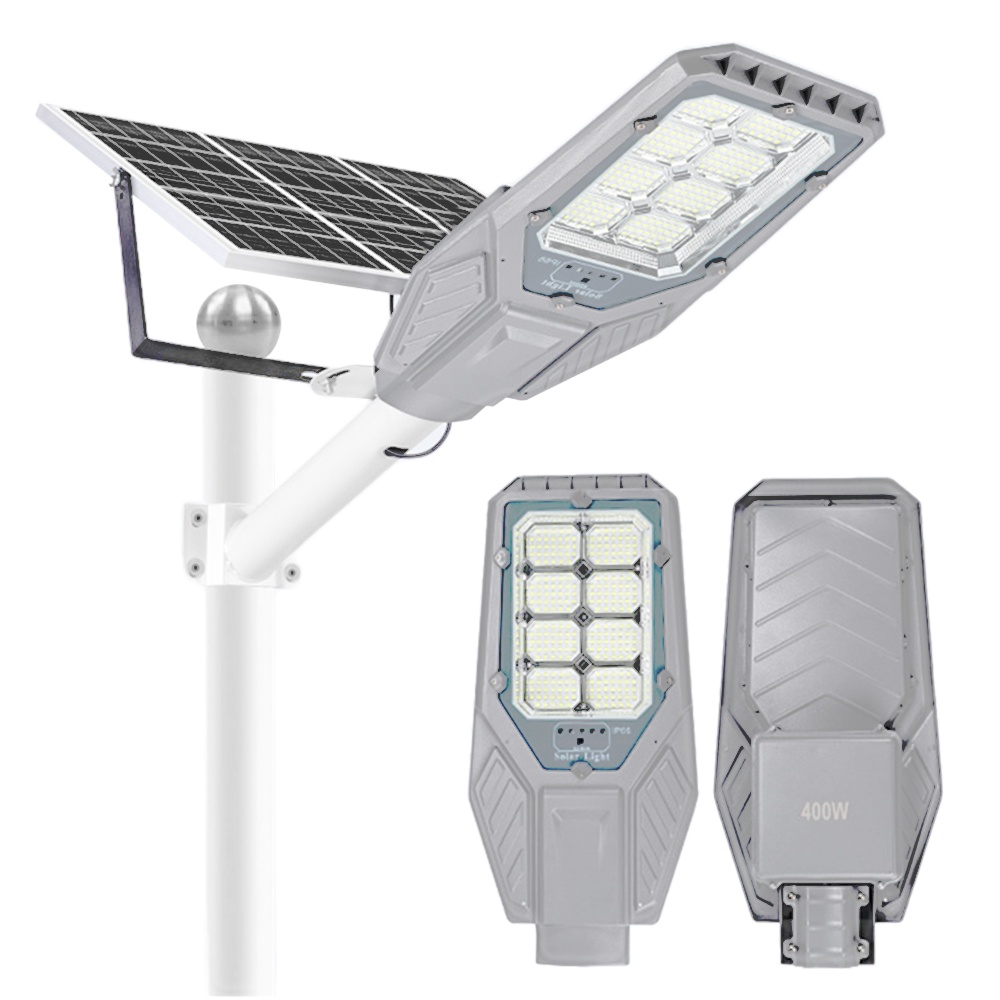

| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted
|
| Nominal Diameter | Φ60mm; Customizable
|
| Installation Height | 5~6m | 7~8m |
| Installation Spacing | 10~15m | 10~15m |
| Product Dimension | 520×240×75mm | 570×270×80mm |
| Product Net Weight | 2.0Kg | 2.6Kg |
| Package Dimension | Luminaire packaging: Inner box:25×9×53cm Color box; Outer box:47×26×54.5cm-5PCS/CTNSolar panel packaging: Inner box:46×3×69CM Color box; Outer box:71×19×47CM-5PCS/CTN | Luminaire packaging: Inner box:28×9.5×58cm Color box; Outer box:51.5×29×59.5cm-5PCS/CTNSolar panel packaging: Inner box:55×3.5×69CM Color box; Outer box:71×19.5×56.5CM-5PCS/CTN |
