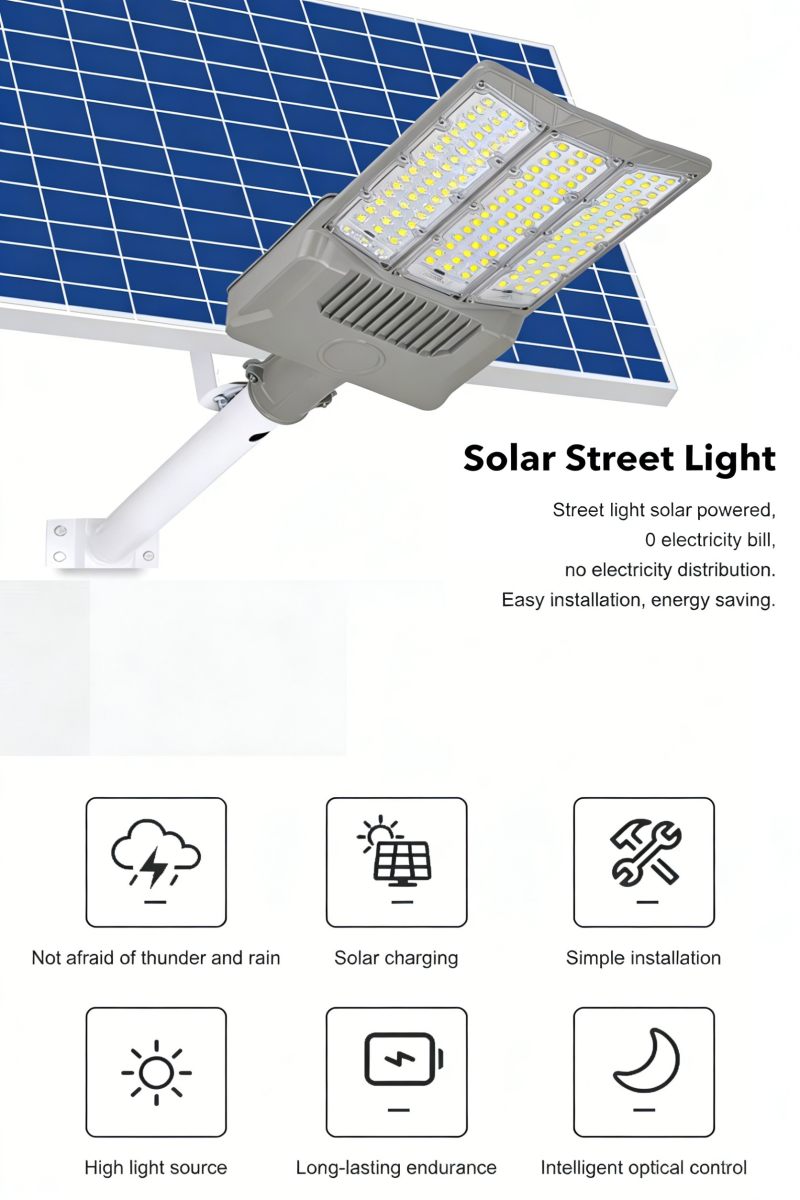

| Product Model | QF-TSS-HF-015 |
| Rated Power | 200W / 300W |

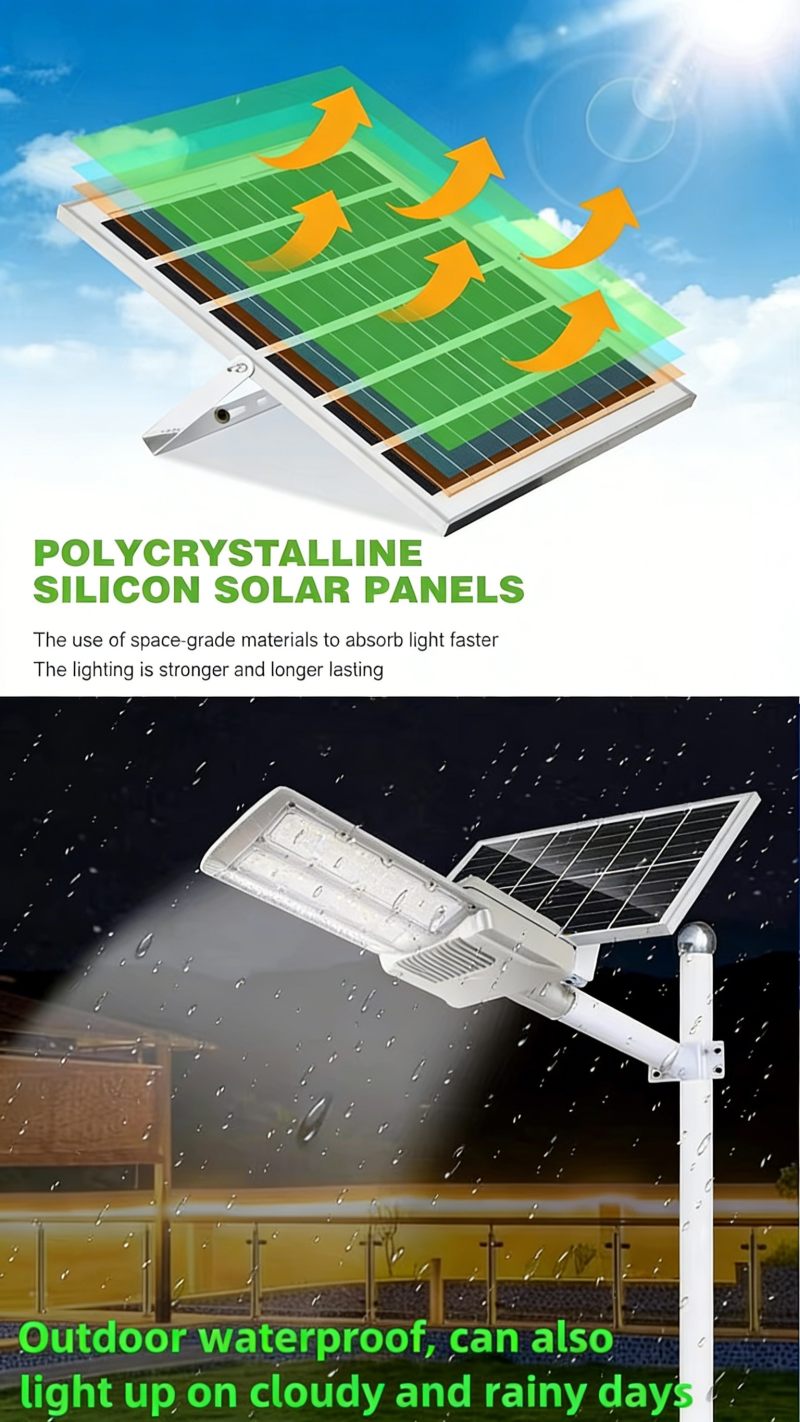

| PV Panel Specifications | Customizable 6V/40W 680×350×1515 Monocrystalline silicon solar panelCustomizable 6V/48W 445×670×25 Monocrystalline silicon solar panel |
| Battery Specifications | 3.2V/30Ah / 3.2V/35Ah |

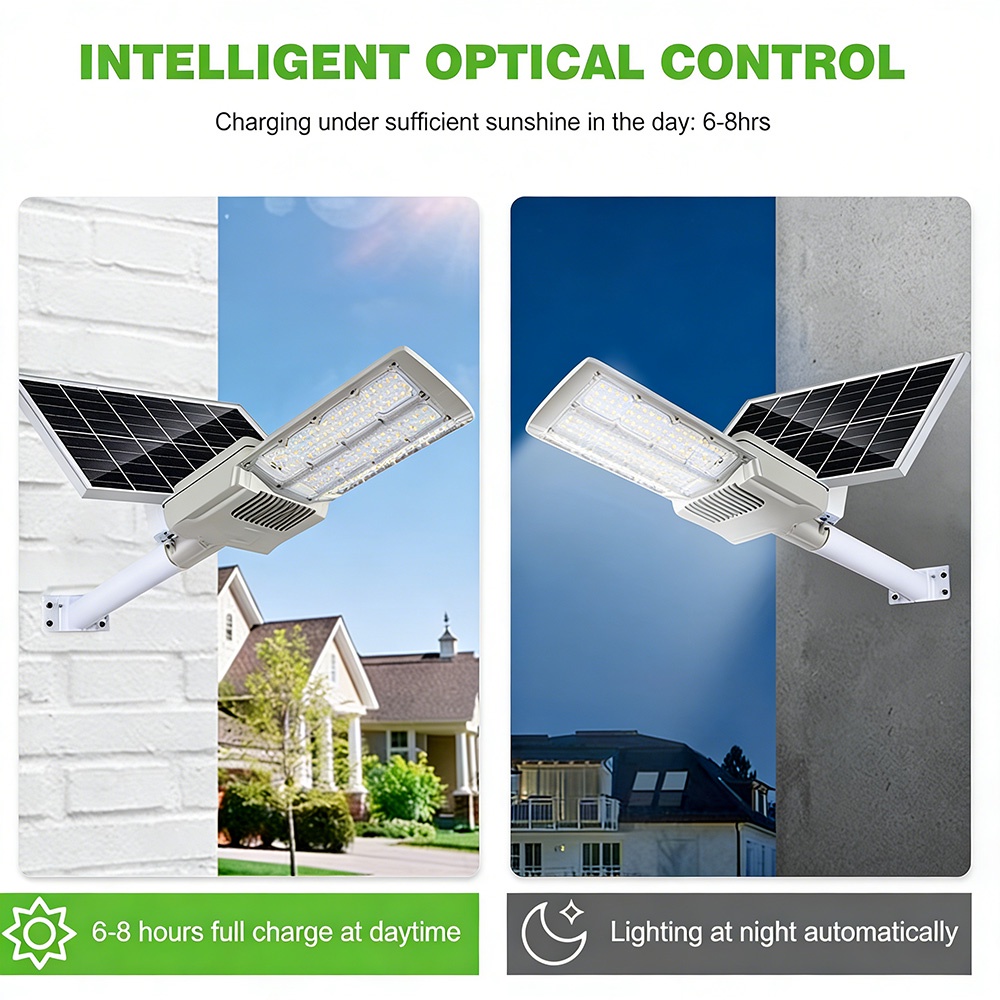

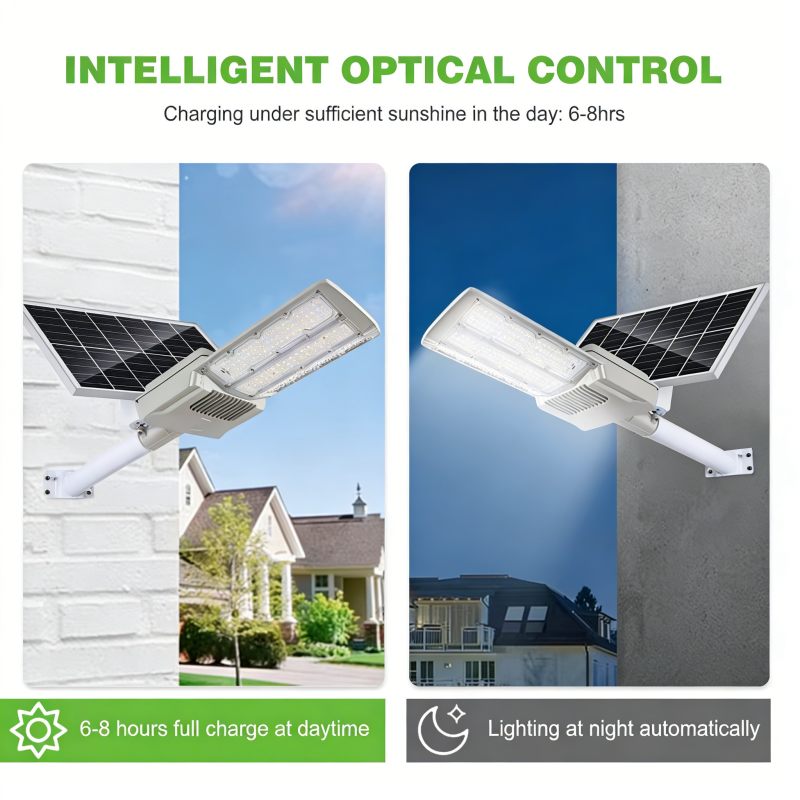

| Charge Time | 6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2~3 Days of endurance/power reserve in overcast or rainy conditions |
| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |
| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |
| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |

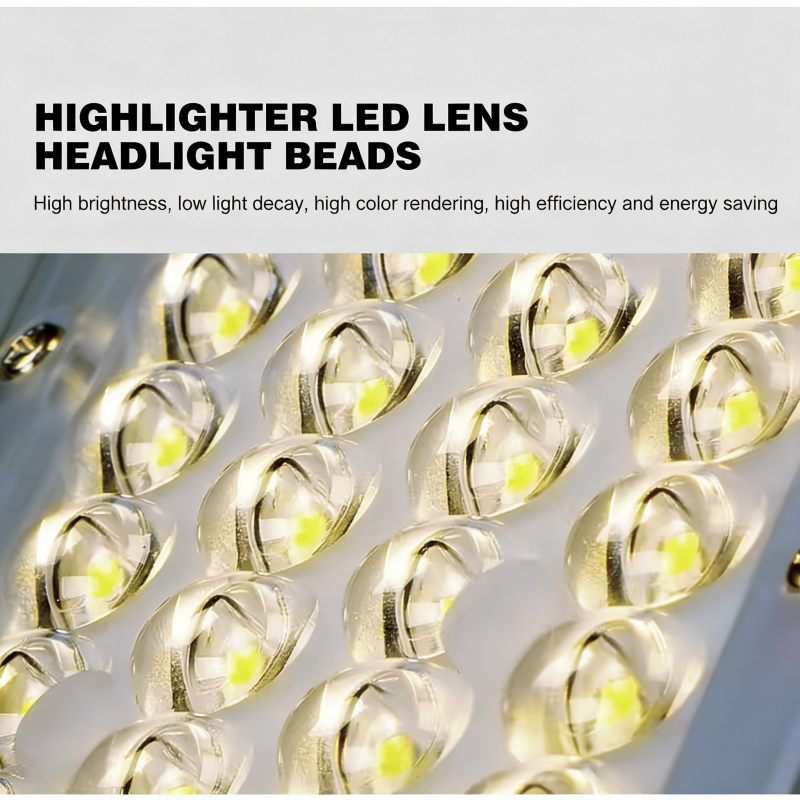

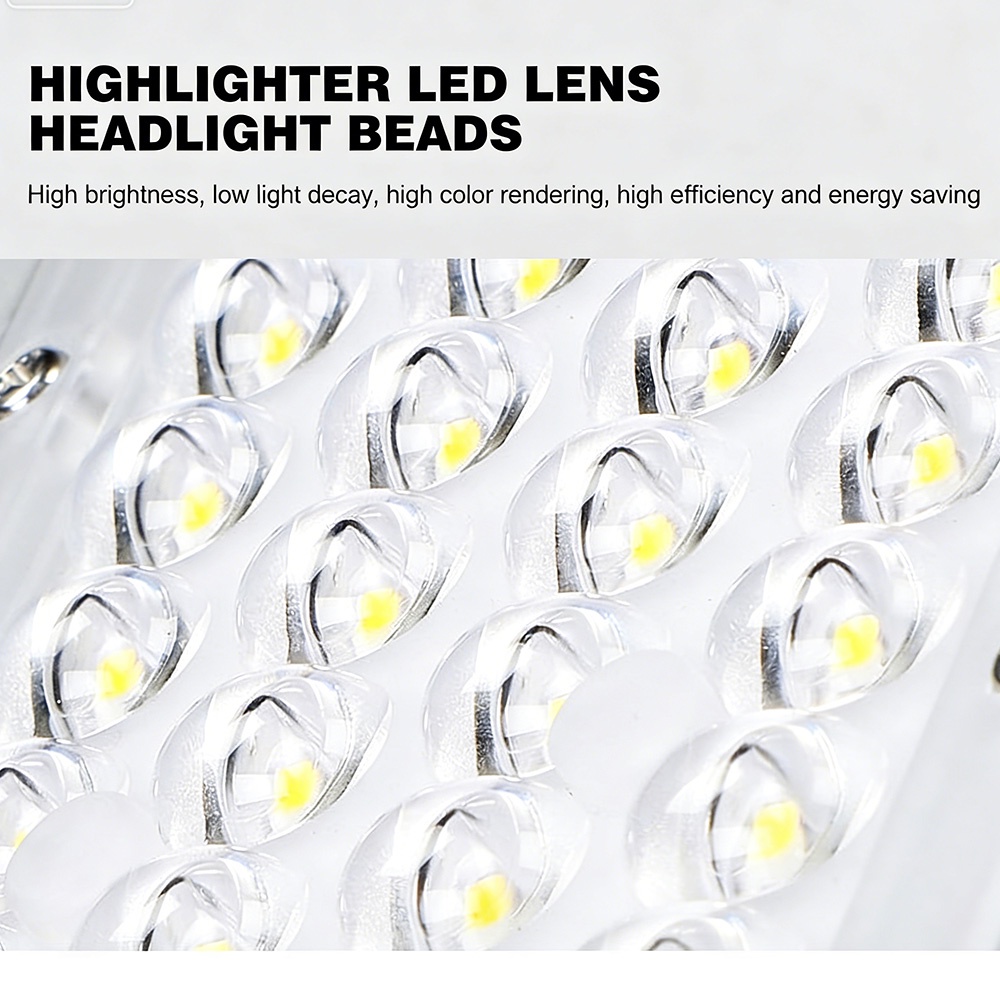

| Light Bead/Light Socket Types | 5054 SMD LED 52PCS / 5054 SMD LED 48PCS |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |
| Reflector Angle | 70×140° |
| Luminous Efficacy | 160-180LM/W |
| Color Render Index | Ra:70 |
| Main Color | Gray |
| Working Temperature | -20℃ ~ +65℃ |

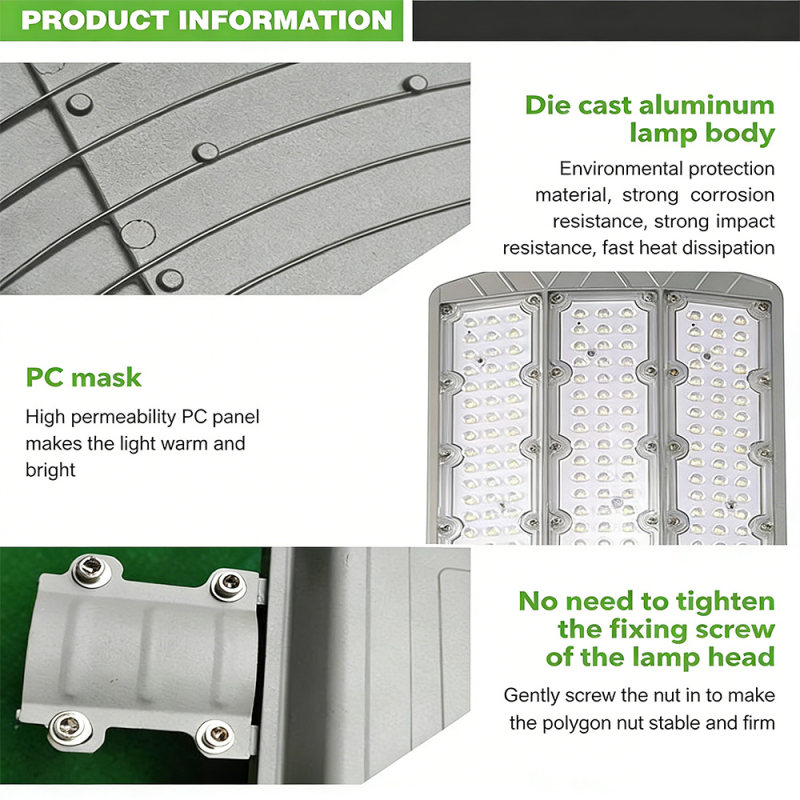

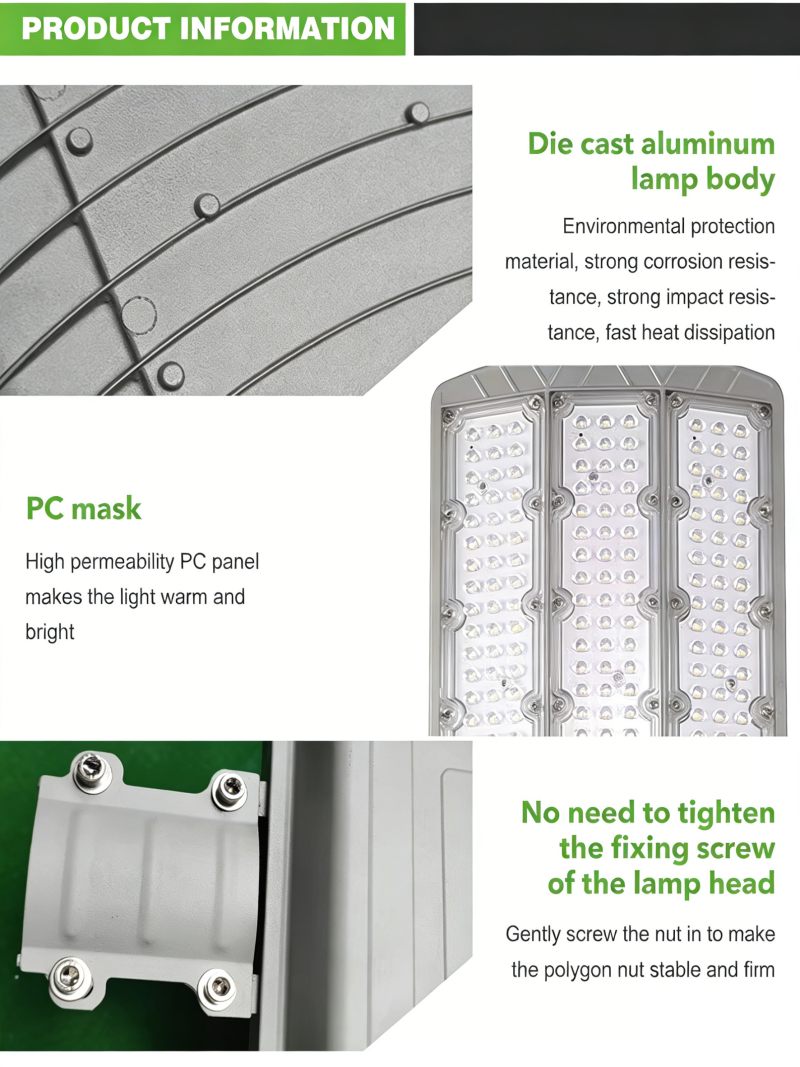

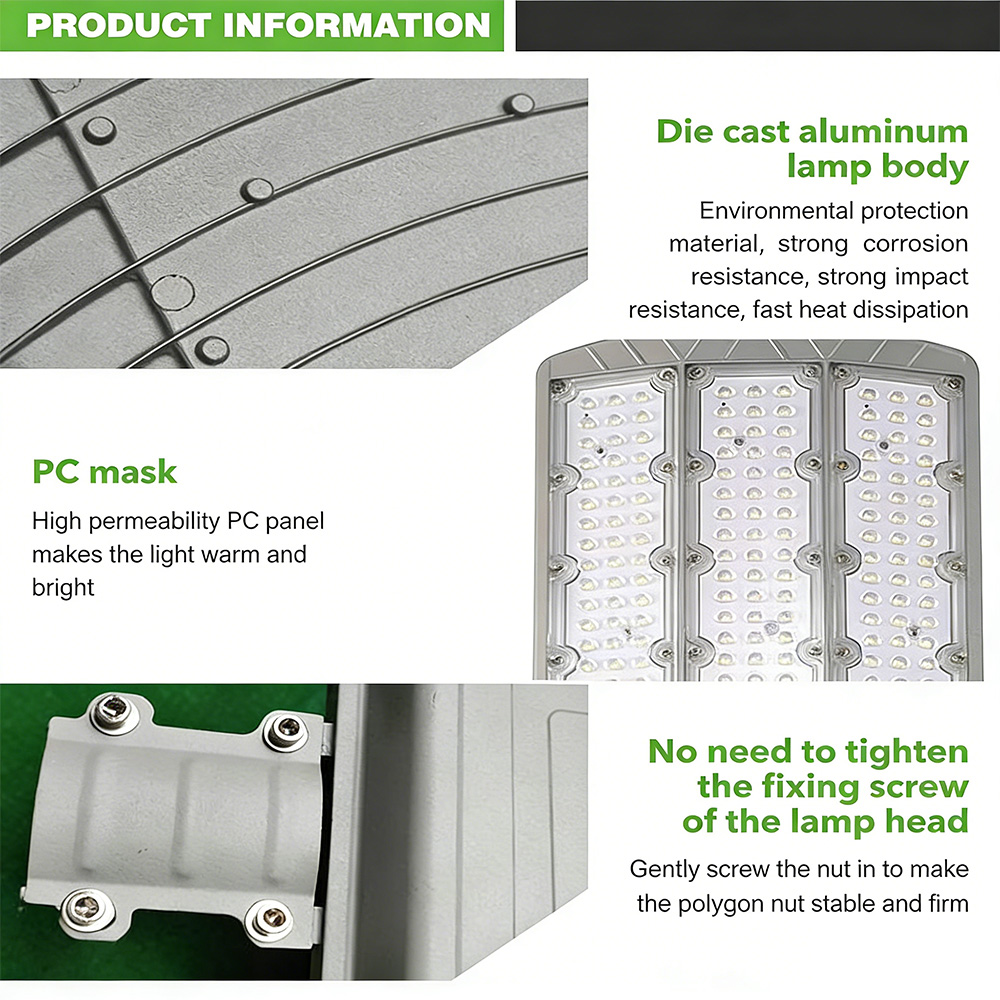

| Product Material | Aluminum + PC lens |
| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |
| Installation Height | 4~5m |
| Installation Spacing | 8~10m |
| Product Dimension | 520×200×90mm / 550×230×90mm |
| Product Net Weight | 800g Battery not included / 975g Battery not included |
| Package Dimension | Luminaire packaging:Inner box:23.5×9.5×56cm Color box; Outer box:57.5×49.5×25cm-5PCS/CTNSolar panel packaging:Inner box:36×3×71.5cm Color box; Outer box:73.5×16.5×37.5-5PCS/CTNLuminaire packaging:Inner box:27×8.5×60cm Color box; Outer box:61.5×44.5×28.5cm-5PCS/CTNSolar panel packaging:Inner box:46×3×69CM Color box; Outer box:71×19×47CM-5PCS/CTN |
