| Product Model | QF-TSS-HL3-027 |
| Rated Power | 200W / 300W / 400W |
| PV Panel Specifications | Default-Customizable 6V/50W / Default-Customizable 6V/70W / Default-Customizable 6V/90W |
| Battery Specifications | 3.2V/30Ah / 3.2V/60Ah / 3.2V/100Ah |
| Charge Time | 6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2~3 Days of endurance/power reserve in overcast or rainy conditions |
| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |
| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |
| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |

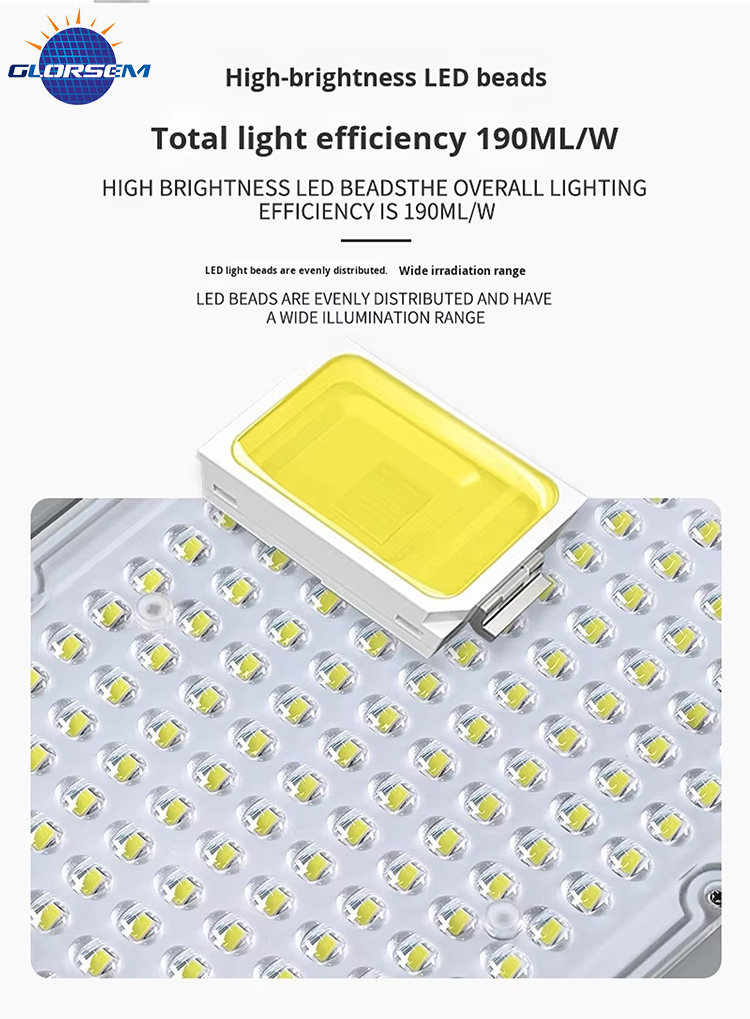

| Light Bead/Light Socket Types | 5054 SMD LED 60PCS / 5054 SMD LED 100PCS / 5054 SMD LED 180PCS |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |

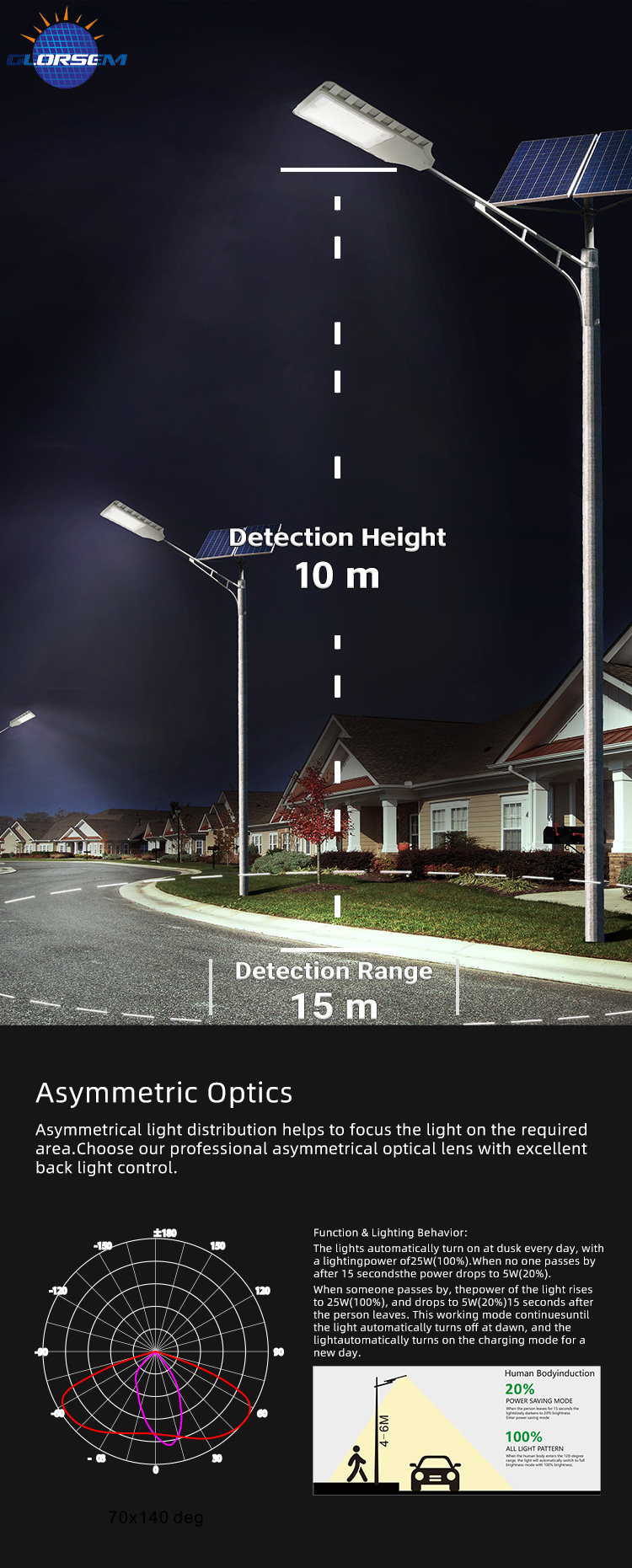

| Reflector Angle | 70×140° |
| Luminous Efficacy | 170-200LM/W |
| Color Render Index | Ra:70 |
| Main Color | Sand Black |
| Working Temperature | -20℃ ~ +65℃ |

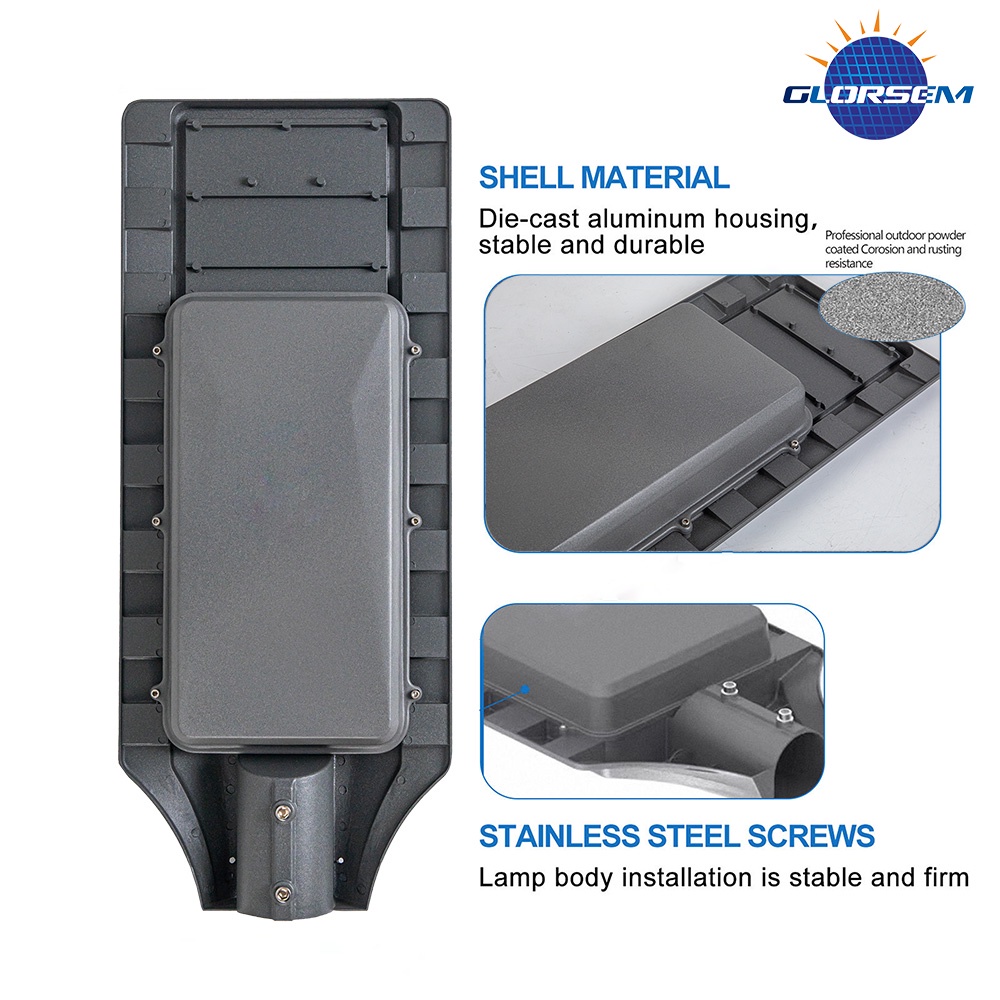

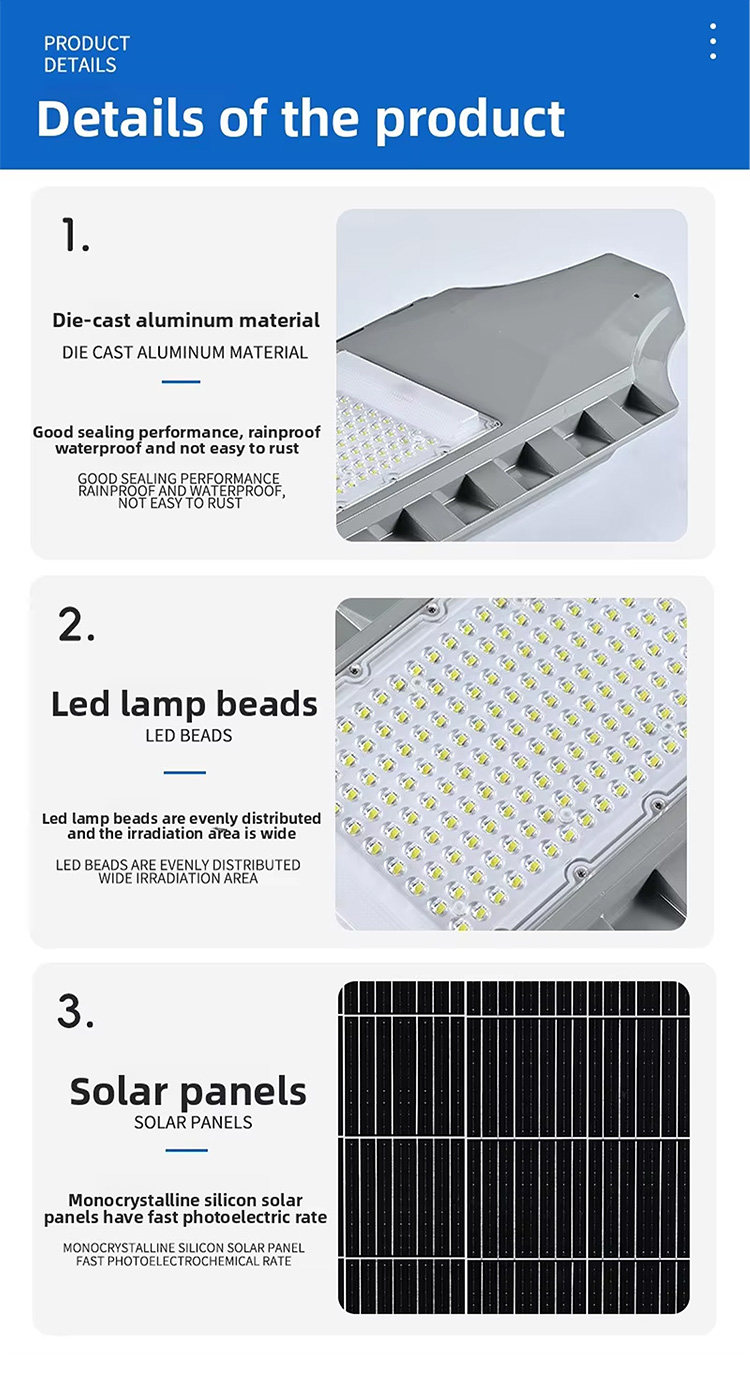

| Product Material | Aluminum + PC lens |
| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |
| Installation Height | 4~5m / 7~8m / 8~10m |
| Installation Spacing | 10~15m |
| Product Dimension | 500×206×87mm / 580×240×93mm / 680×305×87mm |
| Product Net Weight | 2.2Kg / 3.4Kg / 5.2Kg |
