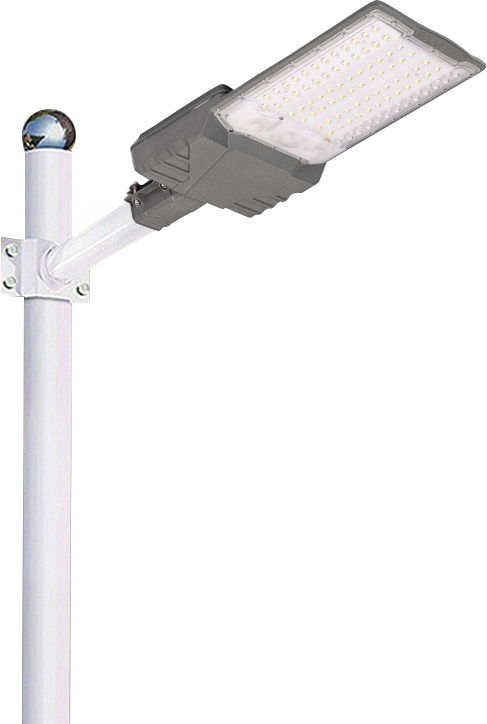

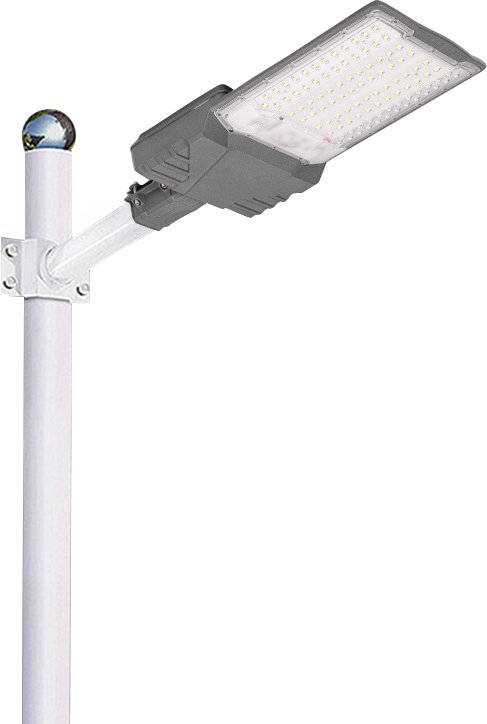

| Product Model | QF-TSS-HF2-016 |
| Rated Power | 100W / 150W |
| PV Panel Specifications | Customizable 44567025/6V/48W Monocrystalline silicon solar panelCustomizable 82067030/6V/100W Monocrystalline silicon solar panel |
| Battery Specifications | 3.2V/40Ah / 3.2V/80Ah |
| Charge Time | 6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2~3 Days of endurance/power reserve in overcast or rainy conditions |
| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |
| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |
| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |
| Light Bead/Light Socket Types | 5054 SMD LED 92PCS / 5054 SMD LED 98PCS |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |
| Reflector Angle | 70*140° |
| Luminous Efficacy | 160-180LM/W |
| Color Render Index | Ra:70 |
| Main Color | Gray |
| Working Temperature | -20℃ ~ +65℃ |
| Product Material | Aluminum + PC lens |
| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |
| Installation Height | 4~5m |
| Installation Spacing | 8~10m |
| Product Dimension | 55023085mm / 59026080mm |
| Product Net Weight | 1.160Kg Battery not included / 1.278Kg Battery not included |
| Package Dimension | Luminaire packaging:Inner box:23.59.556cm Color boxOuter box:57.549.525cm-5PCS/CTNLuminaire packaging:Inner box:278.560cm Color boxOuter box:61.544.528.5cm-5PCS/ |
