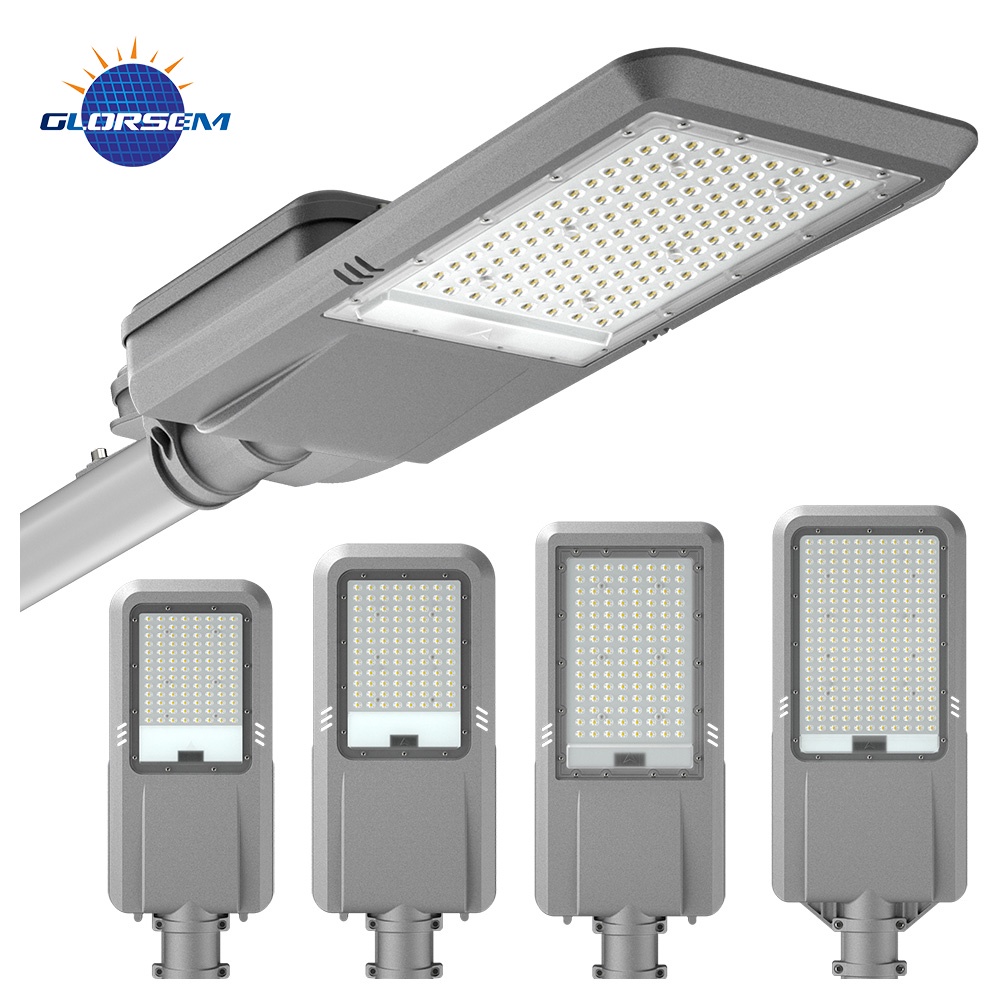

| Product Model | QF-TSS-JD-020 |
| Rated Power | 60W / 100W / 150W / 200W / 300W |
| PV Panel Specifications | Default-Customizable 6V/50W / Default-Customizable 6V/70W / Default-Customizable 6V/90W / Default-Customizable 6V/100W / Default-Customizable 6V/120W |
| Battery Specifications | 3.2V/40Ah / 3.2V/60Ah / 3.2V/75Ah / 3.2V/95Ah / 3.2V/115Ah |
| Charge Time | 6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2~3 Days of endurance/power reserve in overcast or rainy conditions |

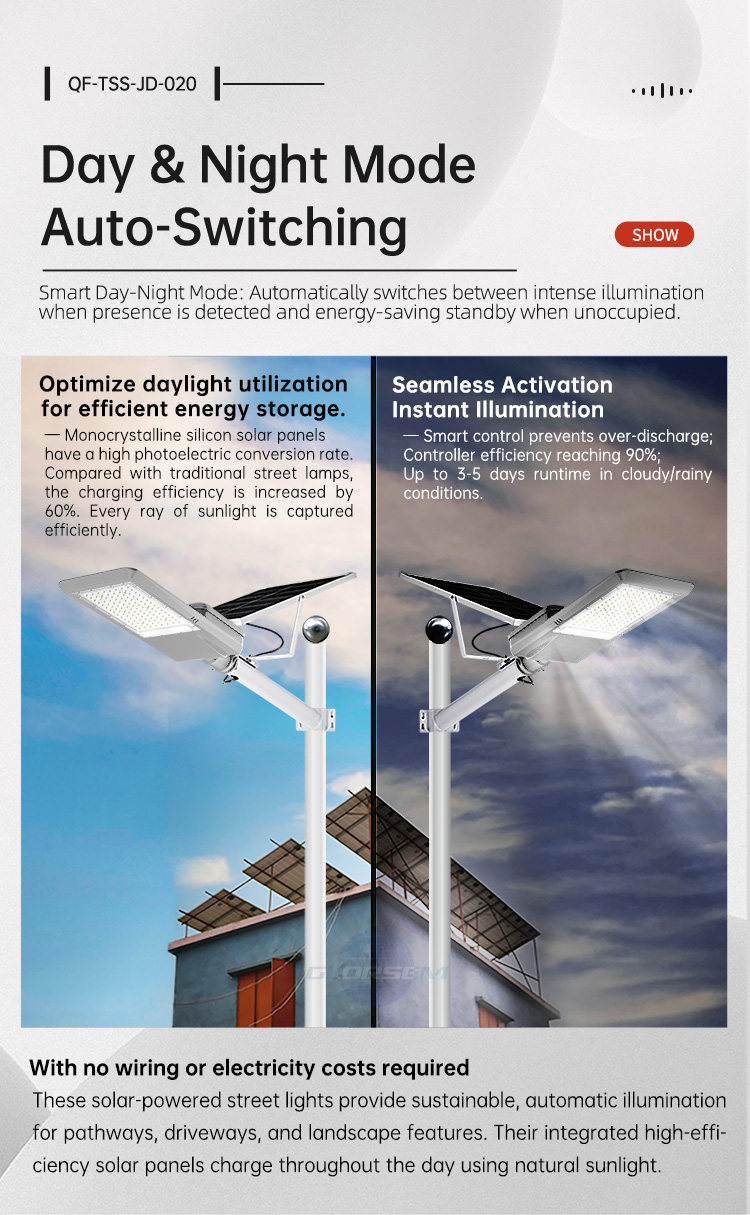

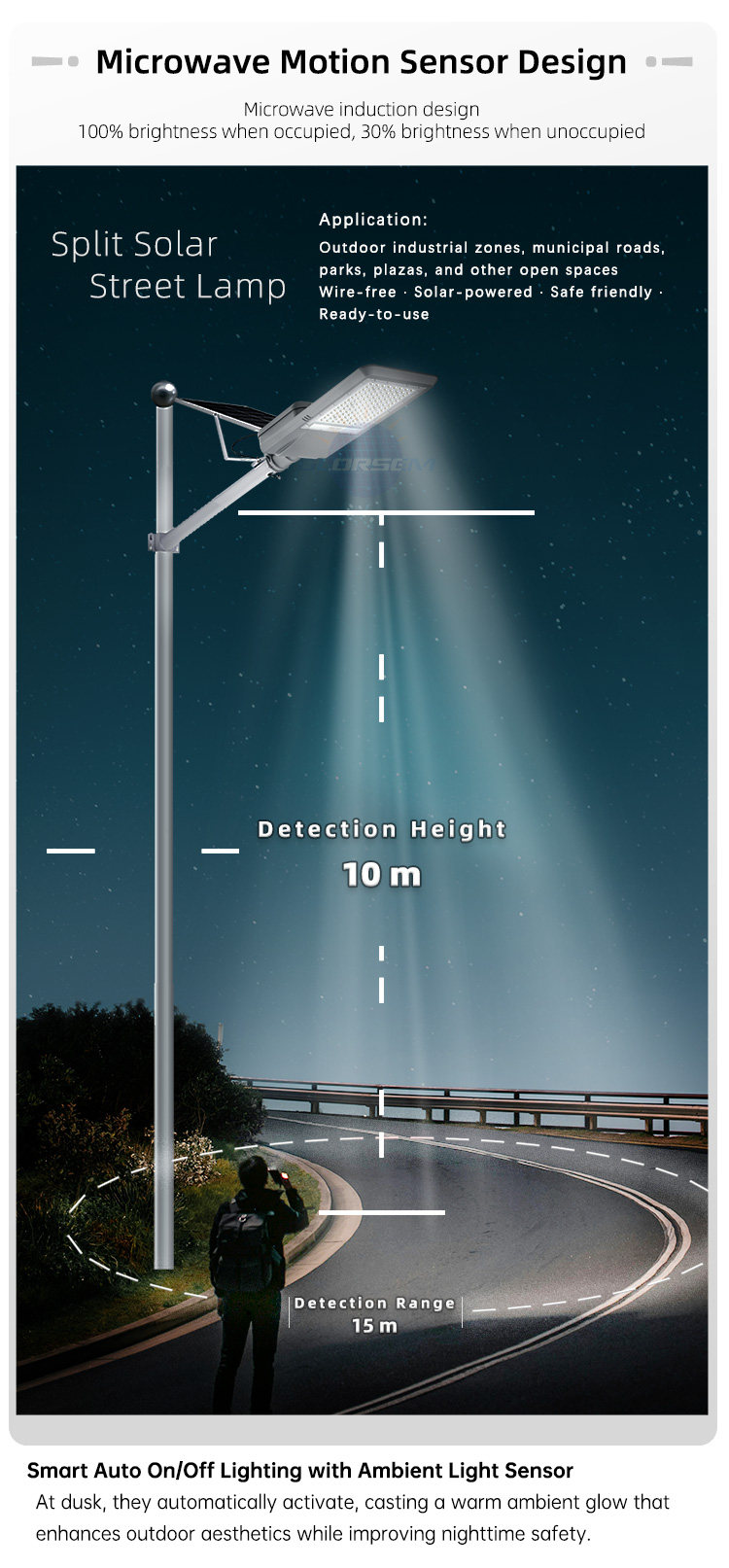

| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |
| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |
| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |
| Light Bead/Light Socket Types | 60W: 3030/5050/12B5C/60B1C100W: 3030/24B5C/120B1C150W: 3030/5050/150B1C/30B5C200W: 5050/40B5C/200B1C300W: 3030/60B5C/300B1C |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |

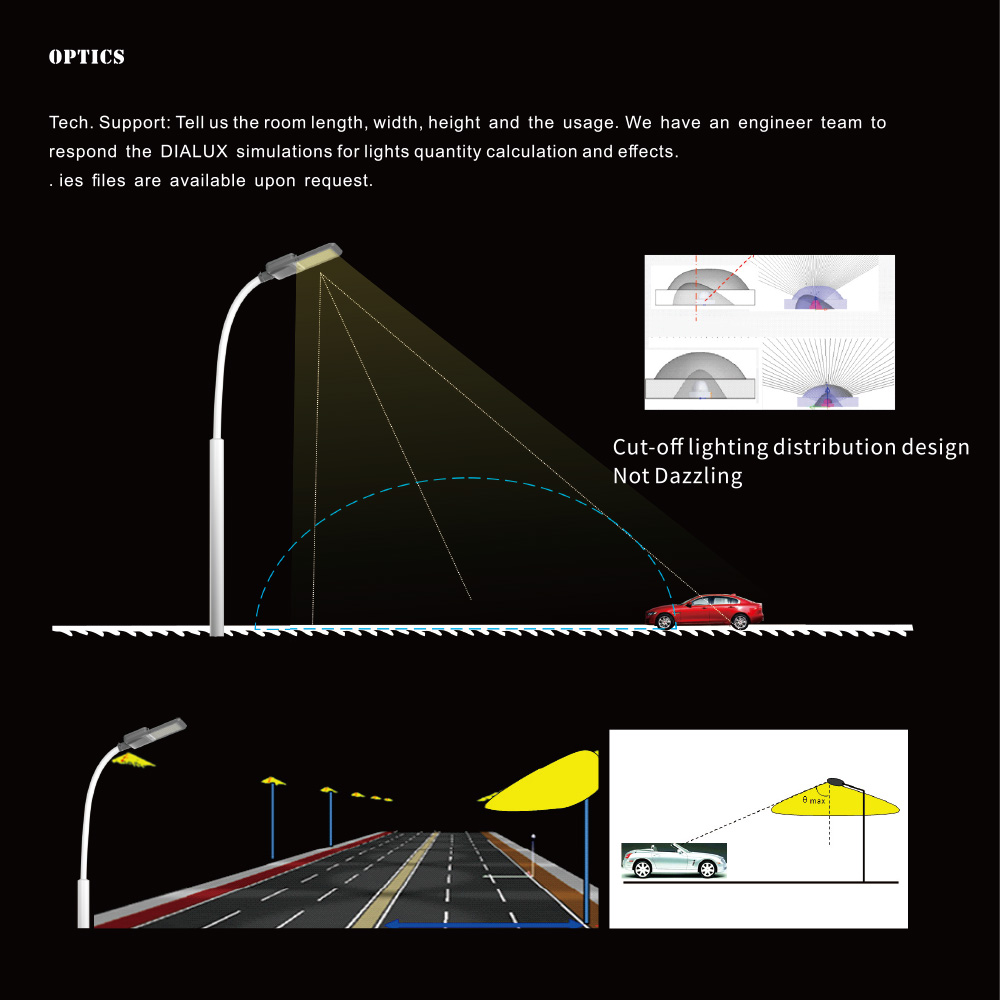

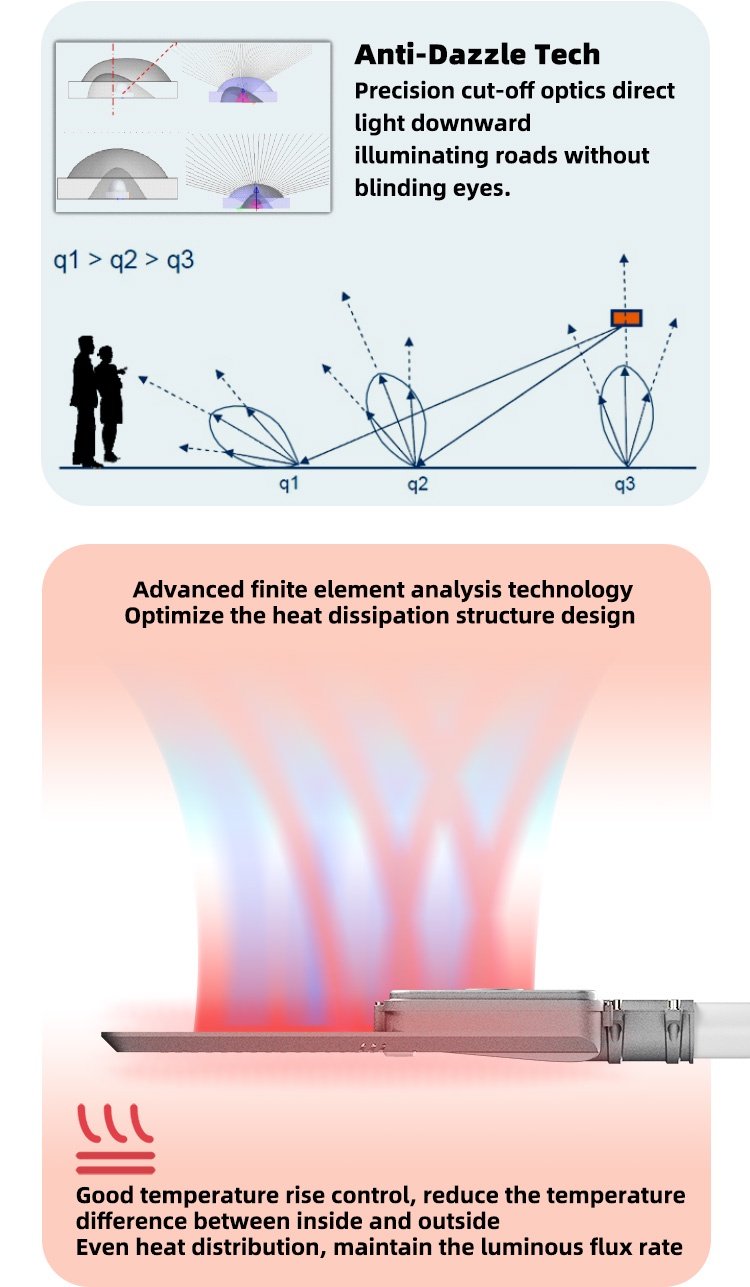

| Reflector Angle | 70×140° |
| Luminous Efficacy | 150-170LM/W |
| Color Render Index | Ra:70 |
| Main Color | Sand Black |
| Working Temperature | -20℃ ~ +65℃ |

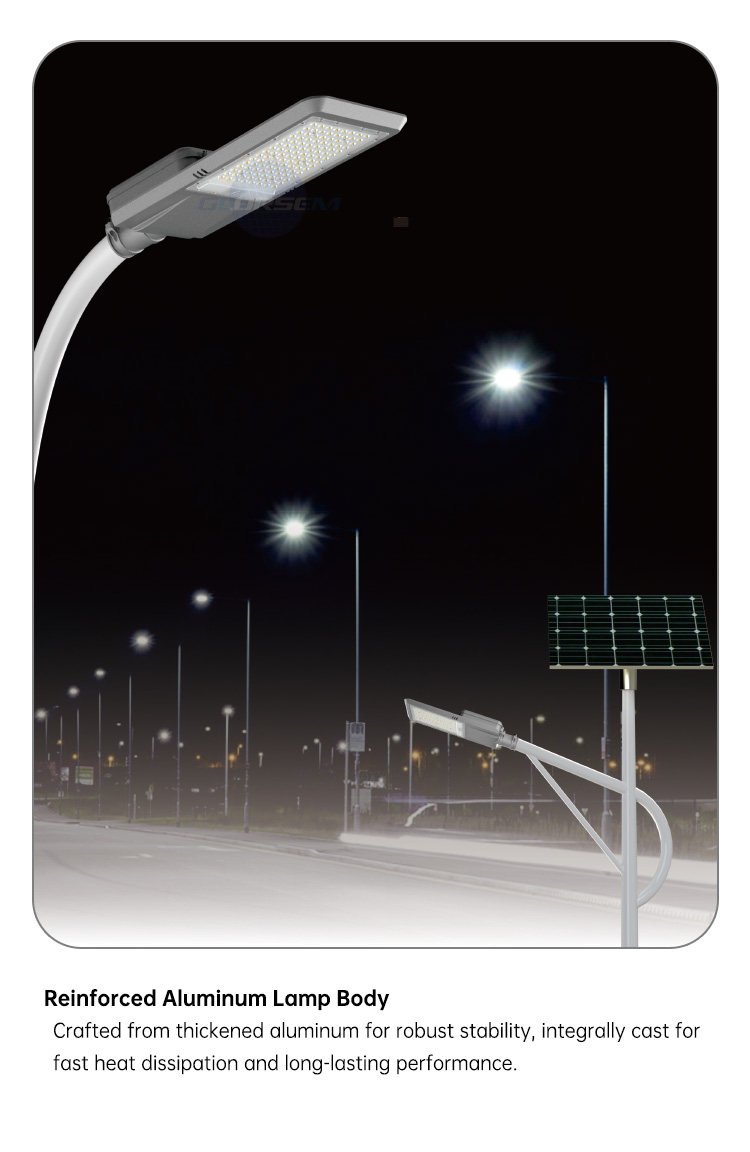

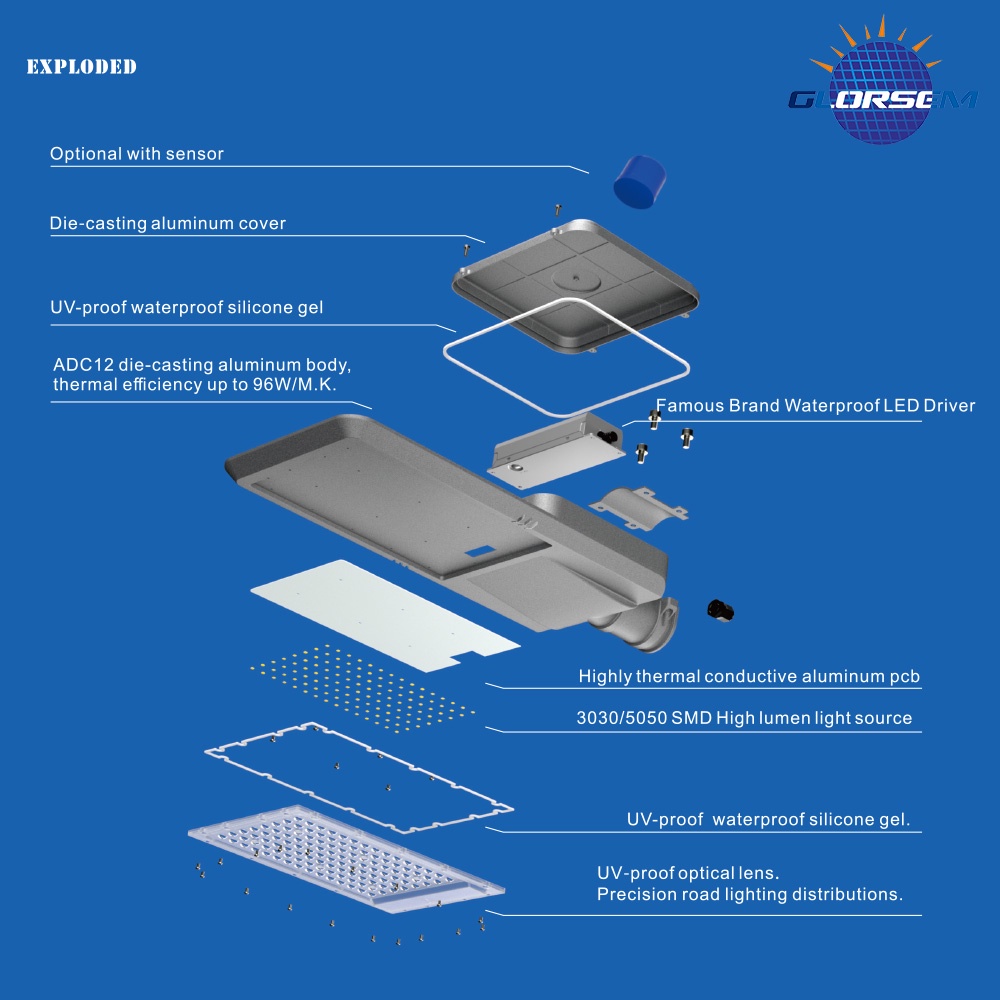

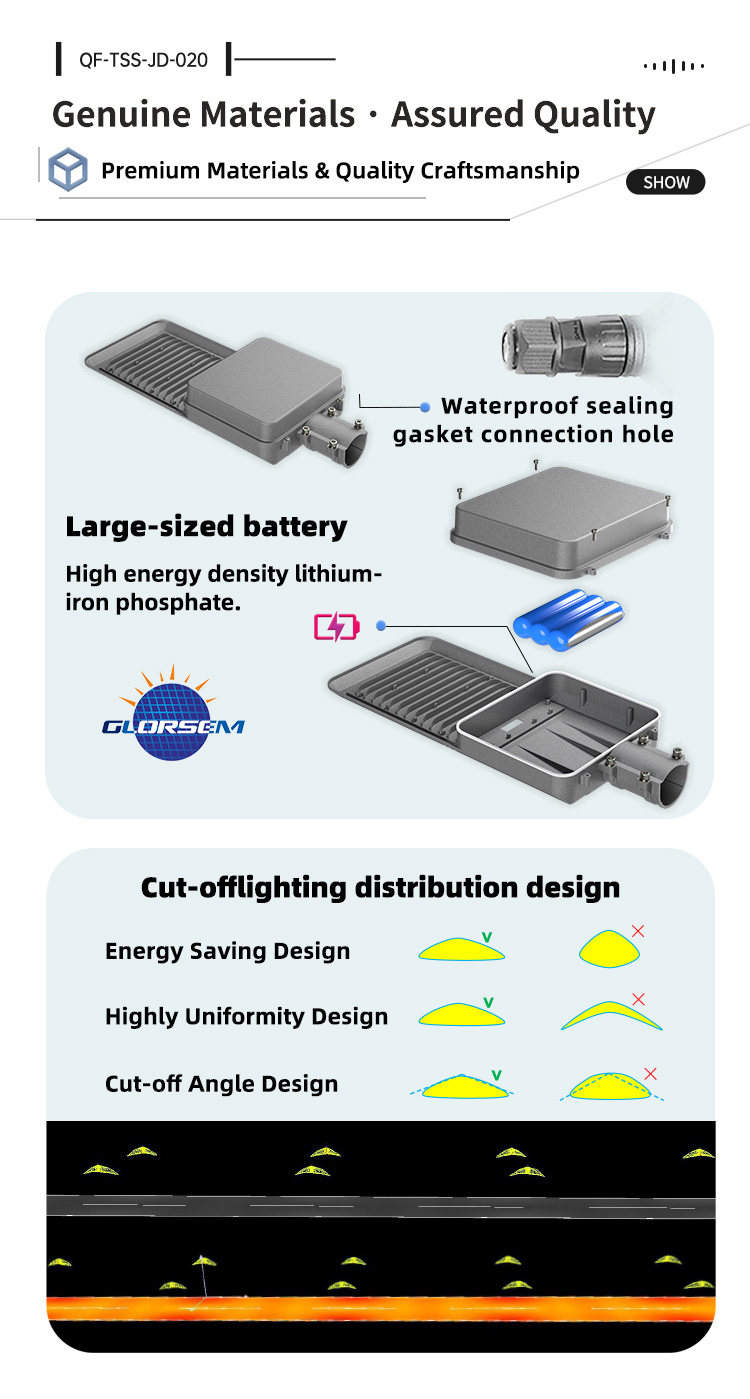

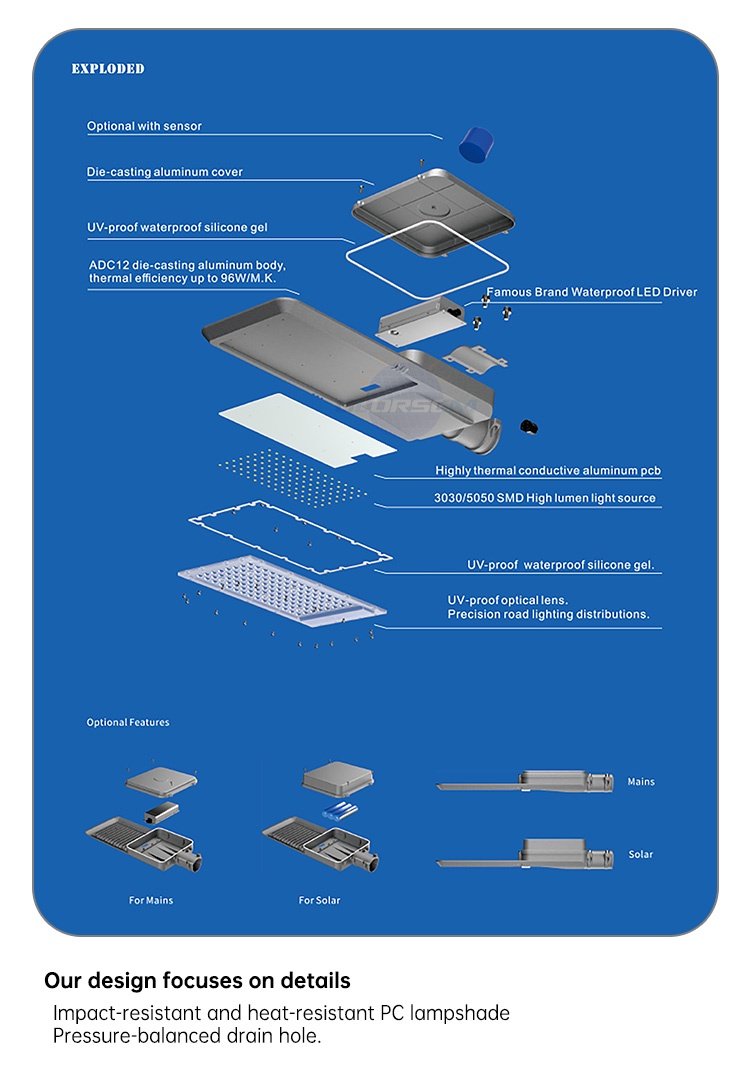

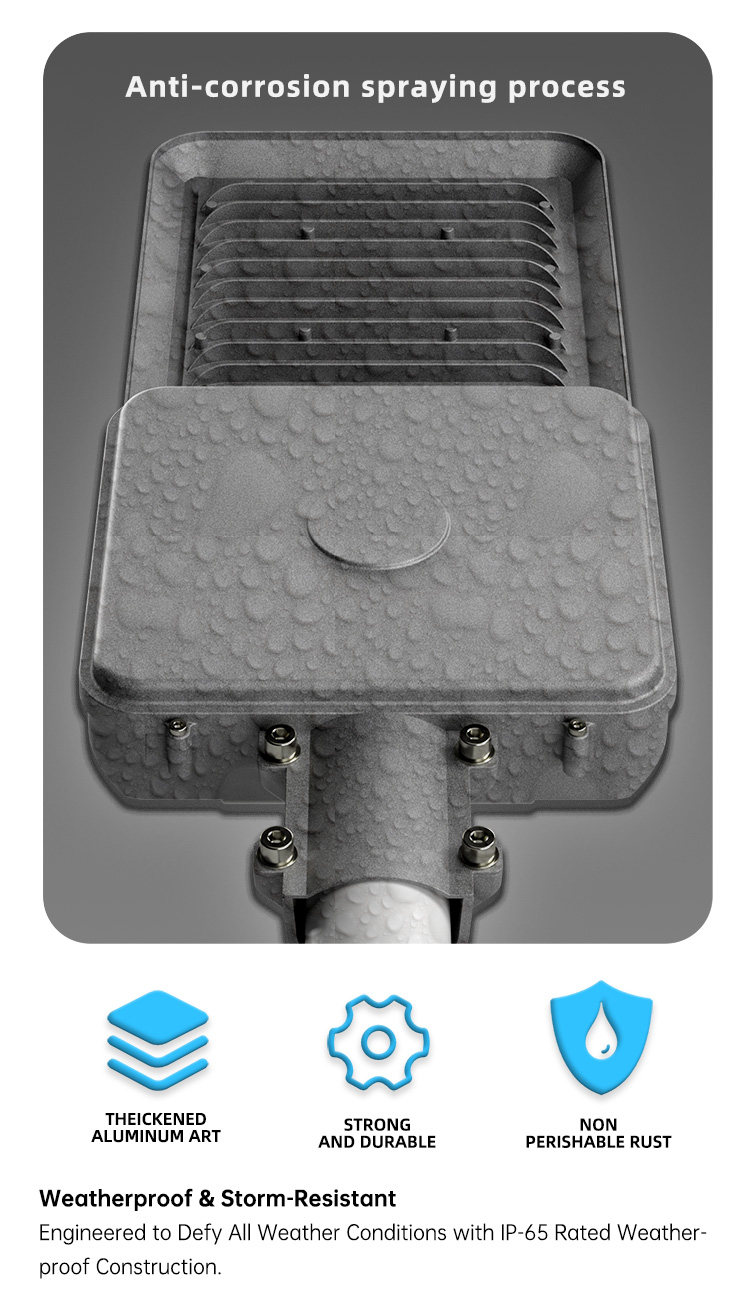

| Product Material | ADC12 Aluminum + PC lens |

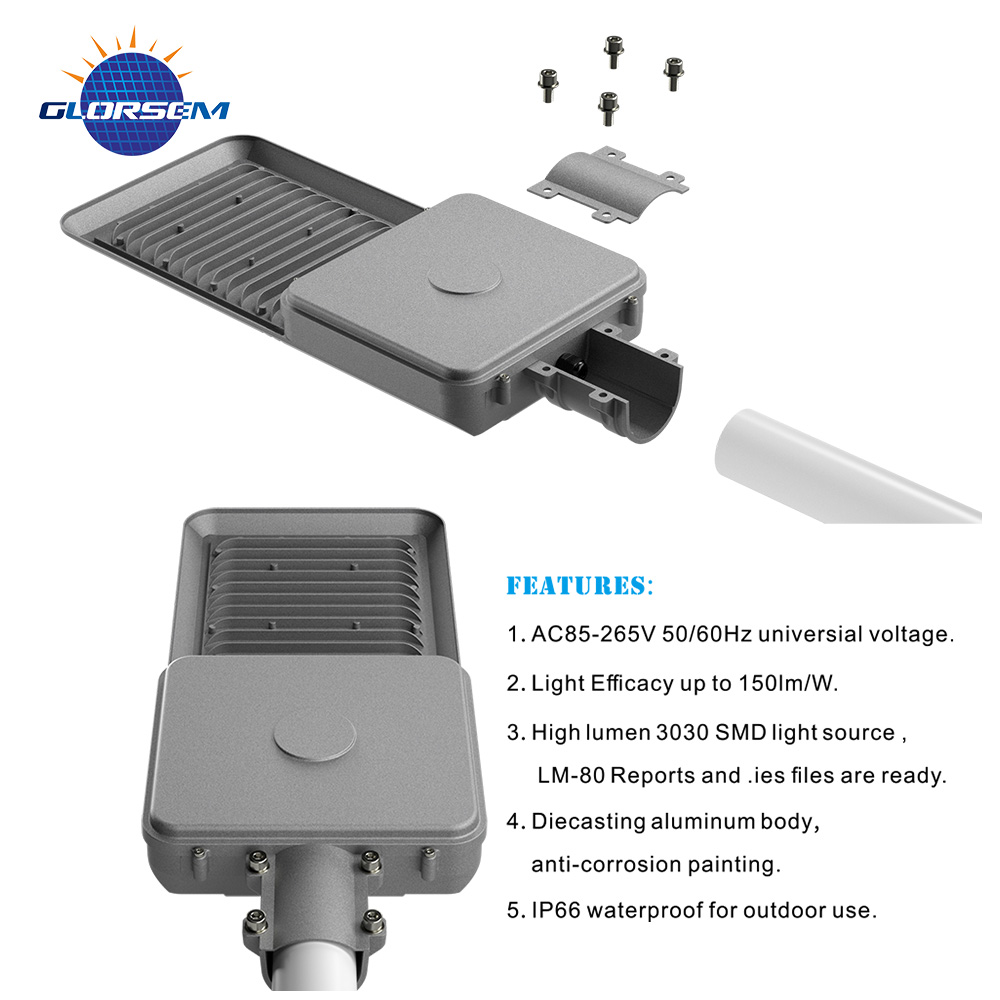

| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |

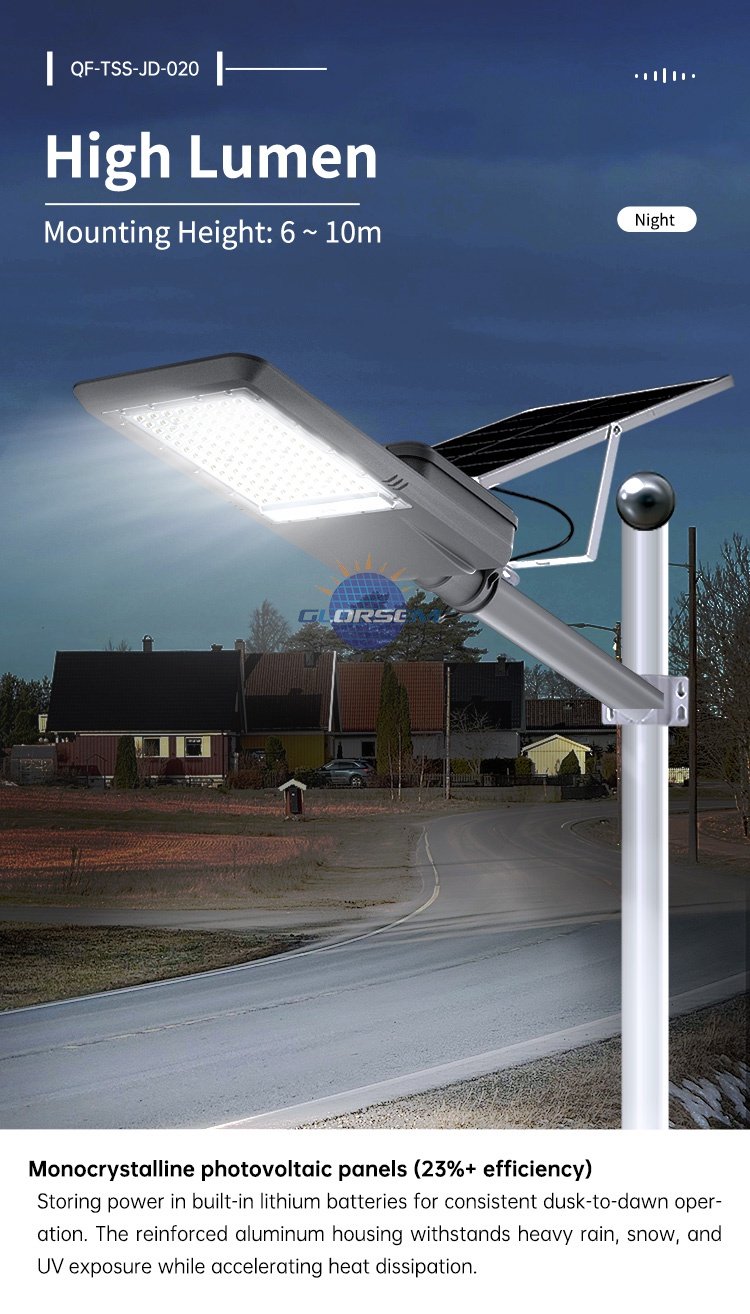

| Installation Height | 60W: 4~5m100W: 6~7m150W: 7~8m200W: 8~10m300W: 10~12m |
| Installation Spacing | 10~15m |

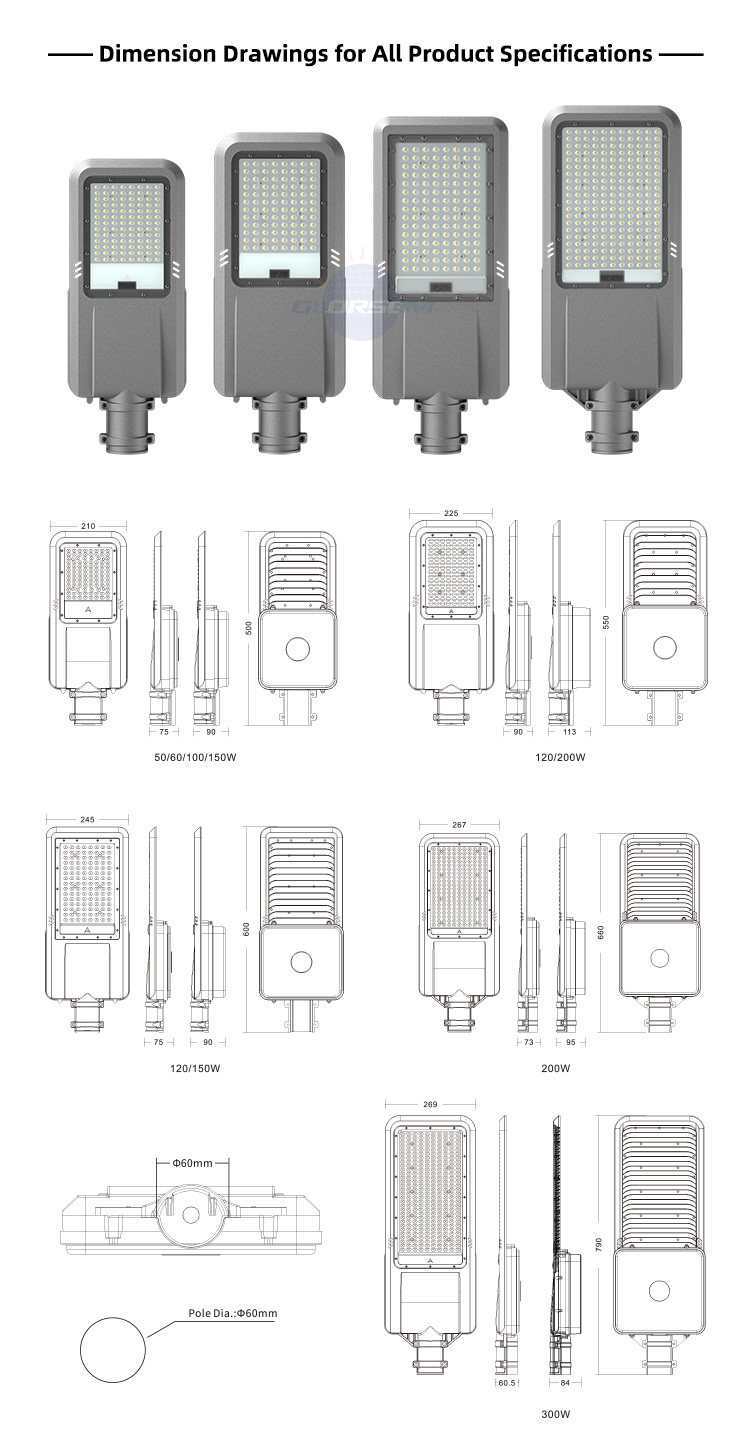

| Product Dimension | 60W: L500xW210xH90mm100W: L550xW225xH113mm150W: L600xW245xH90mm200W: L660xW267xH95mm300W: L790xW269xH84mm |
| Product Net Weight | 60W: 2.5Kg100W: 2.9Kg150W: 3.3Kg200W: 3.8Kg300W: 4.5Kg |
