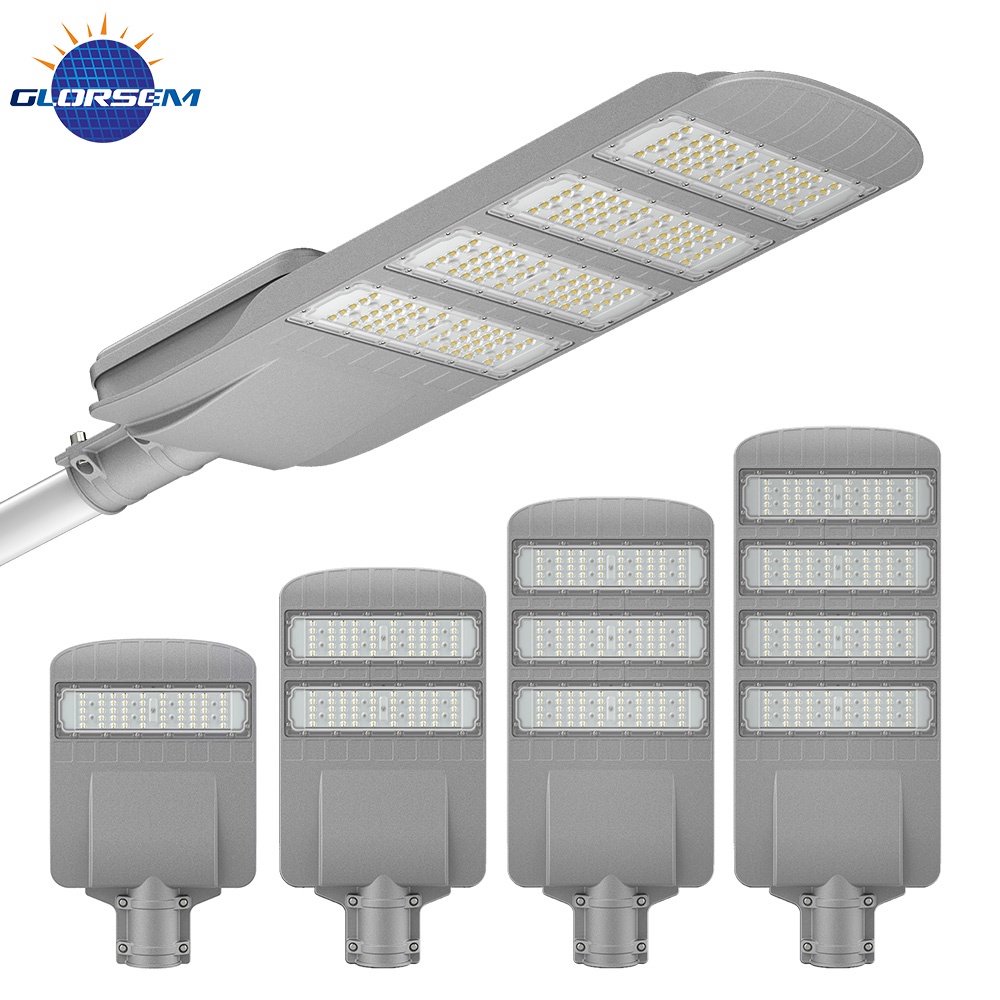

| Product Model | QF-TSS-MH-026 |
| Rated Power | 50W / 100W / 150W / 200W / 250W |
| PV Panel Specifications | Customizable 6V/45W / Customizable 6V/60W / Customizable 6V/80W / Customizable 6V/90W / Customizable 6V/100W |
| Battery Specifications | 3.2V/30Ah / 3.2V/40Ah / 3.2V/45Ah / 3.2V/45Ah / 3.2V/60Ah |
| Charge Time | 6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2~3 Days of endurance/power reserve in overcast or rainy conditions |
| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |

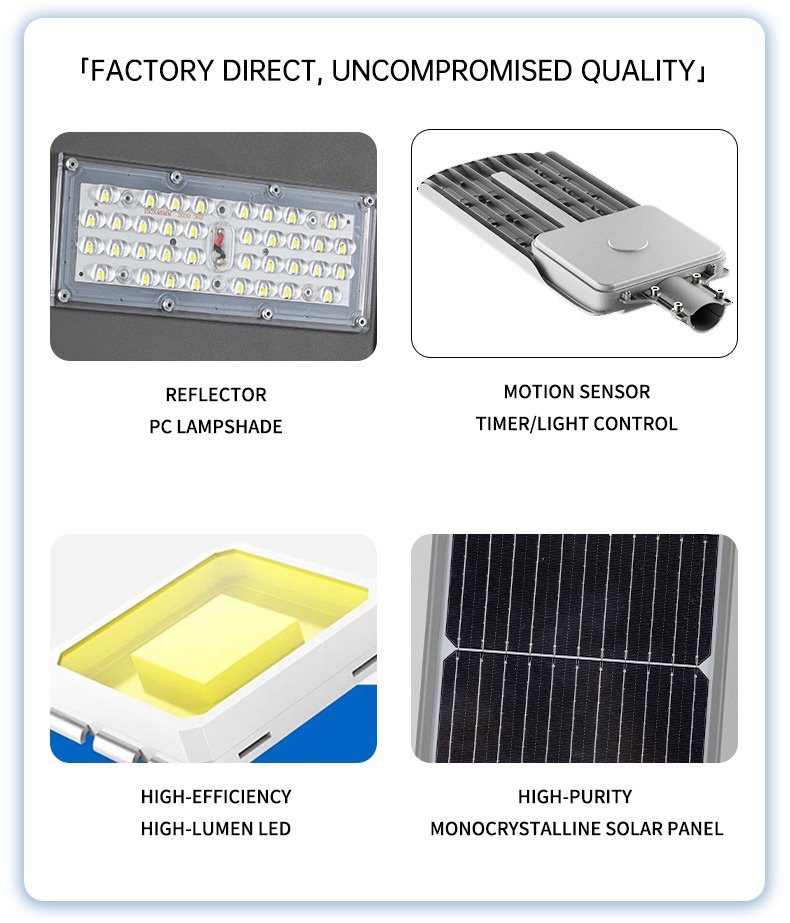

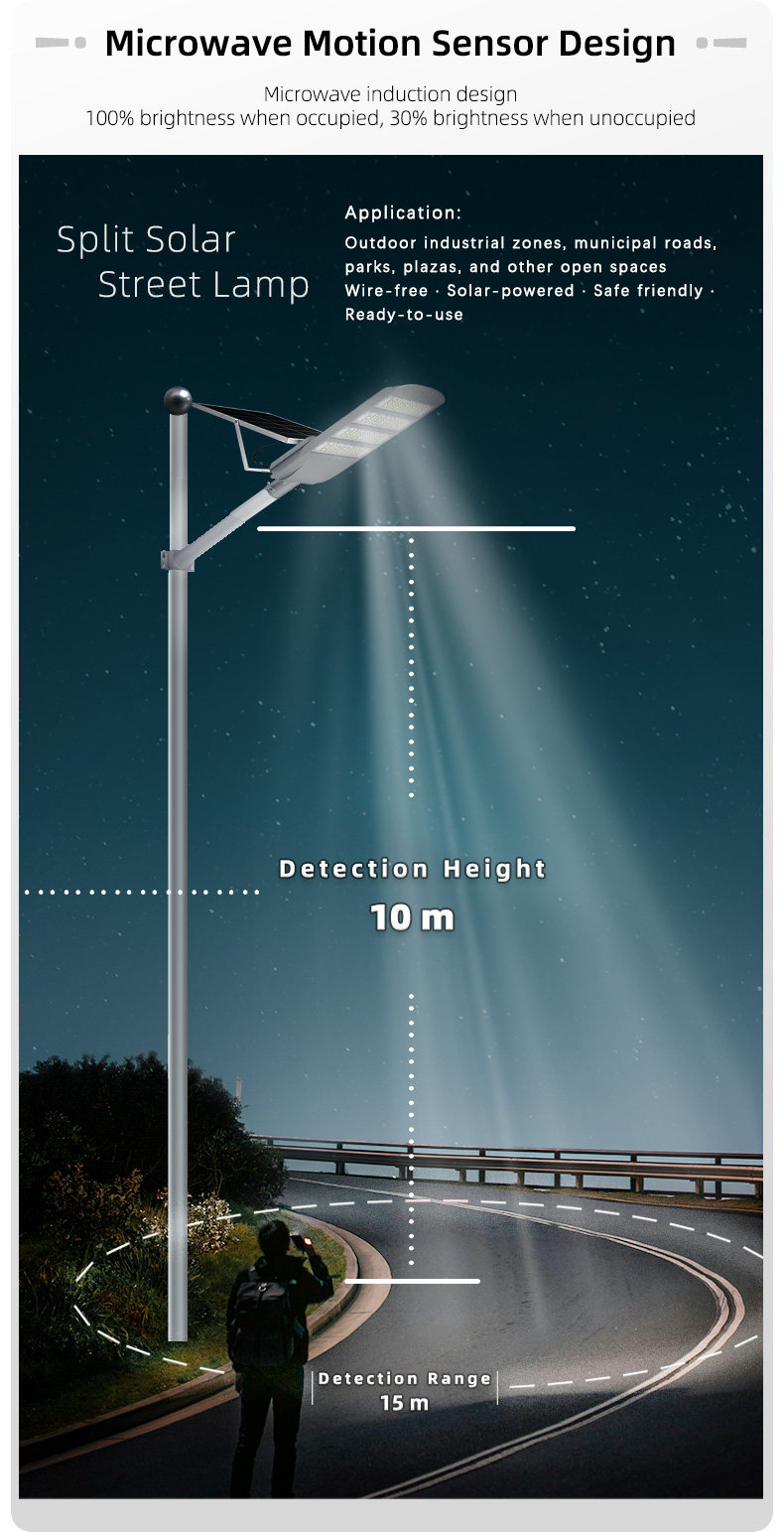

| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |
| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |
| Light Bead/Light Socket Types | Aluminum substrate: 3030 aluminum substrate 11B5C/8B7C/10B5C/8B5C/6B5C; 5050 board 30PCS: 15B2C/30B1C/6B5C; 5050 aluminum substrate 50PCS:10B5C |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |

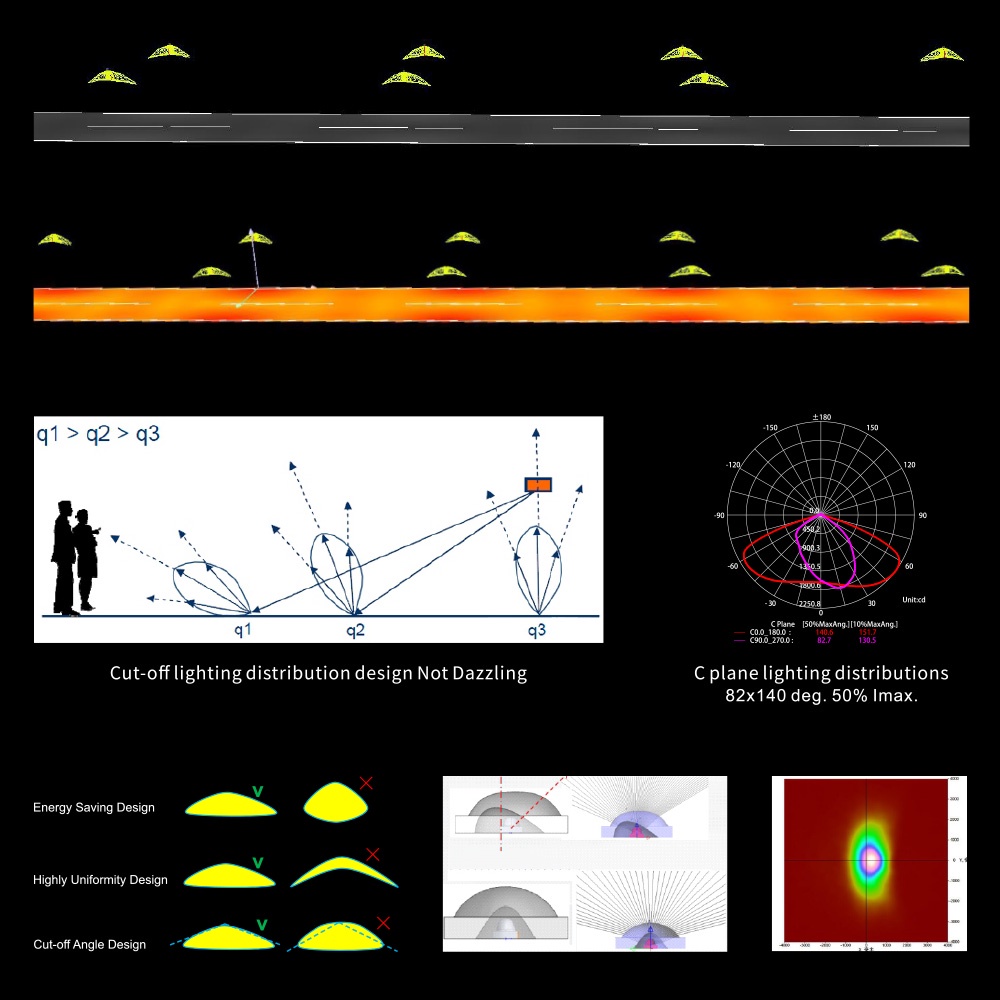

| Reflector Angle | 70×140° |
| Luminous Efficacy | 170-200LM/W |
| Color Render Index | Ra:70 |
| Main Color | Sand Black |
| Working Temperature | -20℃ ~ +65℃ |

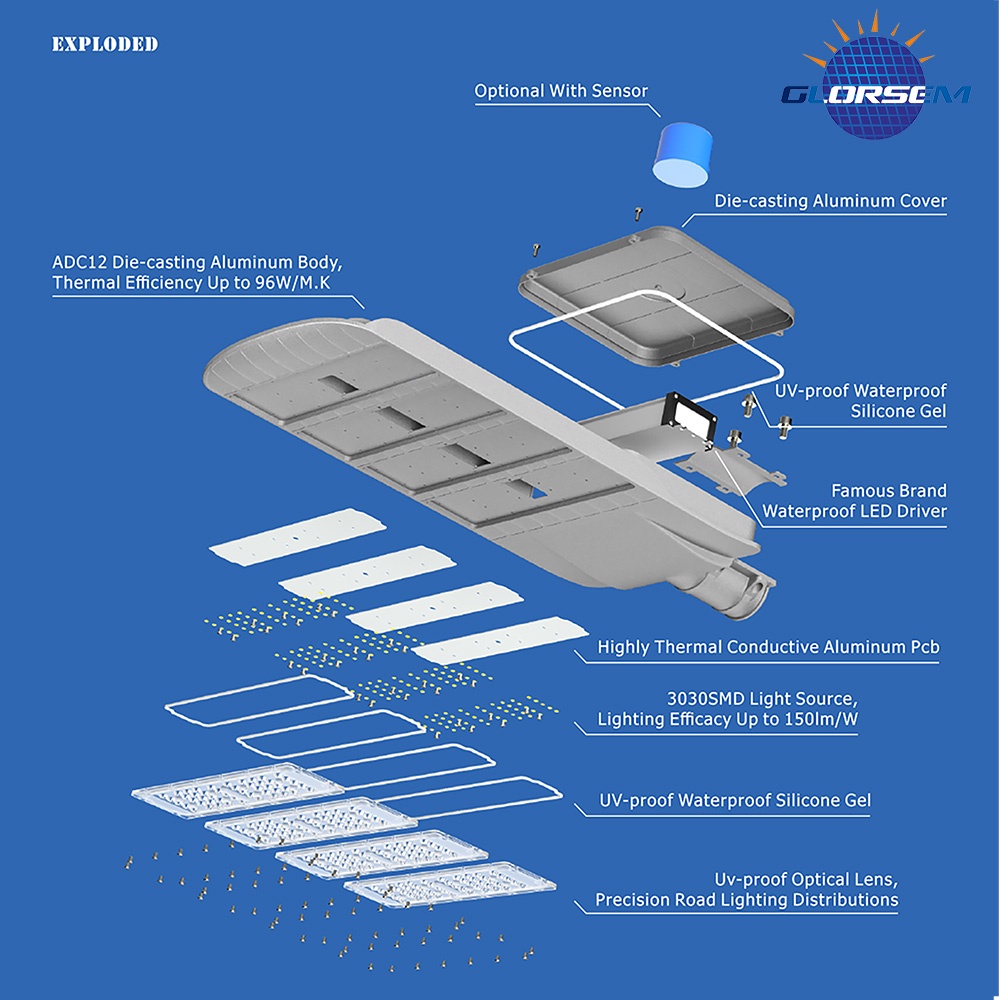

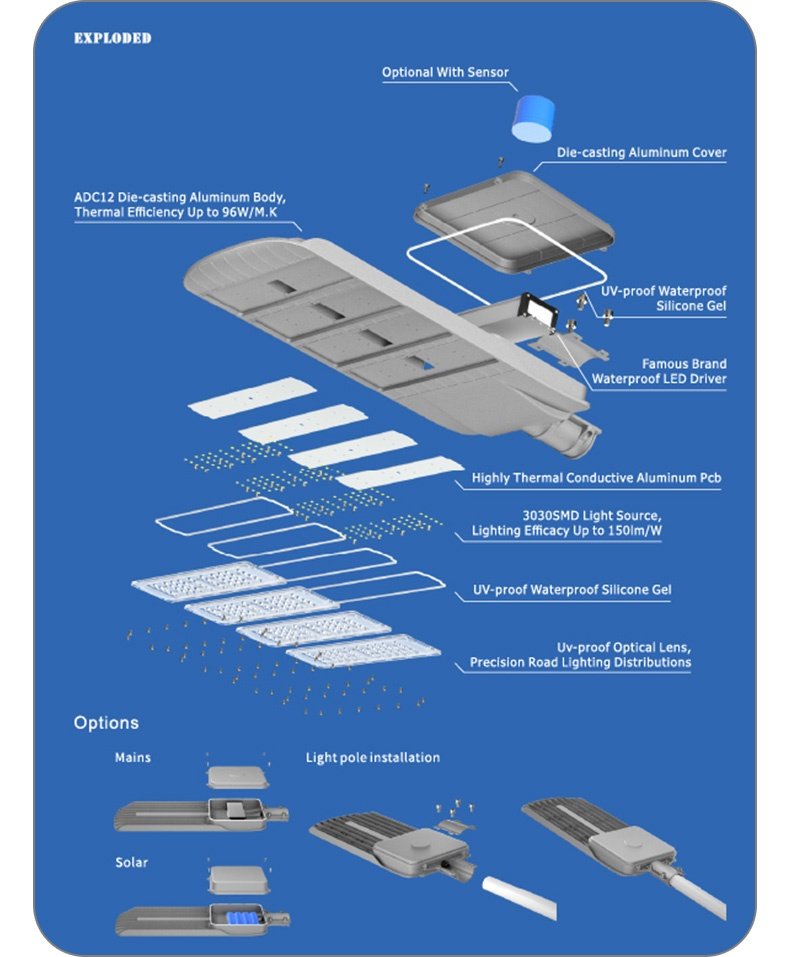

| Product Material | ADC12 Aluminum + PC lens |

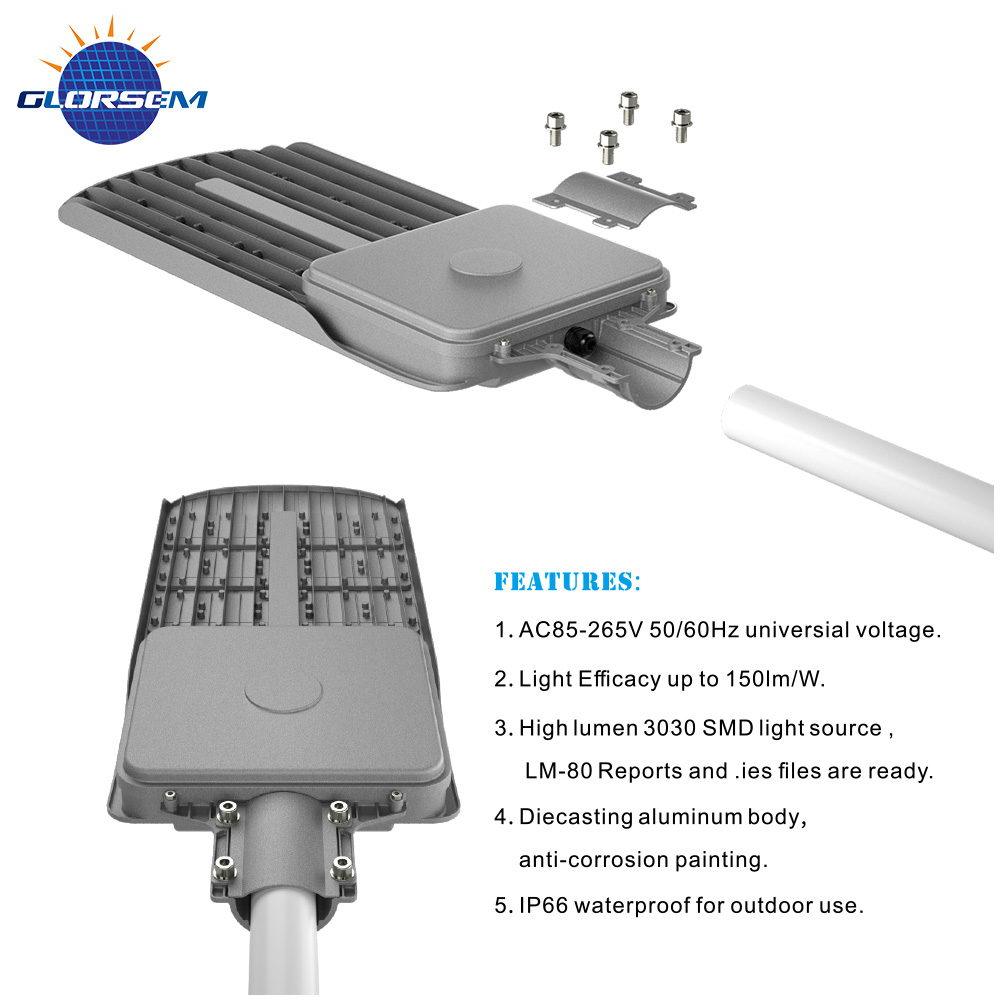

| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |
| Installation Height | 4~5m / 4~5m / 5~6m / 5~6m / 7~8m |
| Installation Spacing | 8~10m / 8~10m / 8~10m / 10~12m / 15~20m |

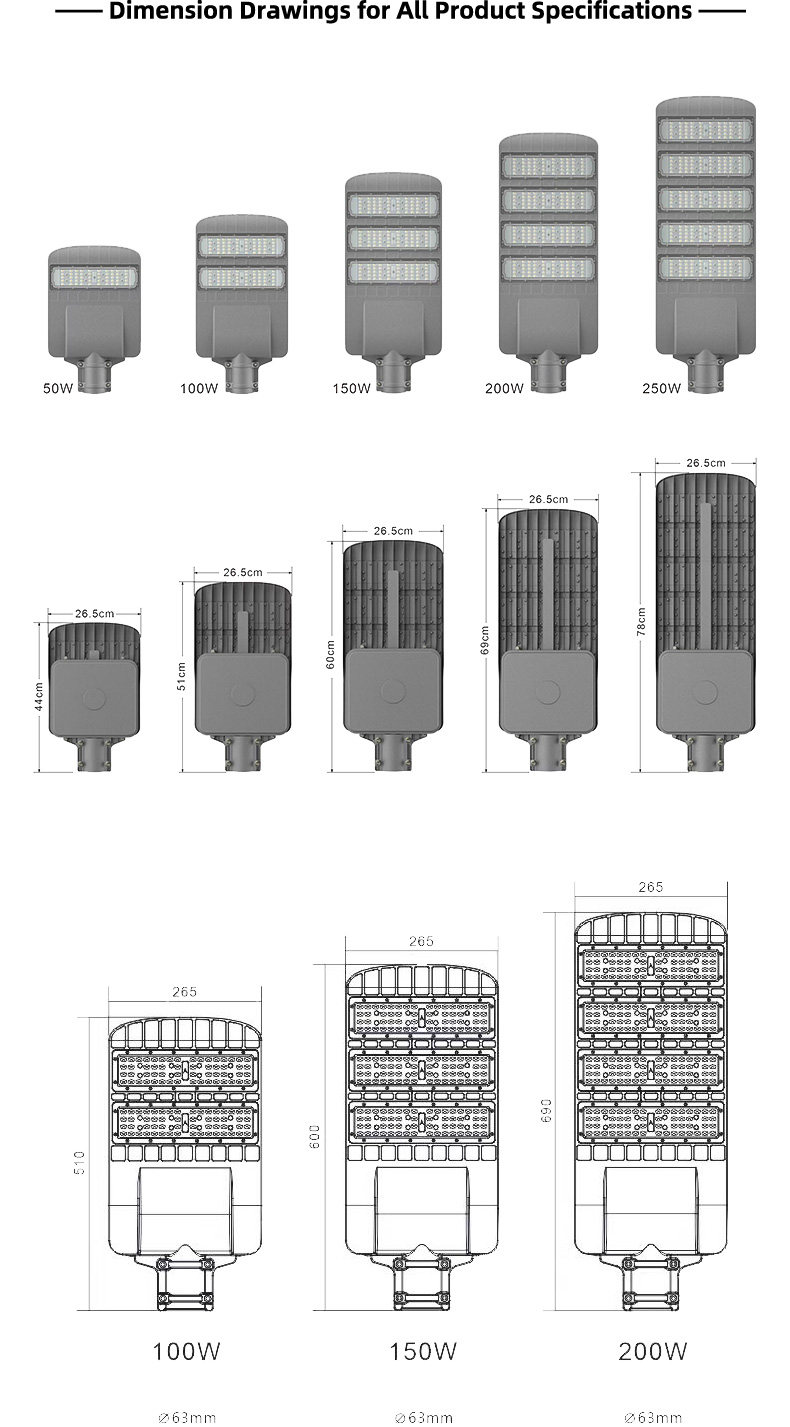

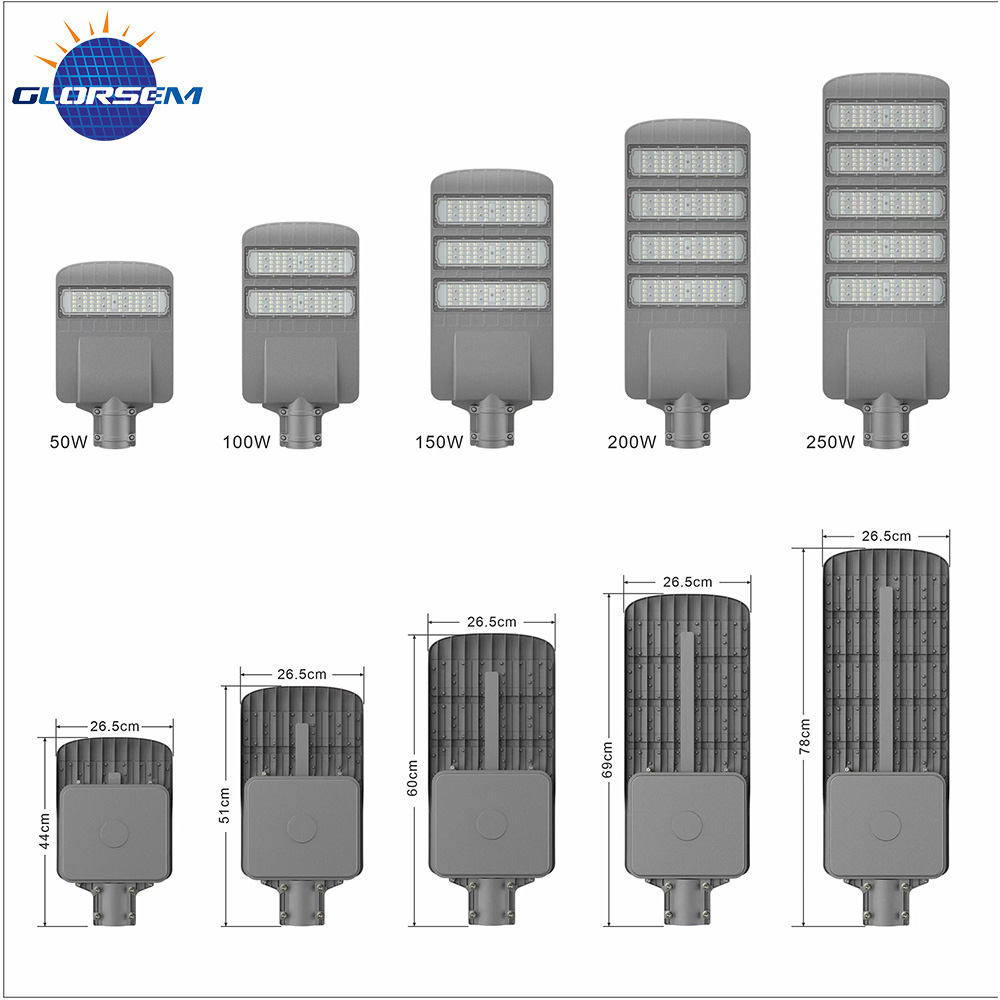

| Product Dimension | 41726390mm / 50726390mm / 59726390mm / 68726390mm / 77726390mm |
