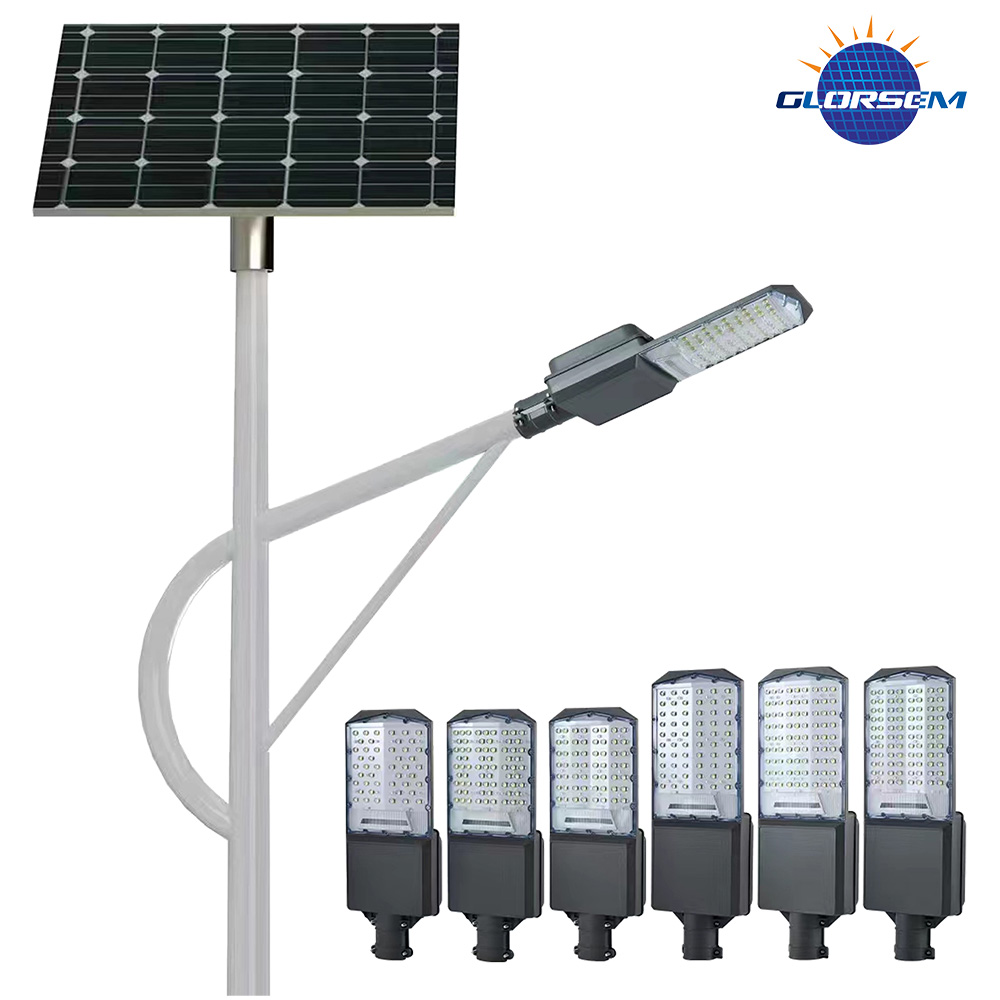

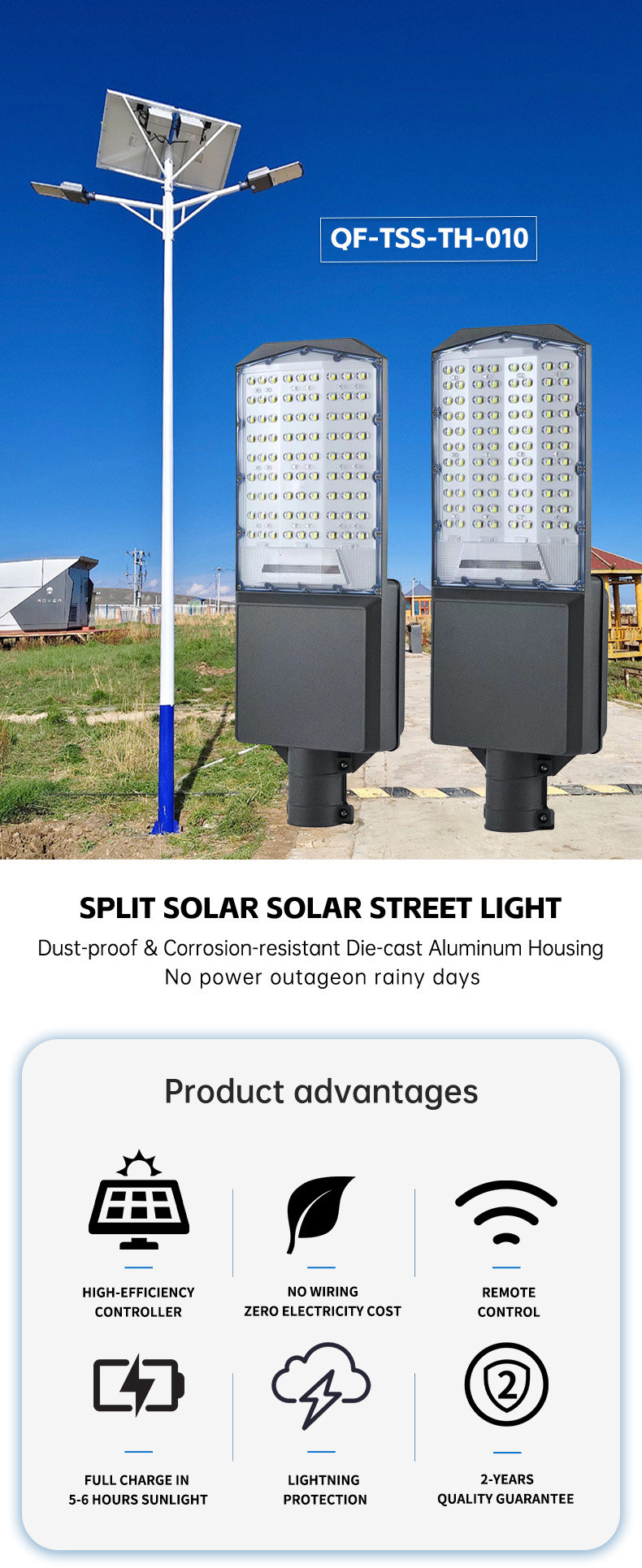

| Product Model | QF-TSS-TH-010 |
| Rated Power | 100W / 150W / 200W / 300W / 300W / 300W |

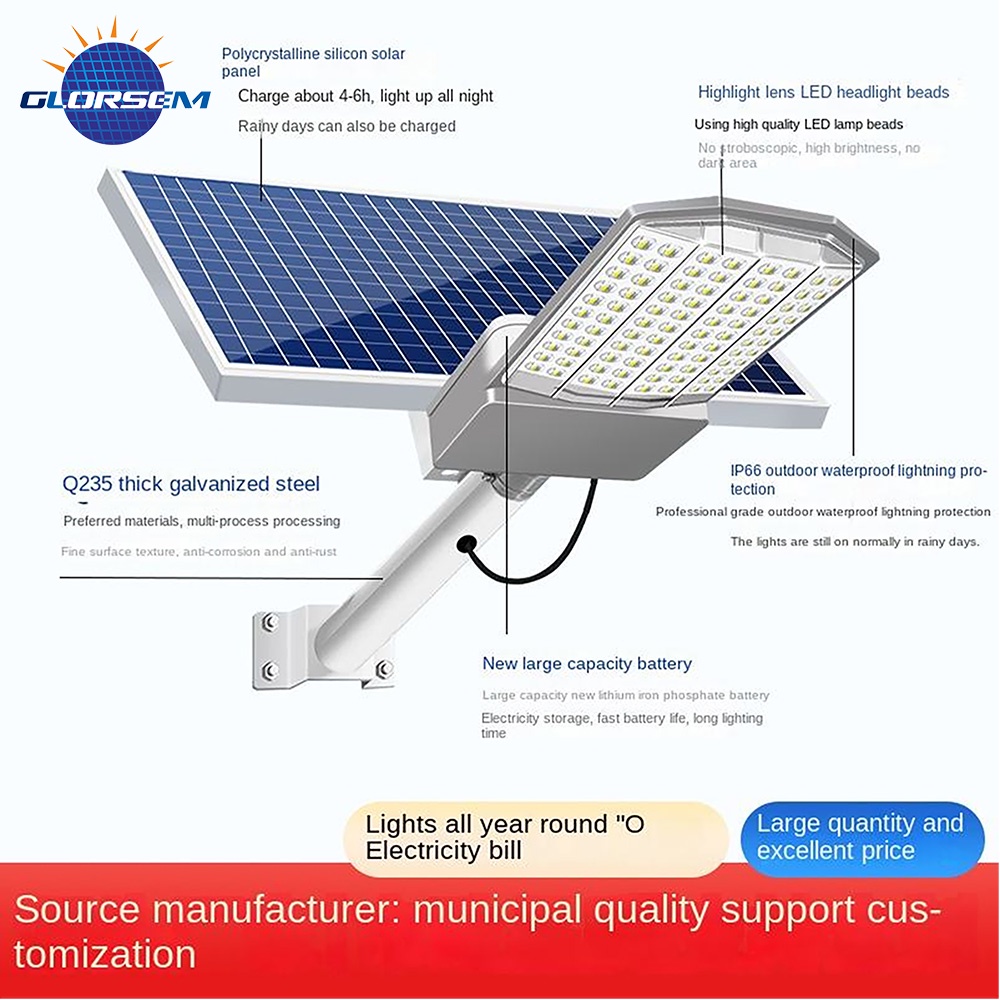

| PV Panel Specifications | 6V/15W / 6V/20W / 6V/25W / 6V/20W / 6V/30W / 6V/35W |
| Battery Specifications | 3.2V/12Ah / 3.2V/18Ah / 3.2V/20Ah / 3.2V/18Ah / 3.2V/24Ah / 3.2V/30Ah |
| Charge Time | 5~6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2 days of endurance/power reserve in overcast or rainy conditions |
| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |

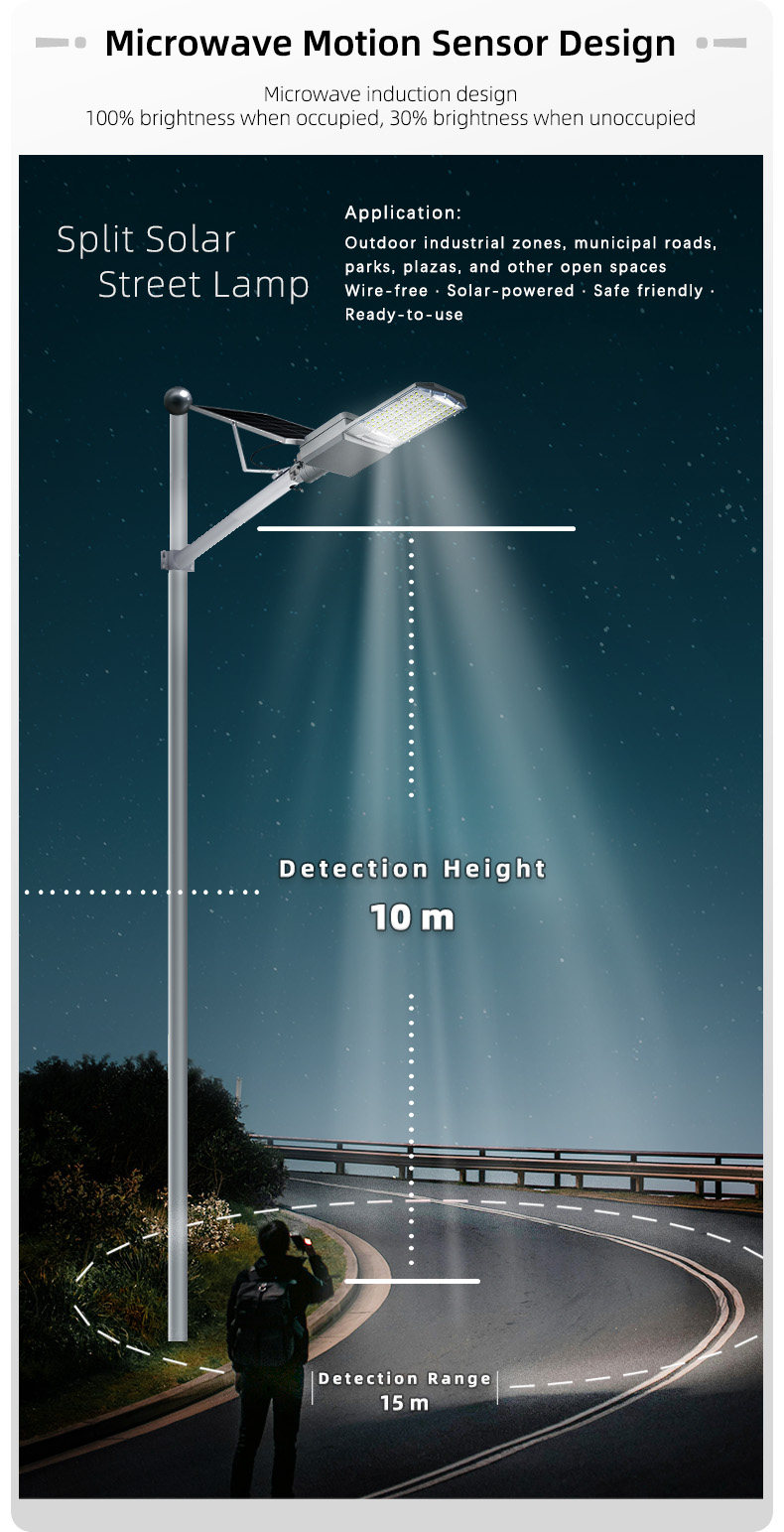

| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |
| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |

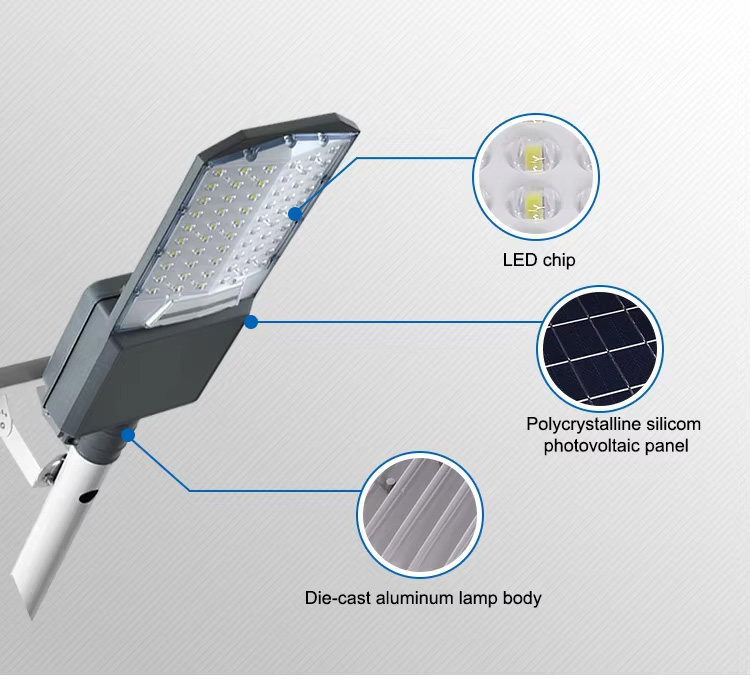

| Light/Electric Light Socket Type | SMD5054 |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |
| Reflector Angle | 70×140° |
| Lm/W | 150~180Lm/W |
| CRI | Ra:80±2 |
| Body Color | Sand Black |
| Working Temperature | -20℃ ~ +65℃ |
| Product Material | Aluminum + PC Lens |

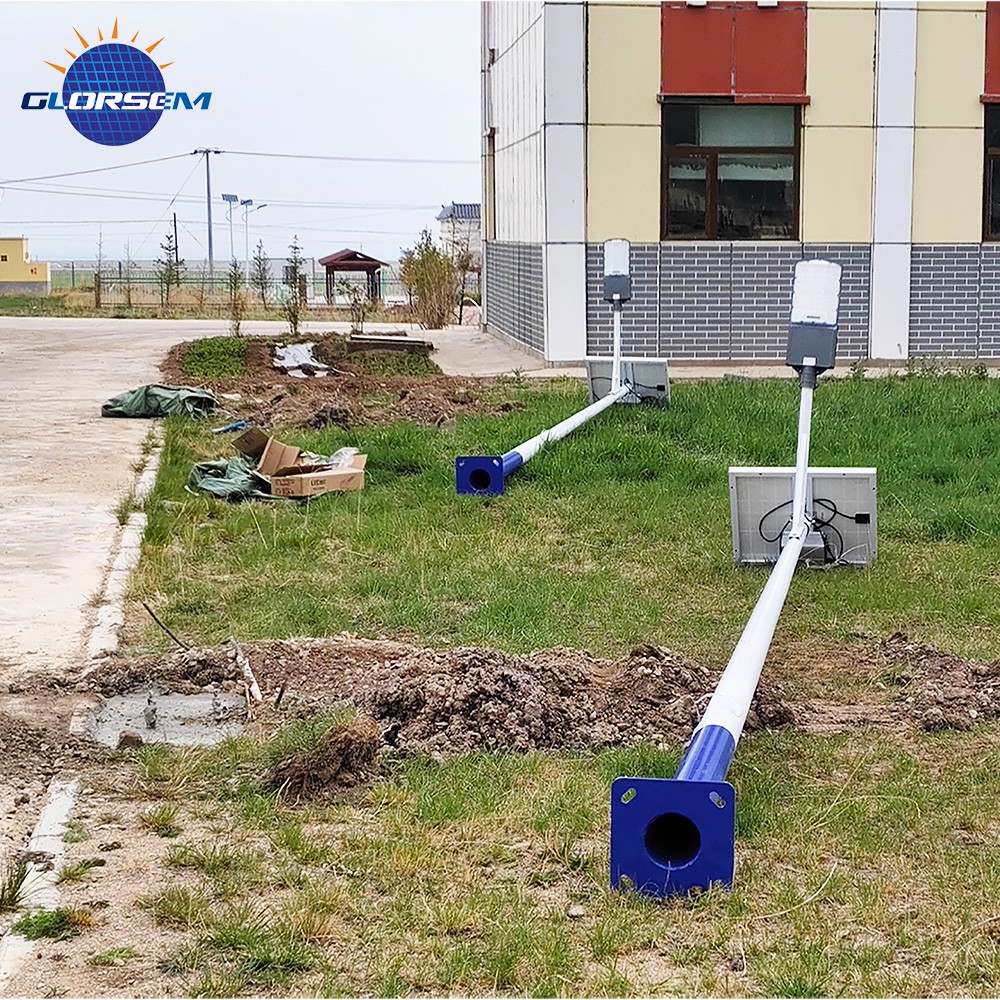

| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |

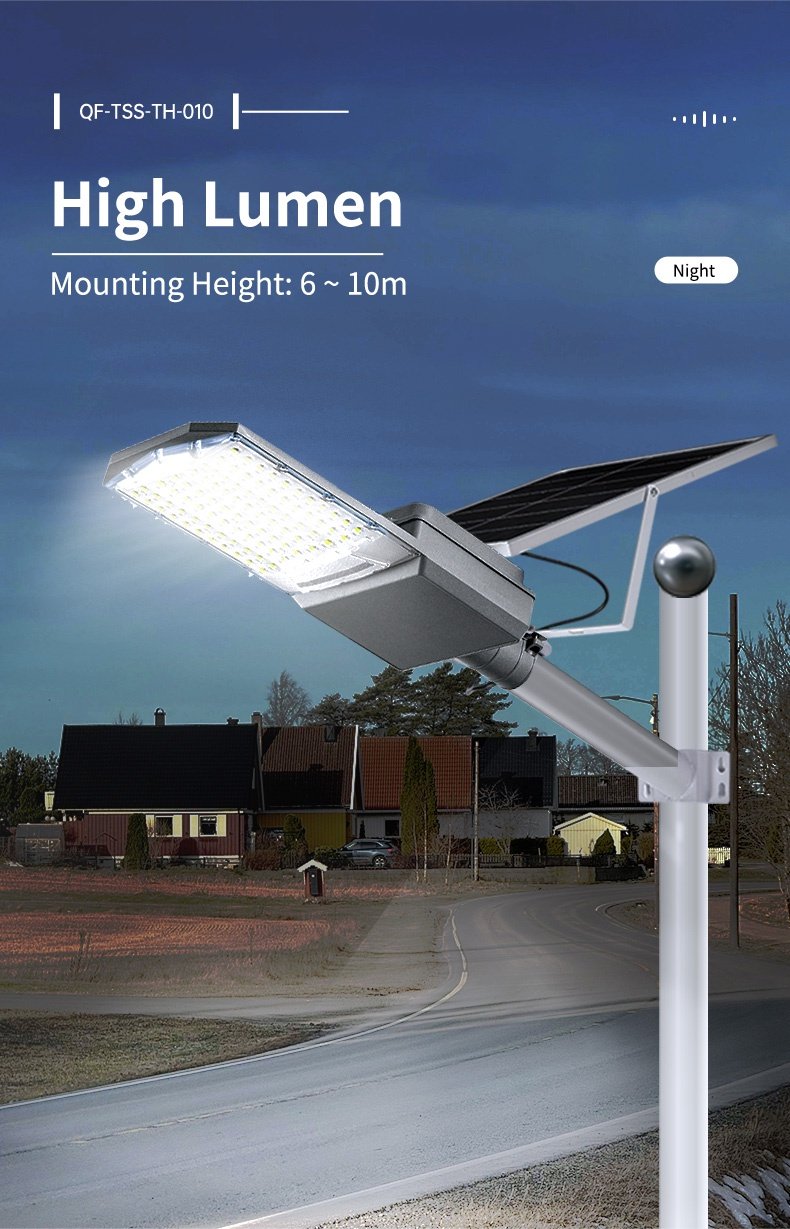

| Installation Height | 3~6m / 4~6m / 5~6m / 6~8m / 6~8m / 6~8m |
| Installation Spacing | 8~10m / 8~10m / 10~12m / 12~18m / 12~18m / 12~18m |

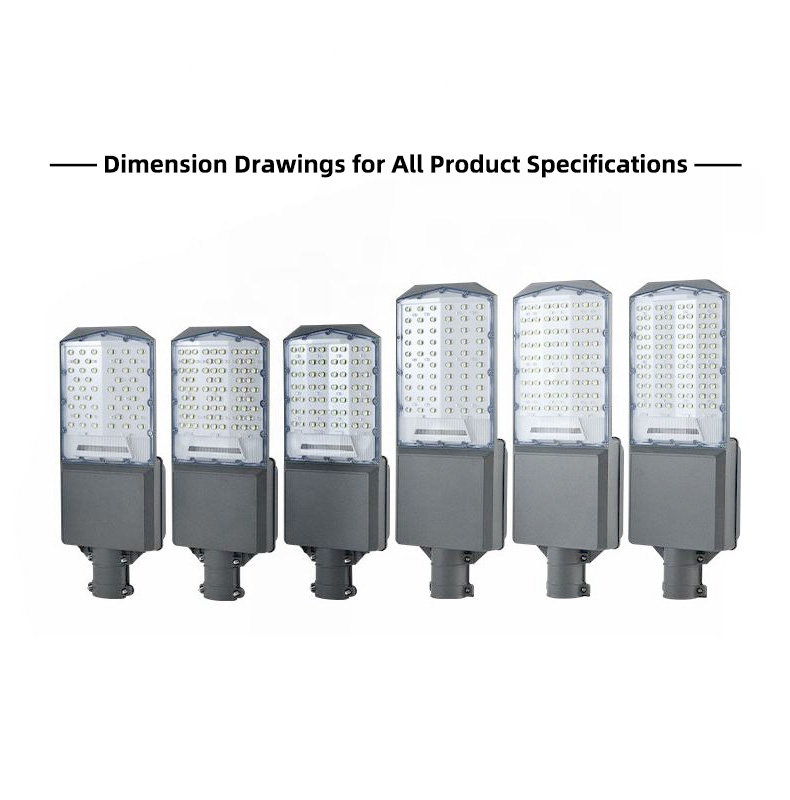

| Product Dimension | 51021580mm / 51021580mm / 51021580mm / 59022090mm / 59022090mm / 59022090mm |
