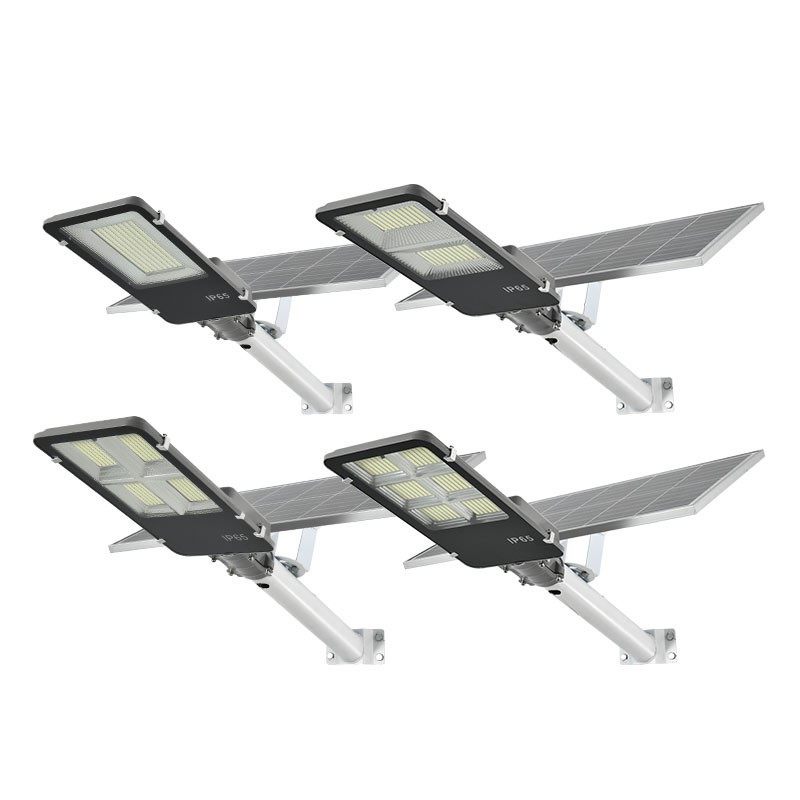

| Product Model | QF-TSS-YS-001 |
| Rated Power | 100W / 150W / 200W / 250W |
| PV Panel Specifications | Default-Customizable 350×290×1515×2.0-6V 6V/15W monocrystalline siliconDefault-Customizable 350×350×1515-6V/3.0 6V/20W monocrystalline siliconDefault-Customizable 350×350×1515-6V/3.0 6V/20W monocrystalline siliconDefault-Customizable 350×680×1515 6V/35W monocrystalline silicon |
| Battery Specifications | 3.2V/12Ah / 3.2V/14Ah / 3.2V/14Ah / 3.2V/35Ah |
| Charge Time | 5~6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2 days of endurance/power reserve in overcast or rainy conditions |

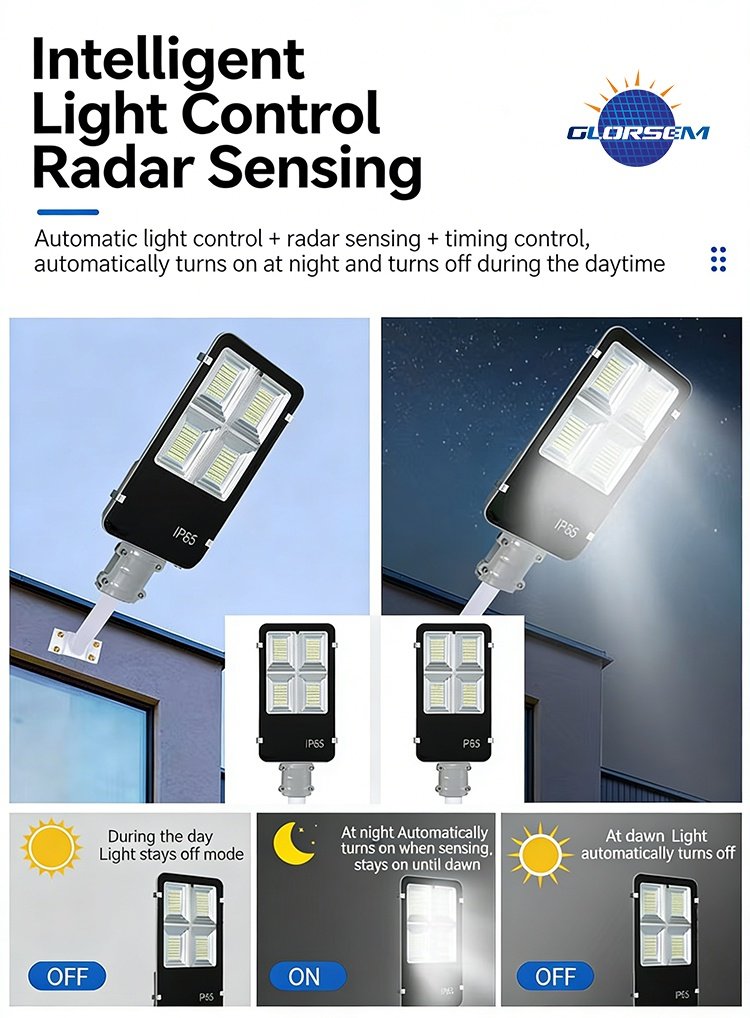

| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |
| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |

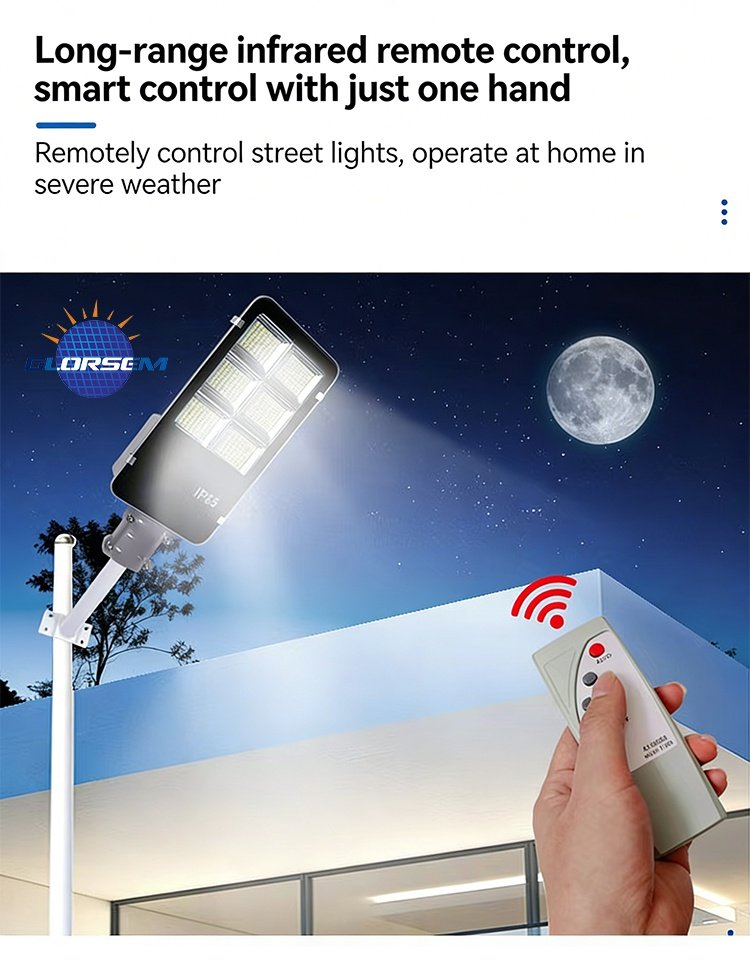

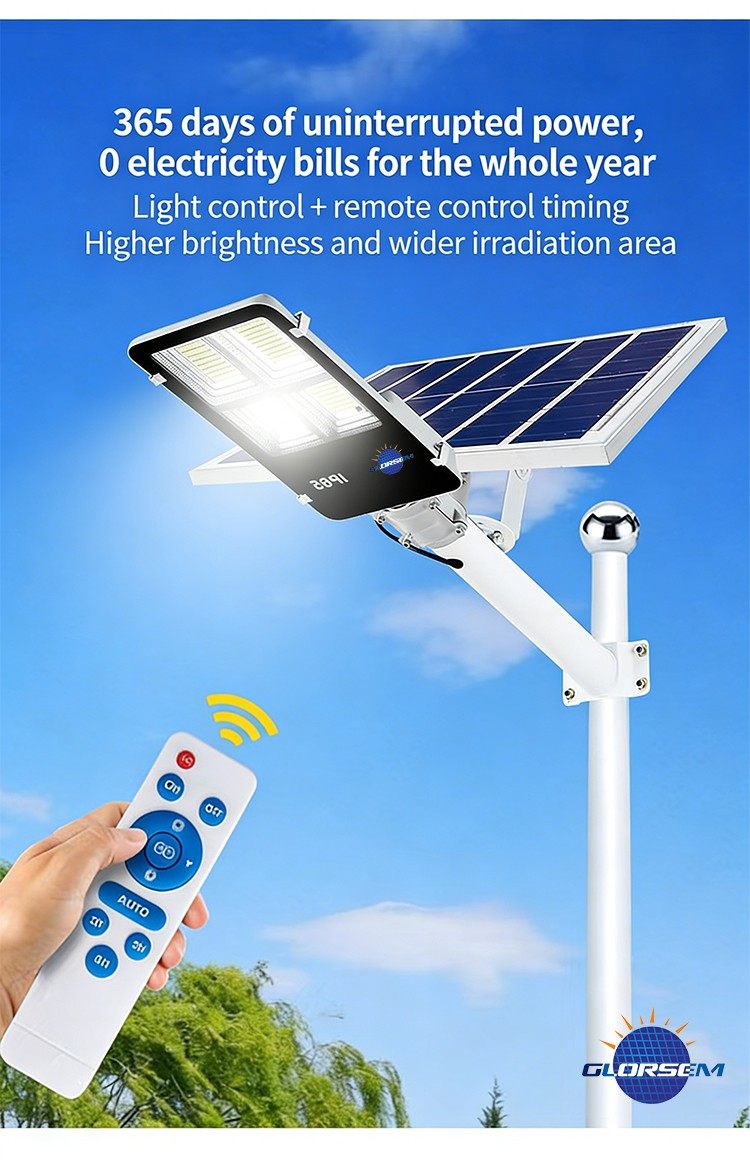

| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |

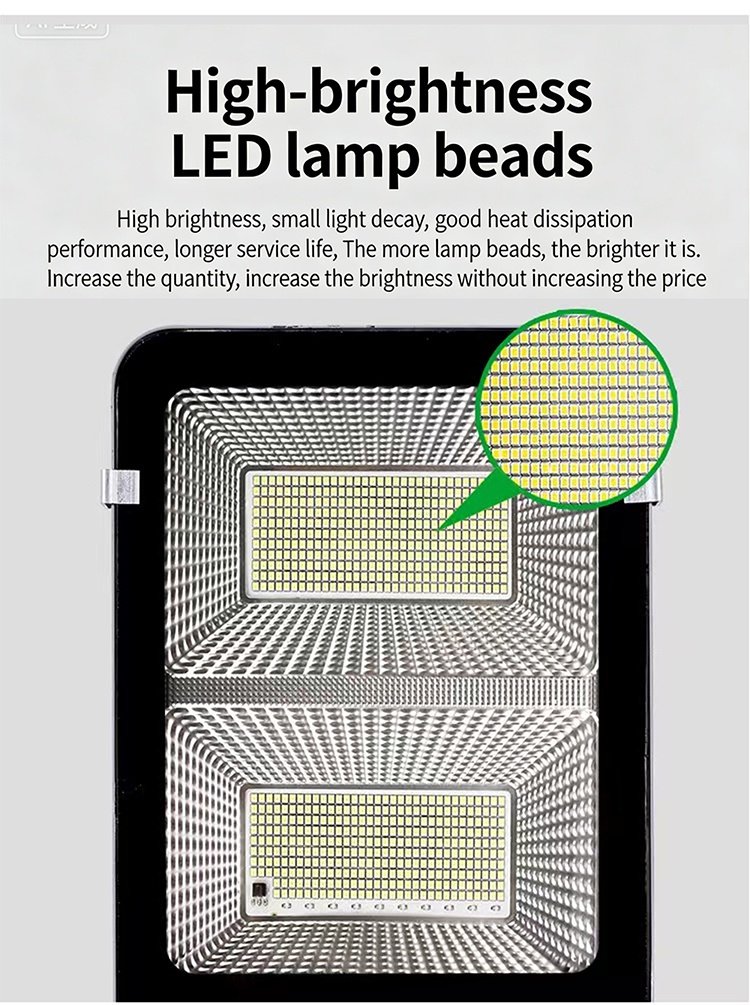

| Light Bead Types | SMD LED5730-206PCS / SMD LED5730-327PCS / SMD LED5730-393PCS / SMD LED5054 |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |
| Reflector Angle | 70×140° |
| Luminous Efficacy | 60~65Lm/W / 130~150Lm/W |
| Color Render Index | Ra:70 |
| Main Color | Gray; Black |
| Working Temperature | -20℃ ~ +65℃ |

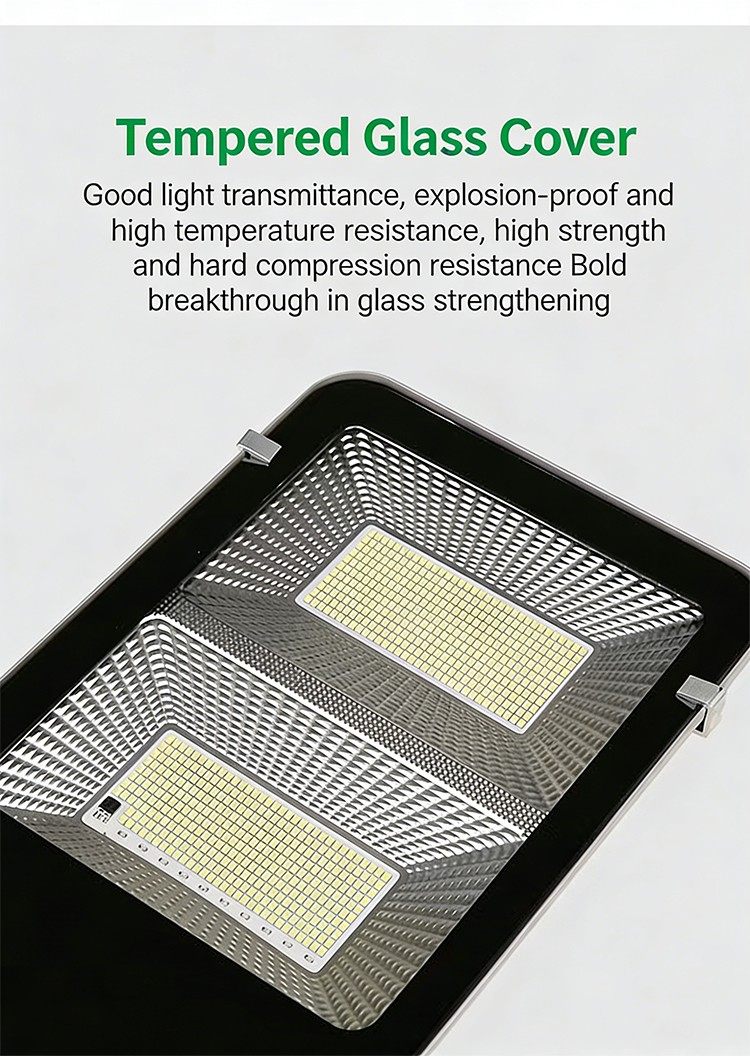

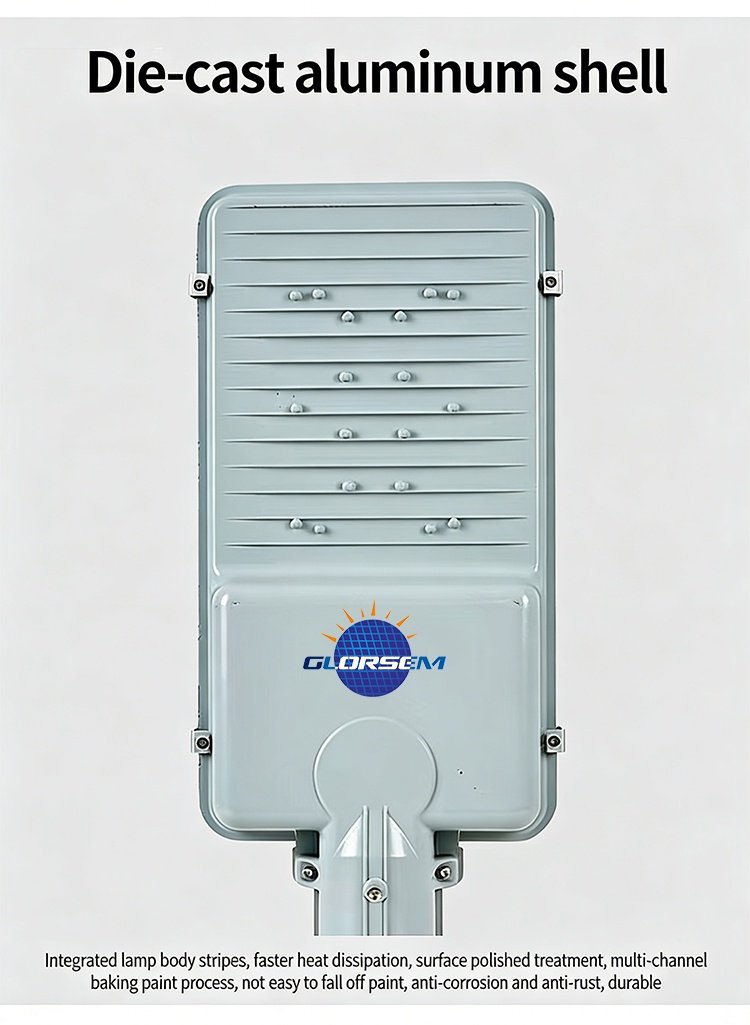

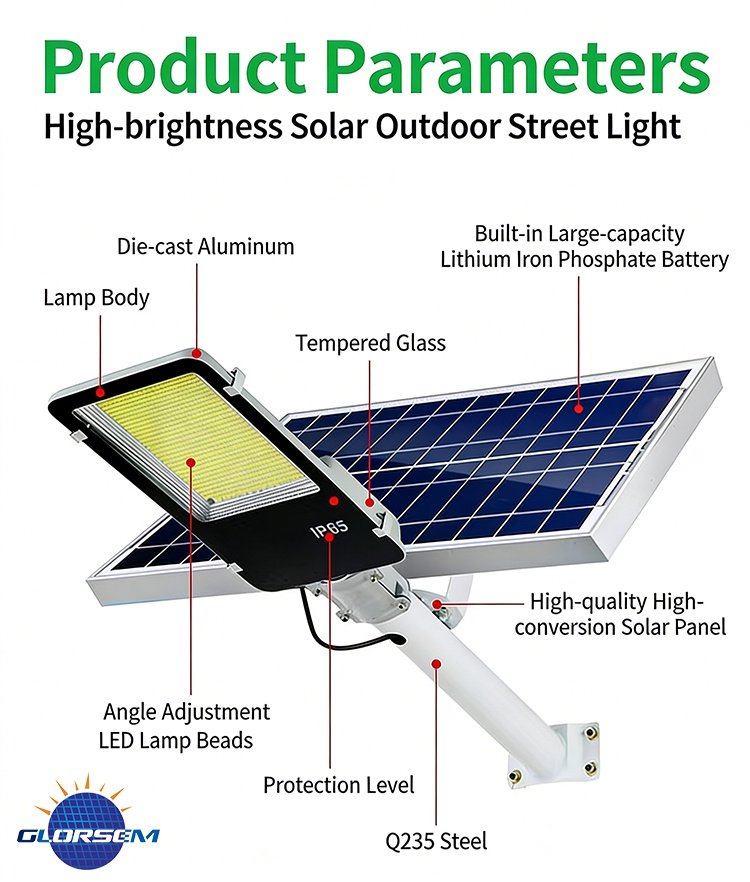

| Product Material | Aluminum + PC Lens + Glass Cover |
| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |
| Installation Height | 3~4m / 4~5m / 5~6m / 6~8m |
| Installation Spacing | 6~8m / 6~8m / 8~10m / 10~12m |
| Product Dimension | 495×210×50mm |
| Product Net Weight | N/A |
| Package Dimension | 1PCS/CTN L600×W380×H145mm H636H kraft cardboard1PCS/CTN L600×W380×H145mm H637H kraft cardboard1PCS/CTN L600×W380×H145mm H639H kraft cardboard1PCS/CTN L680×W400×H140mm kraft cardboard |
