| Product Model | QF-TSS-YW-018 |
| Rated Power | 100W / 200W |

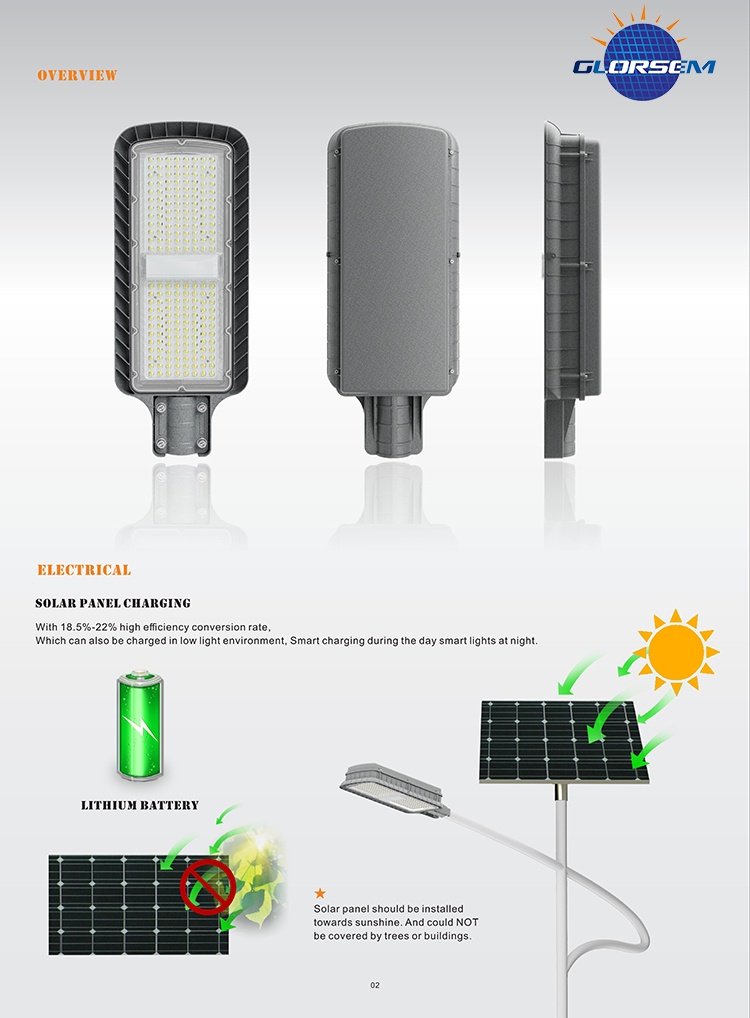

| PV Panel Specifications | Default-Customizable 760×1160×25mm-18V-3.0 monocrystalline silicon |
| Battery Specifications | 12.8V/30Ah / 12.8V/45Ah |
| Charge Time | 6 Hours in scenarios with sufficient sunlight |
| Lighting Duration | 2~3 Days of endurance/power reserve in overcast or rainy conditions |
| Working Mode | Constant-On Mode: 100% Brightness; Motion-Sensing Mode: 30% Brightness, Triggering 100% Brightness Upon Detection |
| Sensor | Optional Radar Sensor; Optional Microwave Sensor; Optional Passive Infrared Sensor |
| Control Functions | Light Sensor; Time Control; Sensor Control; Optional Remote Control |
| Light Bead/Light Socket Types | 5050:20B5C/100B1C 100-bead 5050 integrated board / 5050:40B5C/200B1C 200-bead 5050 integrated board |
| Lamp Color Temperature | Default: 6500K; Customizable color temperature |

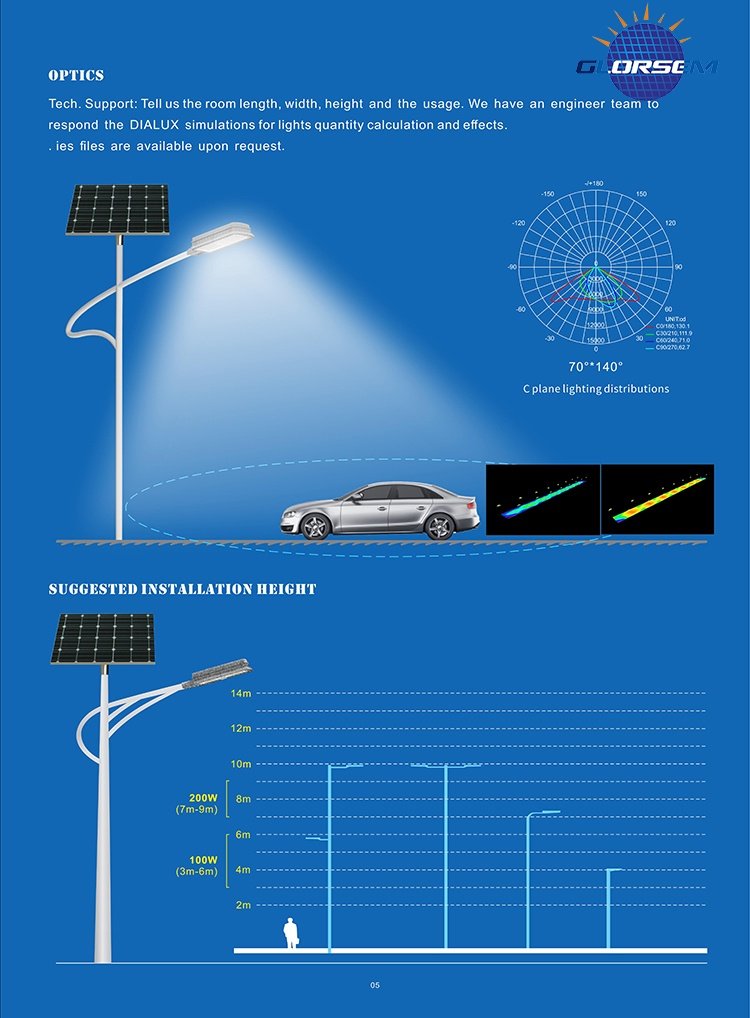

| Reflector Angle | 70×140° |
| Luminous Efficacy | 210-230LM/W |
| Color Render Index | Ra:70 |
| Main Color | Sand Black |
| Working Temperature | -20℃ ~ +65℃ |

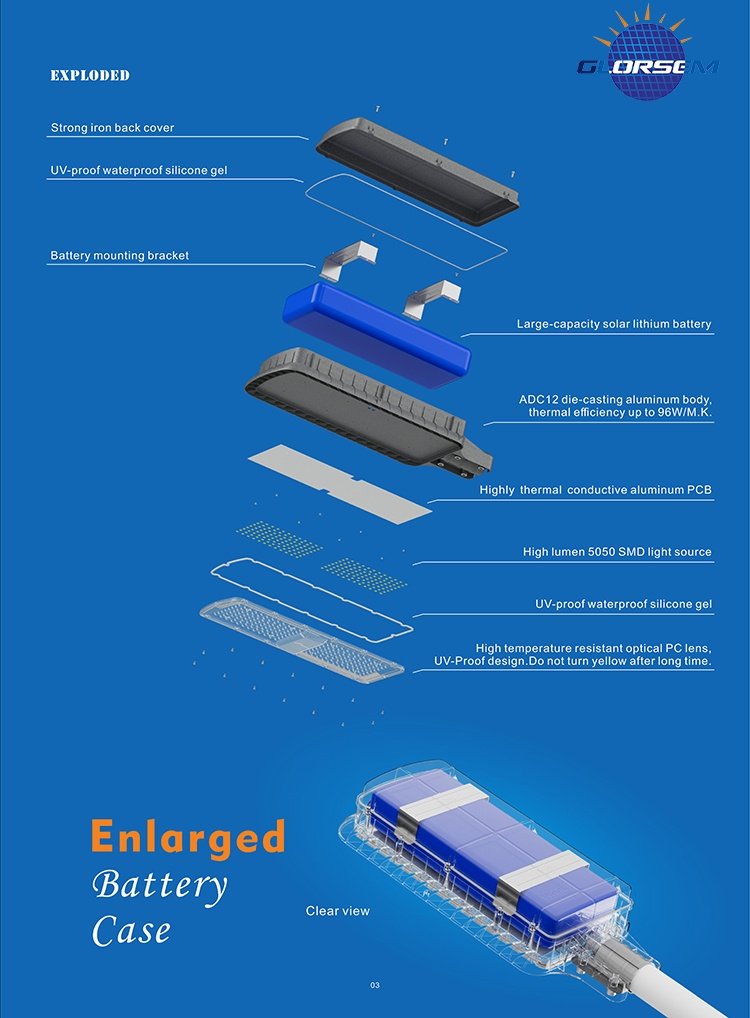

| Product Material | Aluminum + PC lens |

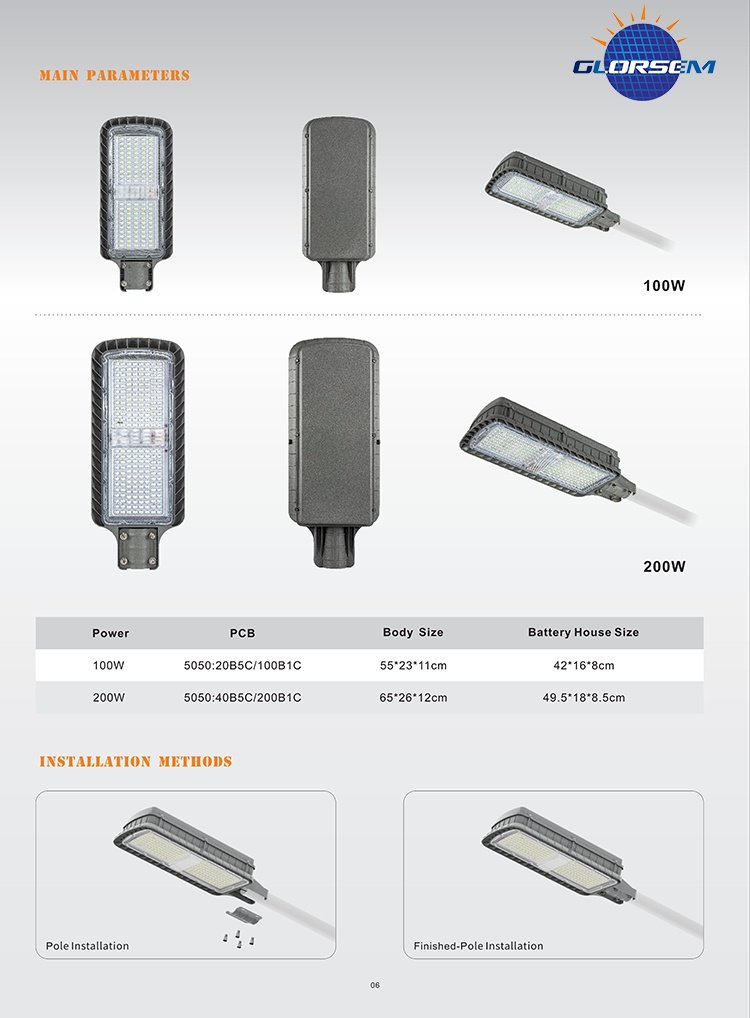

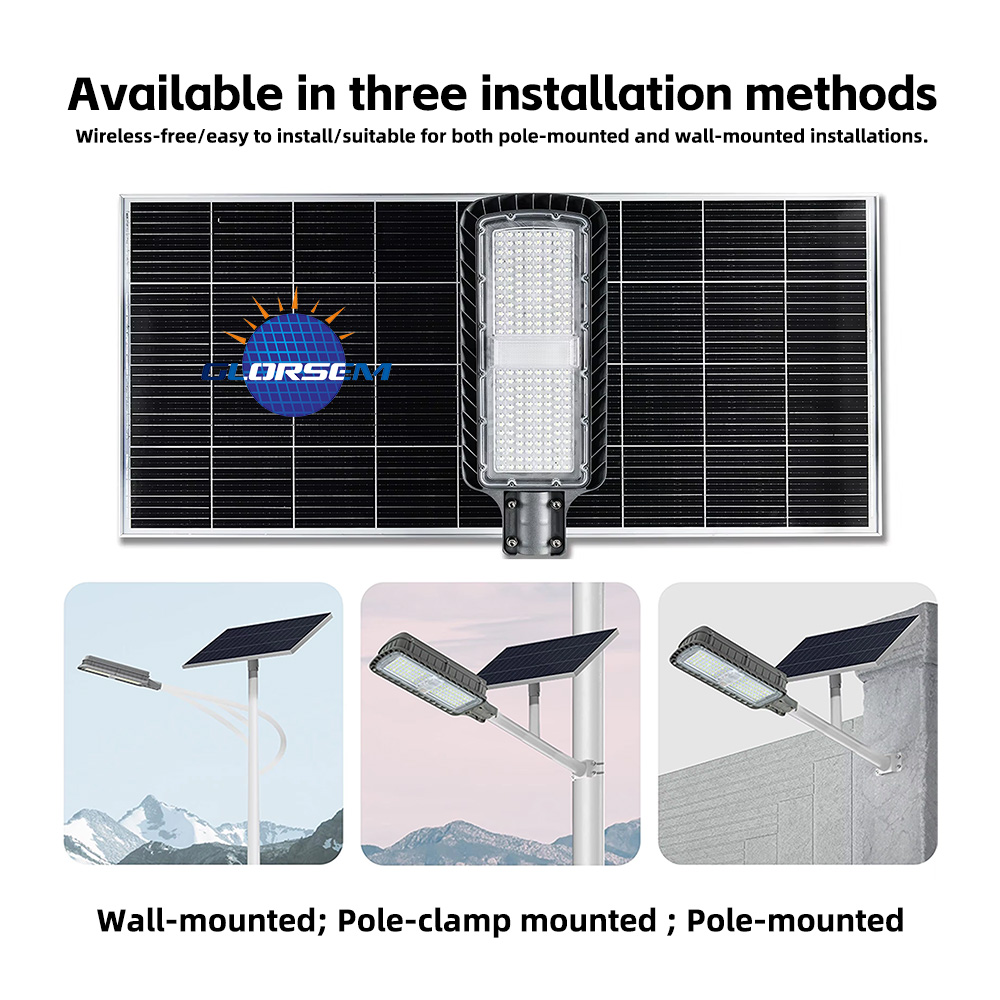

| Installation Method | Wall-mounted; Pole-clamp mounted; Pole-mounted |
| Nominal Diameter | Φ60mm; Customizable |
| Installation Height | 7~9m / 8~10m |
| Installation Spacing | 15~20m |

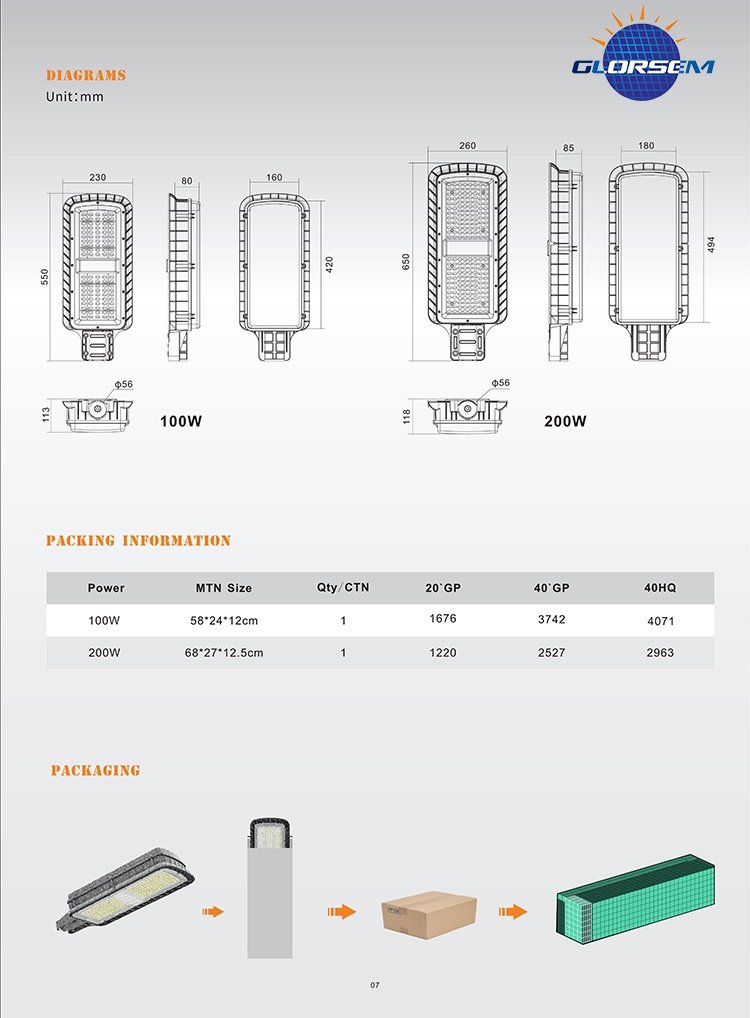

| Product Dimension | 550230110mm / 650260120mm |
| Product Net Weight | N/A |
| Package Dimension | N/A / 2PCS/CTN L1175W75H775mm/H636H |
