FL03-Series
Perfect Thermal Management For Long-term Performance

Up to 170lm/W

FL03 Series is cost-effective LED Flood Light with combination of high performance, offering 160lm high lumen output with Asymmetric & Symmetric optics.

Color-Temperature

Up to 170lm/W

FL03 Series is cost-effective LED Flood Light with combination of high performance, offering 160lm high lumen output with Asymmetric & Symmetric optics.

Color-Temperature

Multi-angle Display



Choose a 120°, 90°, 60°, 30° or TYPE2 lens.

Directional-Lighting

Anti-Glare Reflector



Use this reflector to reduce glare from UFO LED High-Bay Light and to create a traditional high-bay look. The reflector installs around the fixture's lens and comes with 4 screws to secure it in place.

Product Features

Brackets

Bracket Mounting Options

Mounting bar

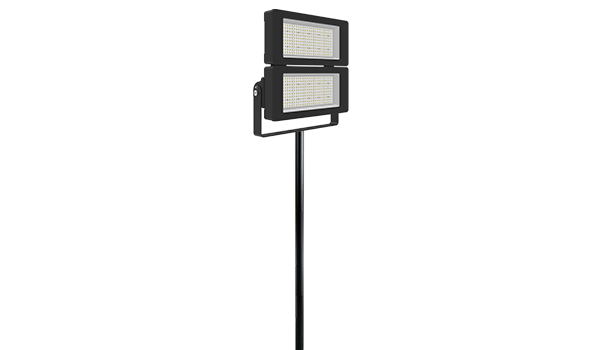

Pole Mount Options

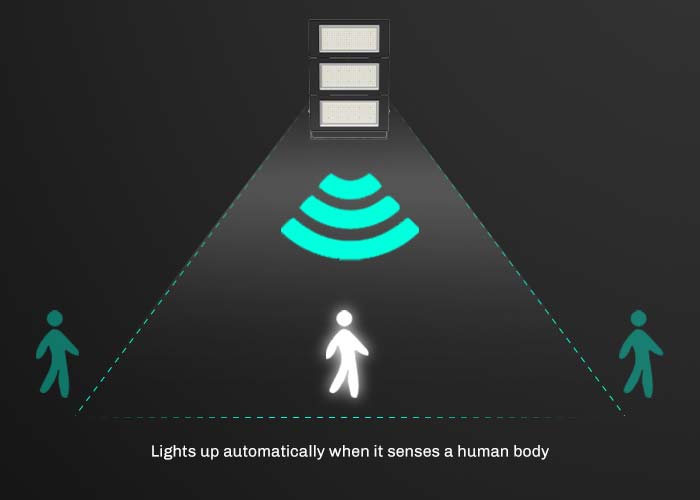

Motion sensors options

Applications like warehouses, distribution centers,production facilities and other industrial spaces with occupancy less than 50% and high ceilings (15 – 45 ft) are ideal environment for sensors. sensors help in save energy costs by delivering light only where you need it, when you need it.

High-Lumen-Output

Detail Parameters

Series

FL03-Series

Power

100W, 120W, 200W, 240W, 300W

Efficacy

160lm/W, 150lm/W

LED Driver

Sosen, Philips, ZHPOWER

CCT

3000K-6500K

Beam Angle

30, 60, 90, 120, TYPE2 Degree

CRI

80, 70

Operating Temperature

-30°C to + 45°C

Mounting Option

Bracket Mounting

IP/IK Rating

IP65, IK08

Warranty

5 Year Warranty
